Assembly

B2-97prose procedure
Continued from B2-96

Oil Pump (continued)

  1. 4
    Remove any dirt or other material from the contact surfaces.
  2. 5
    Apply a continuous bead of silicone sealant to the contact surface of the oil pump.
    Line drawing of the oil pump body showing the new O-ring location and the continuous bead of silicone sealant applied to the contact surface. Callouts: O-RING, NEW and SEALANT.
  3. 6
    Apply clean engine oil to a new O-ring and install it into the pump body.
    Keep the oil hole free of sealant to prevent engine damage.
  4. 7
    Apply clean engine oil to the oil seal lip.
  5. 8
    Install the oil pump within five minutes of applying the sealant, making sure that the O-ring does not come out.

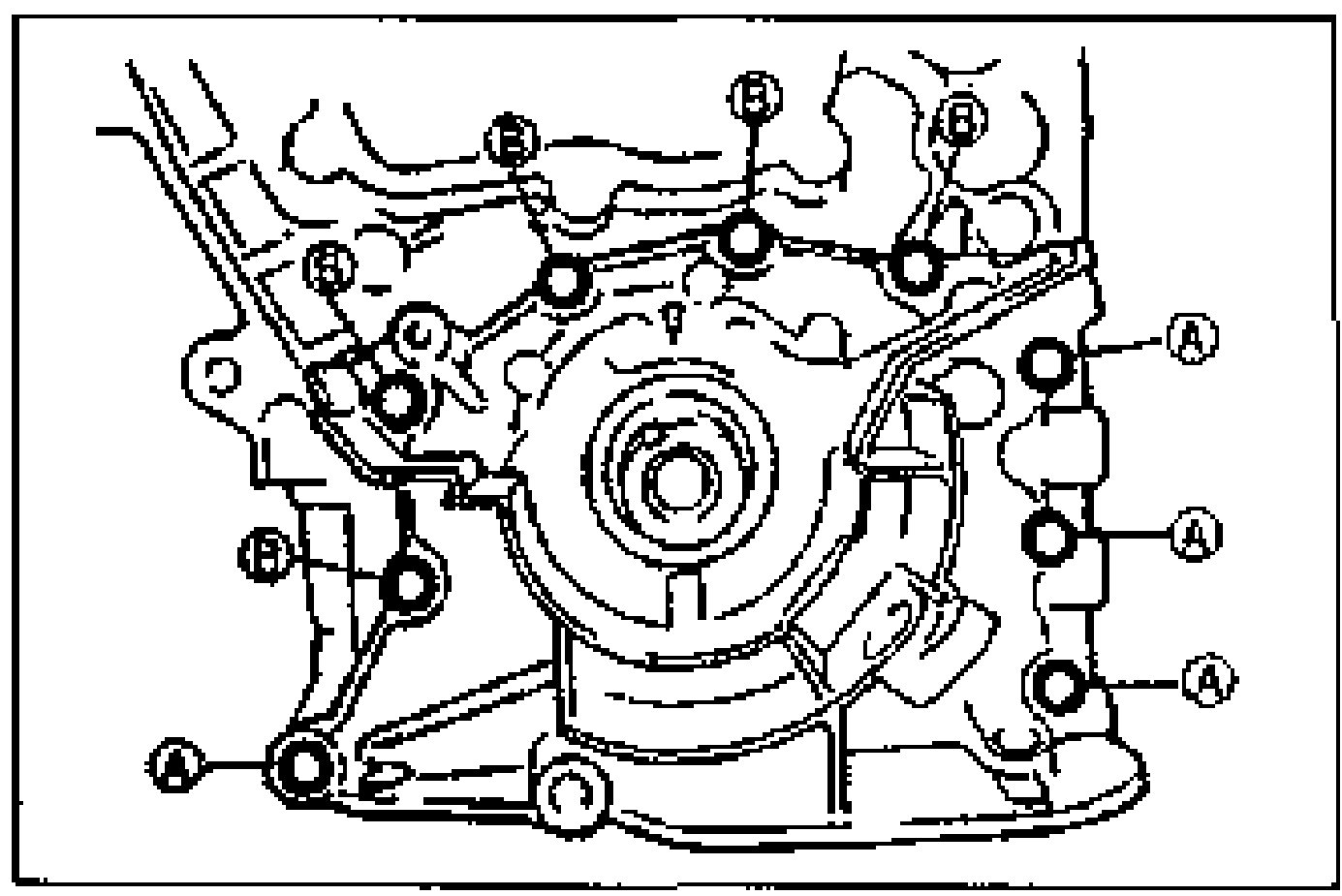

    Line drawing of the oil pump mounted on the cylinder block with bolt positions labeled A (40mm) and B (25mm) indicating the different bolt lengths.
  6. 9
    Cut away the portion of the silicone sealant that projects toward the oil pan.
oil pump
19 - 25N·m
Bolt A
40mm {1.57 in}
Bolt B
25mm {0.98 in}

Water Pump

  1. 1
    Remove all dirt, grease, and other material from the water pump mounting surface.
  2. 2
    Install a new rubber gasket and the water pump.
    Line drawing of the water pump area showing the sealant bead path around the mounting surface with arrows indicating direction of application.
water pump
19 - 25N·m

Oil baffle

  1. 1
    Remove any dirt or other material from the oil baffle.
  2. 2
    Install the oil baffle.
    Line drawing of the oil baffle installed on the cylinder block / lower block.
oil baffle
19 - 25N·m

Oil Strainer

  1. 1
    Install a new gasket and the oil strainer onto the oil pump body.
    Line drawing of the oil strainer installed onto the oil pump body, with bolt positions labeled A and B for the tightening order.
  2. 2
    Tighten bolts A, then tighten bolts B.
oil strainer
7.9 - 10.7N·m
