INSPECTION / REPAIR
B2-80prose procedureCamshaft cap removal / oil clearance

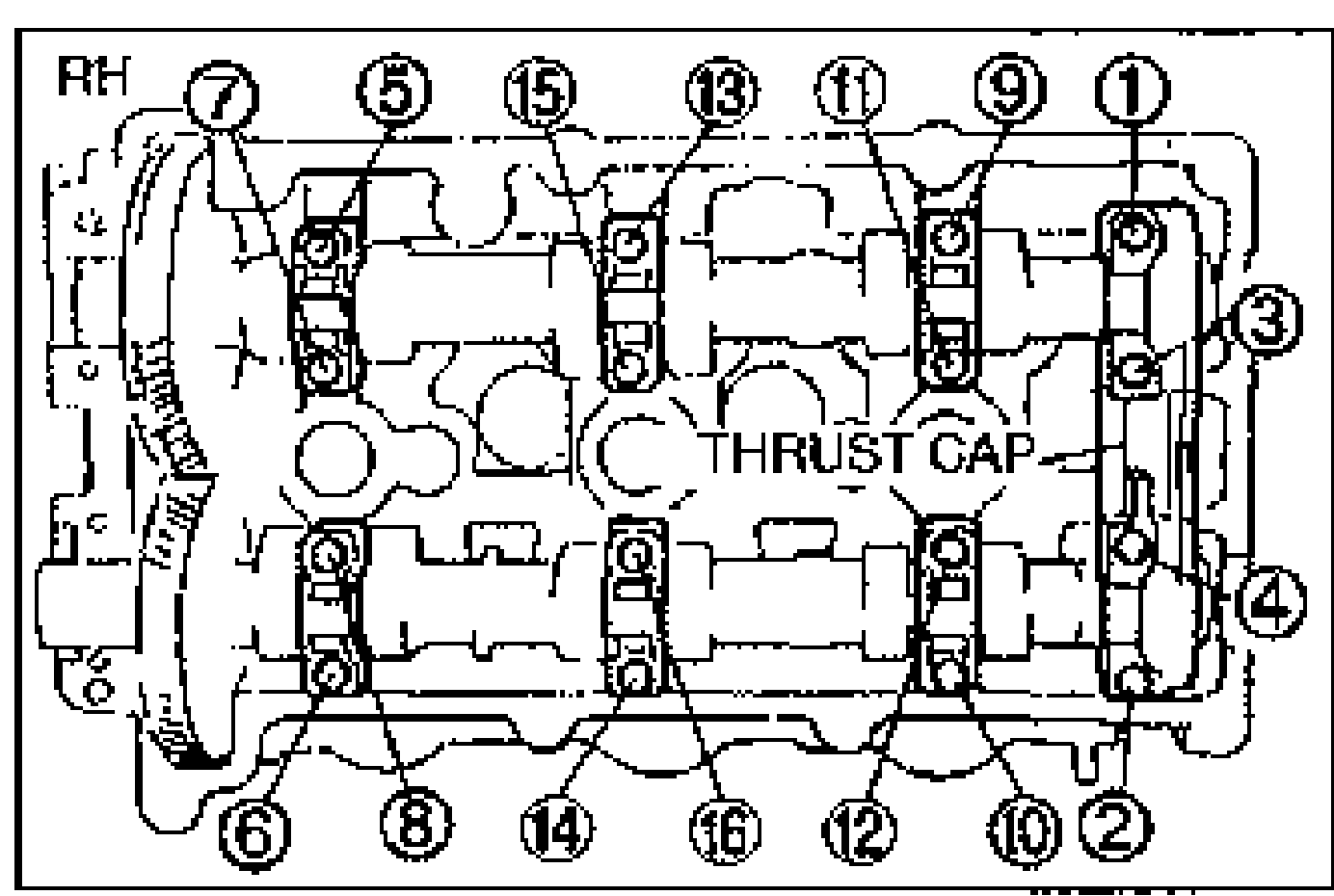

- 10Loosen the camshaft cap bolts in five or six steps in the order shown.
- 11Measure the oil clearance.
- 12If the oil clearance exceeds the maximum, replace the camshaft or the cylinder head.
| Specification | Value |
|---|---|
| Oil clearance No.1, No.5 | 0.040–0.081 mm {0.0016–0.0031 in} |
| Oil clearance No.2–No.4 | 0.070–0.111 mm {0.0028–0.0043 in} |
| Maximum No.1, No.5 | 0.120 mm {0.0047 in} |
| Maximum No.2–No.4 | 0.150 mm {0.0059 in} |
Oil clearance No.1, No.5
0.040–0.081 mm {0.0016–0.0031 in}
Oil clearance No.2–No.4
0.070–0.111 mm {0.0028–0.0043 in}
Maximum No.1, No.5
0.120 mm {0.0047 in}
Maximum No.2–No.4
0.150 mm {0.0059 in}
Camshaft end play
- 10Measure the camshaft end play. If it exceeds the maximum, replace the camshaft or the cylinder head.
| Specification | Value |
|---|---|
| End play | 0.05–0.10 mm {0.0020–0.0039 in} |
| Maximum | 0.14 mm {0.0055 in} |
End play
0.05–0.10 mm {0.0020–0.0039 in}
Maximum
0.14 mm {0.0055 in}
HLA
HLA inspection
- 1With the HLA filled with engine oil, hold (A) and press (B) by hand. If (B) moves, replace the HLA—do not attempt to repair it.
