ON-VEHICLE MAINTENANCE — Hoses

B2-35component photo
Continued from B2-34

Hoses

Connect the hoses shown.
Component LocationFig. fig1

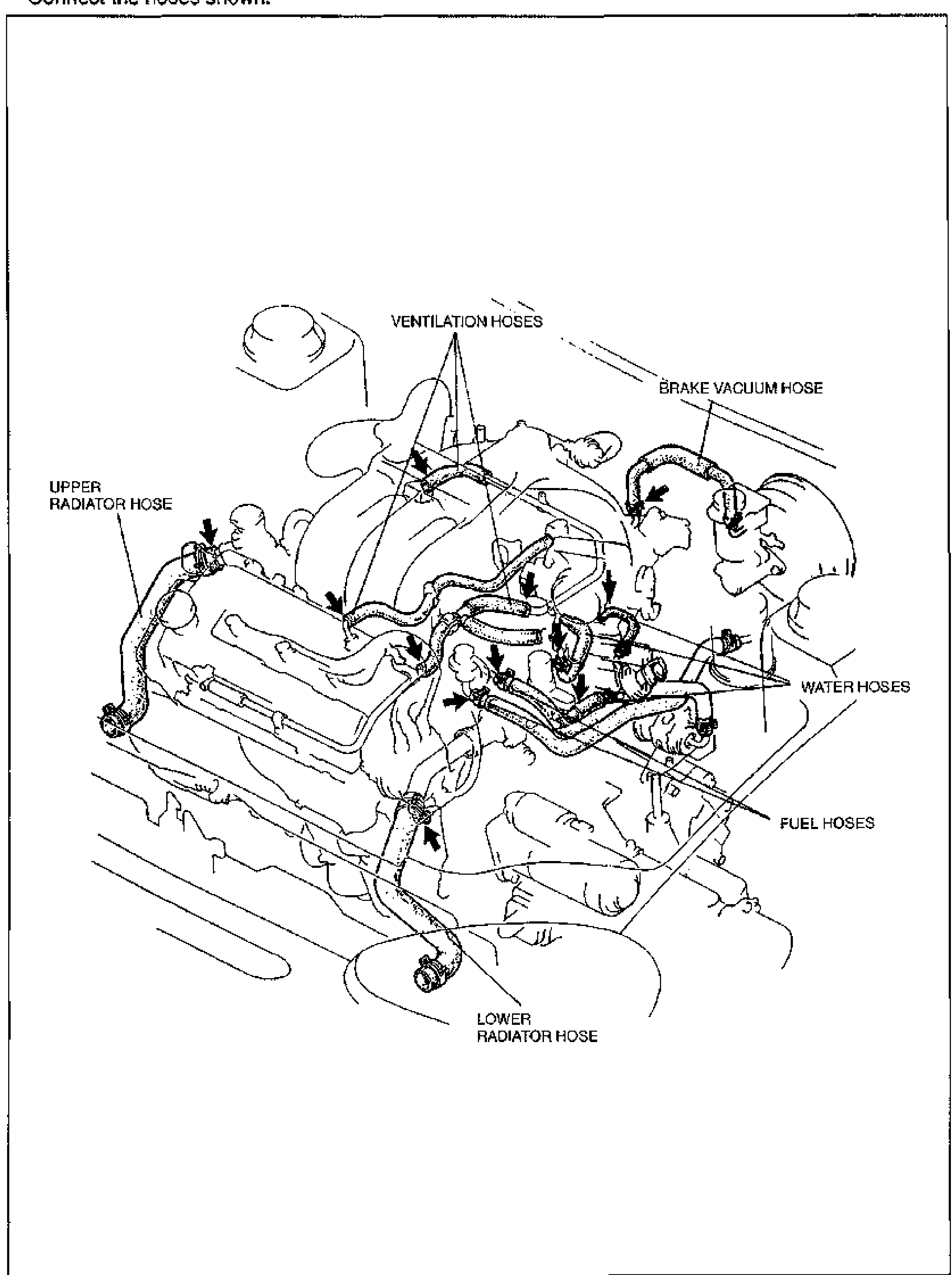

Engine-bay hose routing for the V6 engine showing connection points for ventilation hoses, brake vacuum hose, upper and lower radiator hoses, water hoses, and fuel hoses.

Large engine-bay hose routing diagram for the V6 engine. Arrows point to each hose connection. Labeled hoses: VENTILATION HOSES (top center), BRAKE VACUUM HOSE (top right), UPPER RADIATOR HOSE (left), LOWER RADIATOR HOSE (bottom center), WATER HOSES (right), FUEL HOSES (right). Shows where each hose connects on the engine.
1Ventilation hoses(top center of engine)
2Brake vacuum hose(upper right)
3Upper radiator hose(left side)
4Lower radiator hose(bottom center)
5Water hoses(right side)
6Fuel hoses(lower right)
