ASSEMBLY — TIMING BELT Torque Specification / Timing Belt Pulley
B2-107parts diagramK8-ZE V6 — MTX (manual) uses flywheel, ATX (automatic) uses drive plate.
TIMING BELT — Torque Specification
| Specification | Value |
|---|---|
| Bracket bolt | 19 - 25N·m |
| Bracket bolt | 44 - 60N·m |
| Tensioner / idler pulley bolt | 38 - 44N·m |
| Idler pulley bolt | 38 - 51N·m |
| Timing belt cover bolt | 7.9 - 10.7N·m |
| Crankshaft (timing belt) pulley boltApply oil to bolt threads (SST) | 157 - 166N·m |
Bracket bolt
19 - 25N·m
Bracket bolt
44 - 60N·m
Tensioner / idler pulley bolt
38 - 44N·m
Idler pulley bolt
38 - 51N·m
Timing belt cover bolt
7.9 - 10.7N·m
Crankshaft (timing belt) pulley boltApply oil to bolt threads (SST)
157 - 166N·m
Timing Belt Pulley

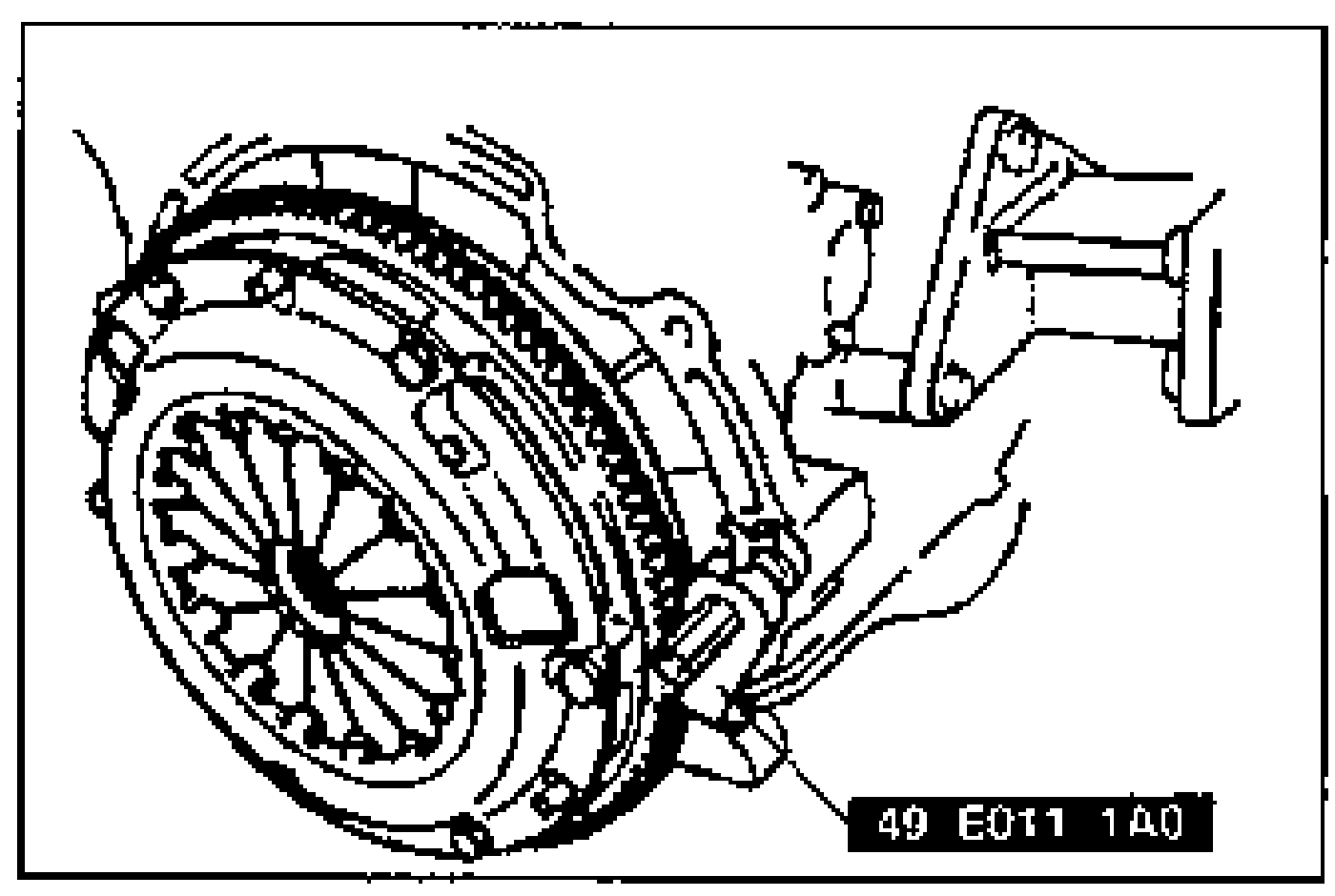

- 1Hold the flywheel (MTX) or drive plate (ATX) by using the SST.
- 2Install the crankshaft key and the timing belt pulley on the crankshaft.
- 3Temporarily tighten the timing belt pulley bolt.
