Assembly
B2-92prose procedure| Specification | Value |
|---|---|
| Main journal diameter Standard | 61.938-61.955mm {2.4385-2.4391 in} |
| Main journal diameter 0.25mm {0.01 in} undersize | 61.688-61.705mm {2.4287-2.4293 in} |
Main journal diameter Standard
61.938-61.955mm {2.4385-2.4391 in}
Main journal diameter 0.25mm {0.01 in} undersize
61.688-61.705mm {2.4287-2.4293 in}
Lower cylinder block

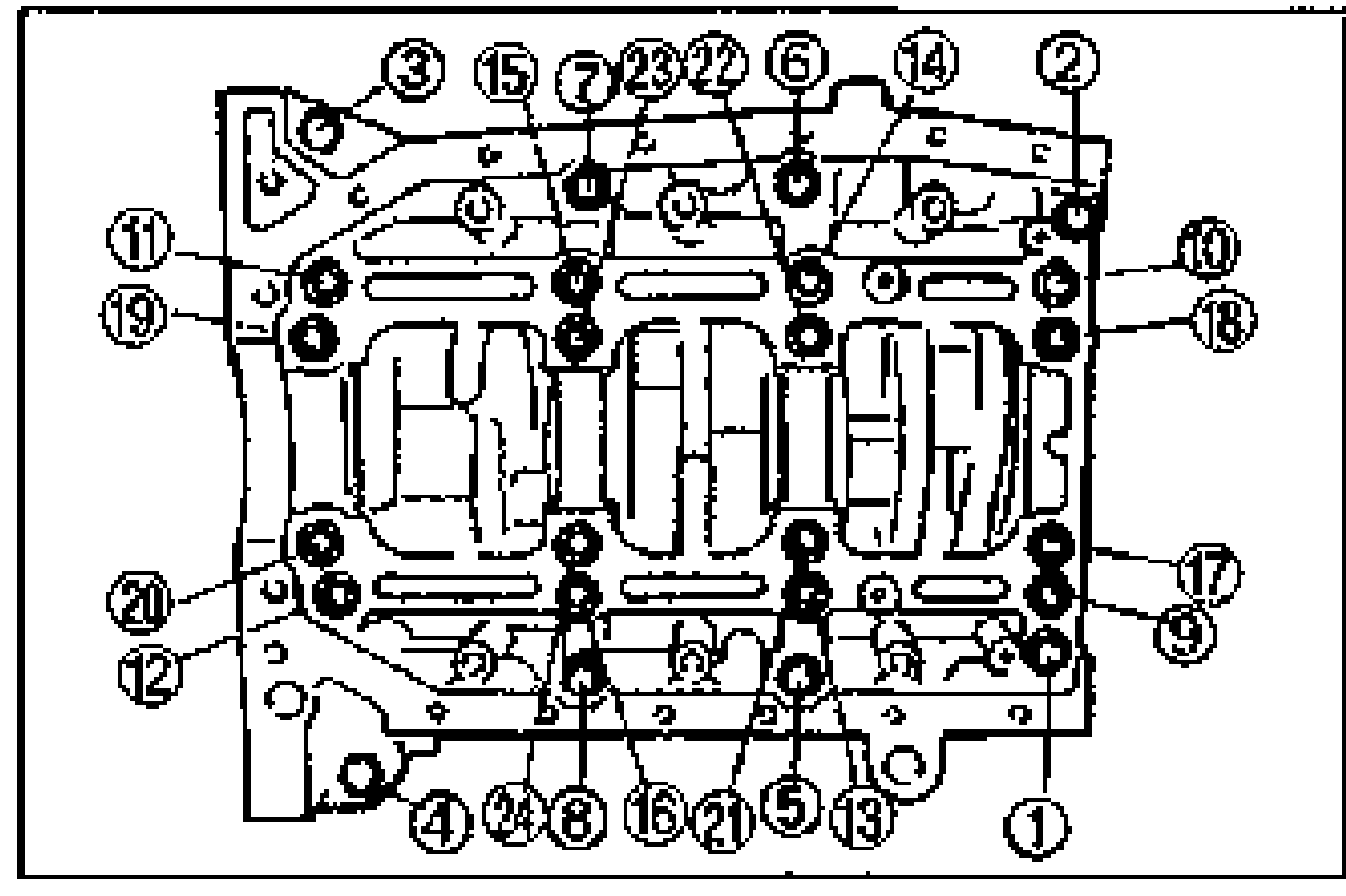

- 14Loosen the lower cylinder block bolts in two or three steps in the order shown.
Install the lower cylinder block as follows
- 1Install the upper thrust bearings in the upper cylinder block.
- 2Apply clean engine oil to the main bearings, thrust bearings, and main journals.
- 3Install the crankshaft in the upper cylinder block.
- 4Remove any foreign material, oil, and sealant from the contact surfaces of the upper cylinder block and lower cylinder block.
- 5Apply a continuous bead of silicone sealant to the contact surface as shown.
- 6Install the lower cylinder block, lower main bearings, and lower thrust bearings within five minutes of applying the silicone sealant.
- 7Install the lower cylinder block along with the lower main bearings and lower thrust bearings.
- 8Apply clean engine oil to the threads and seat faces of the bearing cap bolts.
- 9Tighten the main bolts A, B and sub bolts C as in step 1-(6) through 1-(10).

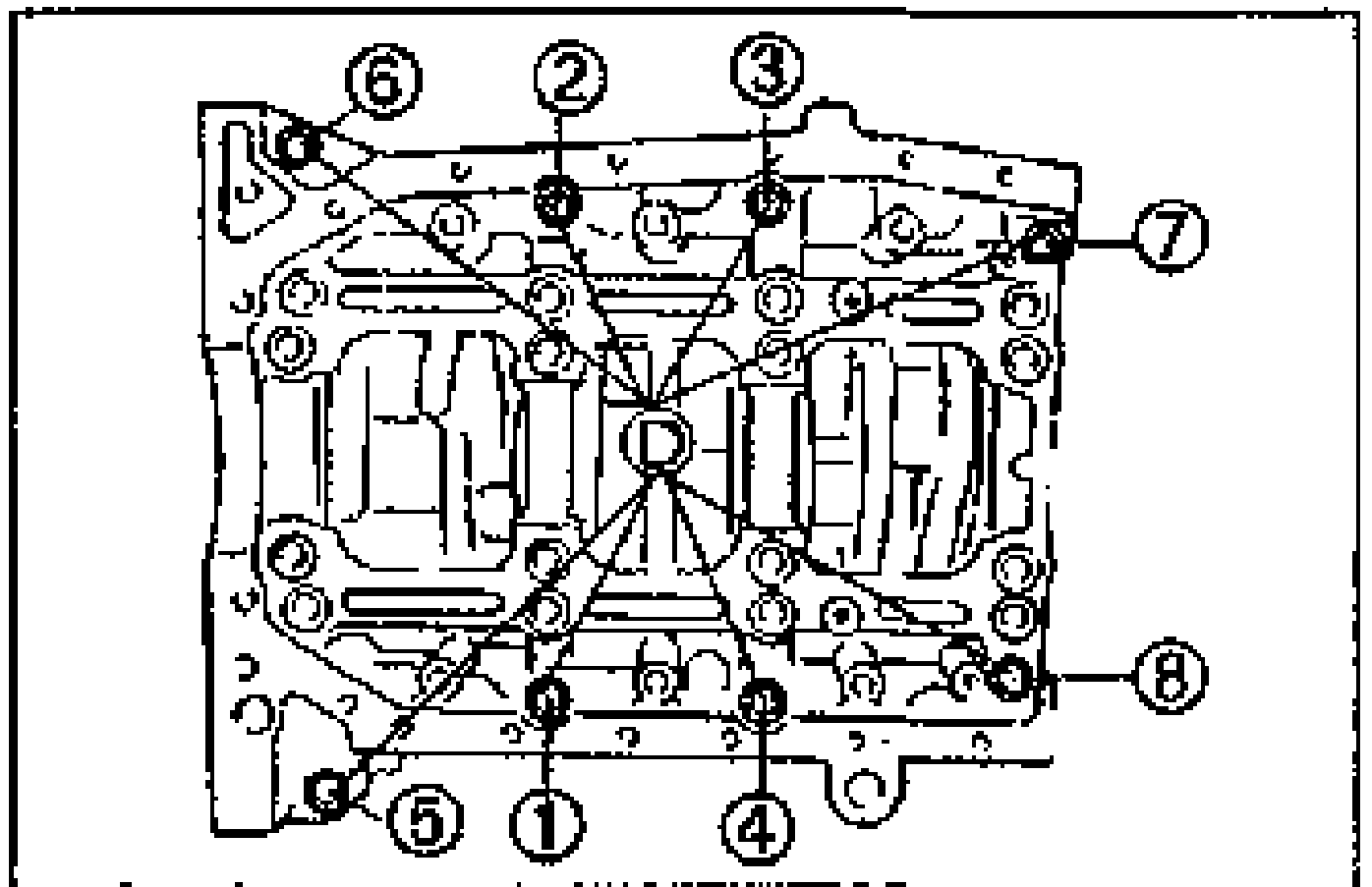

- 10Tighten the lower cylinder block bolts D in the order shown.
| Specification | Value |
|---|---|
| lower cylinder block bolts D | 19 - 25N·m |
lower cylinder block bolts D
19 - 25N·m
