INSTALLATION

B2-127prose procedure
Continued from B2-126

A/C compressor

  1. 1
    Install the A/C compressor to the bracket.
    A/C compressor being installed to its bracket. Arrows point to the four compressor mounting bolts (two top, two bottom).
Tightening torque (A/C compressor)
38 - 51N·m

P/S oil pump and bracket

  1. 1
    Install the P/S oil pump.

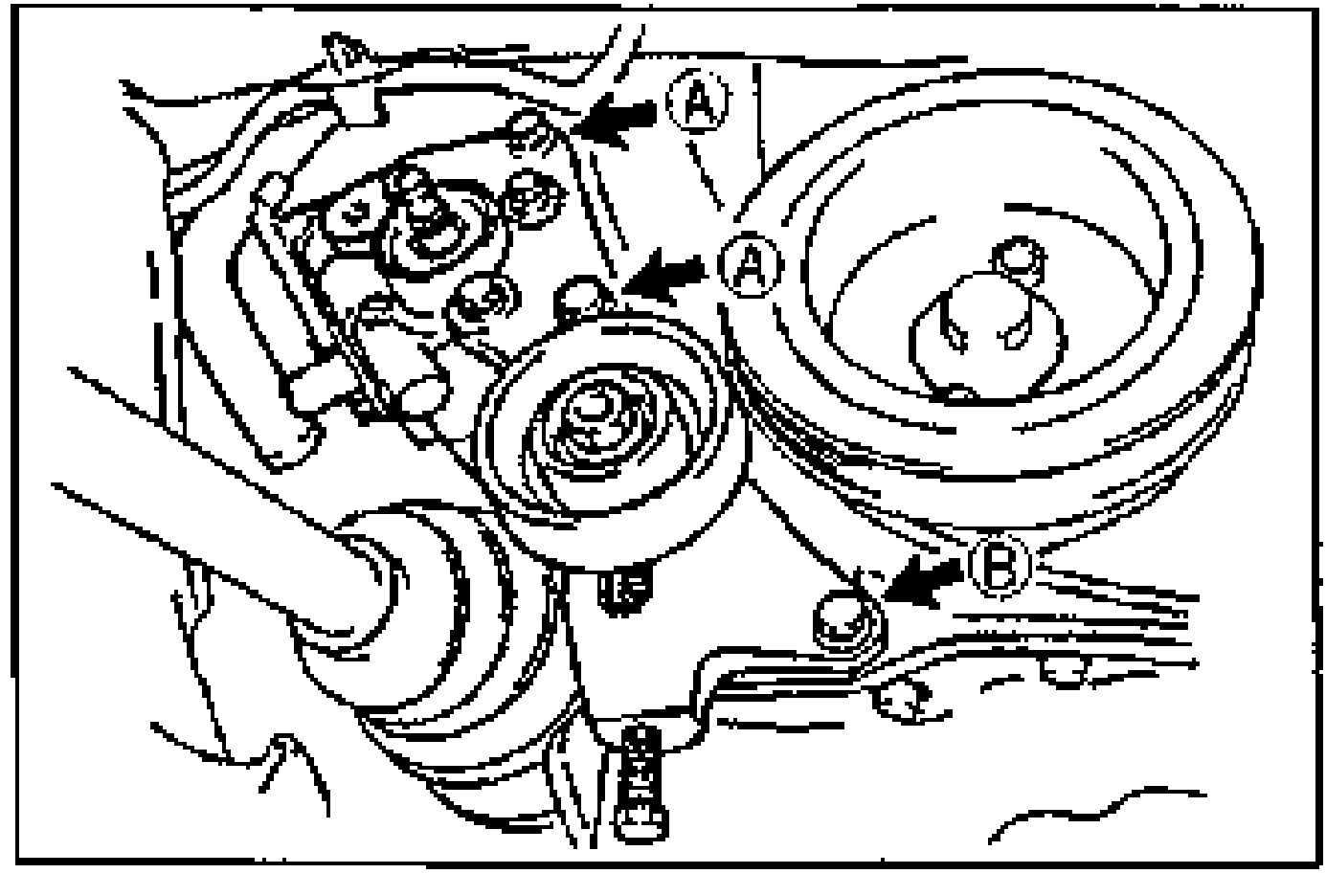

    P/S oil pump and bracket installation. Arrows with balloons A point to the bolts tightened at the A torque value and balloon B points to the bolt tightened at the B torque value.
  2. 2
    Tighten the bolt shown.
    P/S oil pump bracket bolt to be tightened (step 2); a large arrow points to the bolt.
  3. 3
    Install the P/S oil hose to the engine.
    P/S oil hose installed to the engine and the steering pressure sensor connector location.
  4. 4
    Connect the steering pressure sensor connector.
  5. 5
    Install the P/S oil pump pulley to the pump body and hand tighten the nut.
    P/S oil pump pulley installed on the pump body, with the pulley hole visible for inserting a 12 mm socket wrench to hold the pulley while tightening the pulley nut.
  6. 6
    Hold the pulley by using a 12mm (0.47 in) socket wrench through the pulley hole, and tighten the pulley nut.
Tightening torque (P/S oil pump A)step 1 callout A
32 - 46N·m
Tightening torque (P/S oil pump B)step 1 callout B
19 - 25N·m
Tightening torque (bracket bolt)step 2
32 - 46N·m
Tightening torque (P/S oil hose)step 3
7.8 - 10.7N·m
Tightening torque (P/S oil pump pulley nut)step 6
63 - 93N·m
