INSTALLATION

B2-123prose procedure

Clutch release cylinder steps apply to MTX (manual transaxle).

Continued from B2-122

Front exhaust pipe (continued)

  1. 4
    Install the front exhaust pipe with new gaskets.

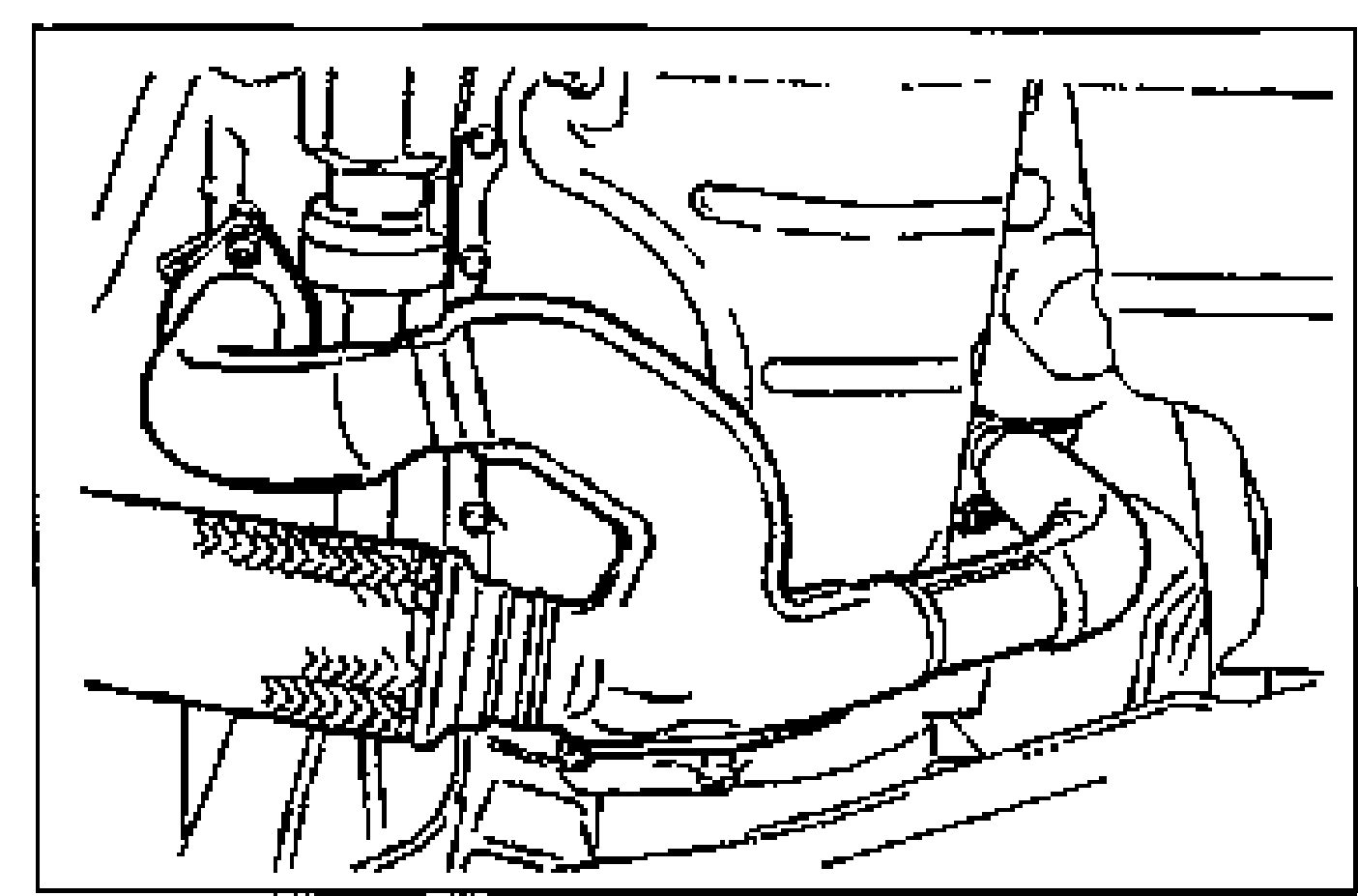

    Underbody view of the front exhaust pipe routed past the transaxle/subframe area where it is installed with new gaskets.
  2. 5
    Tighten new nuts.
Tightening torque (front exhaust pipe new nuts)step 5
41 - 54N·m

Transverse member

  1. 1
    Install the transverse member.
    Transverse member (cross-member) installed underneath the engine/transaxle, showing the member bolted across the subframe.
Tightening torque (transverse member)
94 - 126N·m

Clutch release Cylinder (MTX)

  1. 1
    Install the clutch release cylinder.

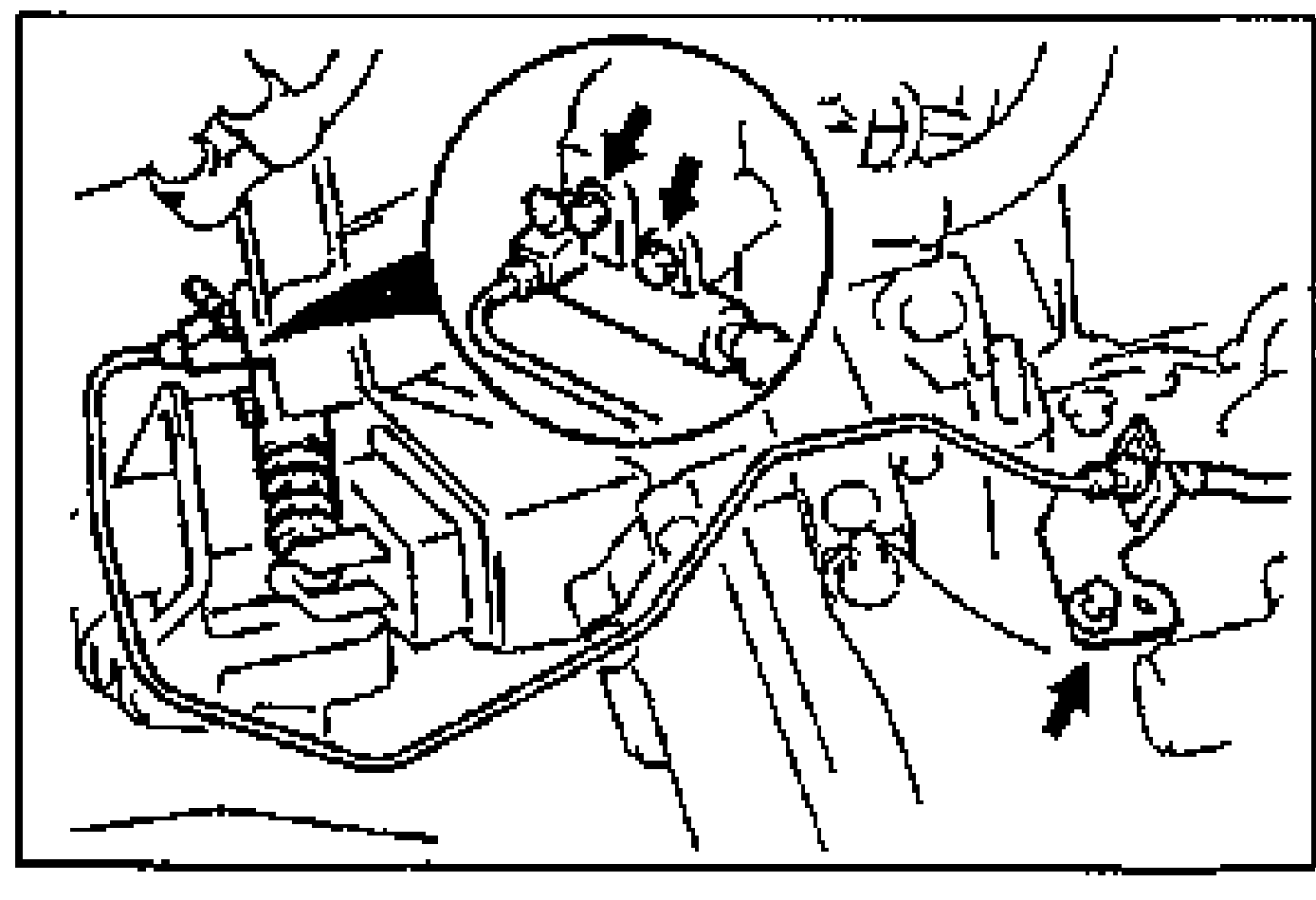

    Clutch release cylinder (MTX) installation on the transaxle with a magnified inset (circle) showing the mounting bolts; arrows point to the cylinder mounting bolts and the pipe bracket location.
  2. 2
    Mount the pipe brackets in position.
Tightening torque (clutch release cylinder)step 1
16 - 22N·m
Tightening torque (pipe brackets)step 2
16 - 22N·m
