Disassembly - Lower cylinder block

B2-72prose procedure
Continued from B2-71

Lower cylinder block (continued)

  1. 2

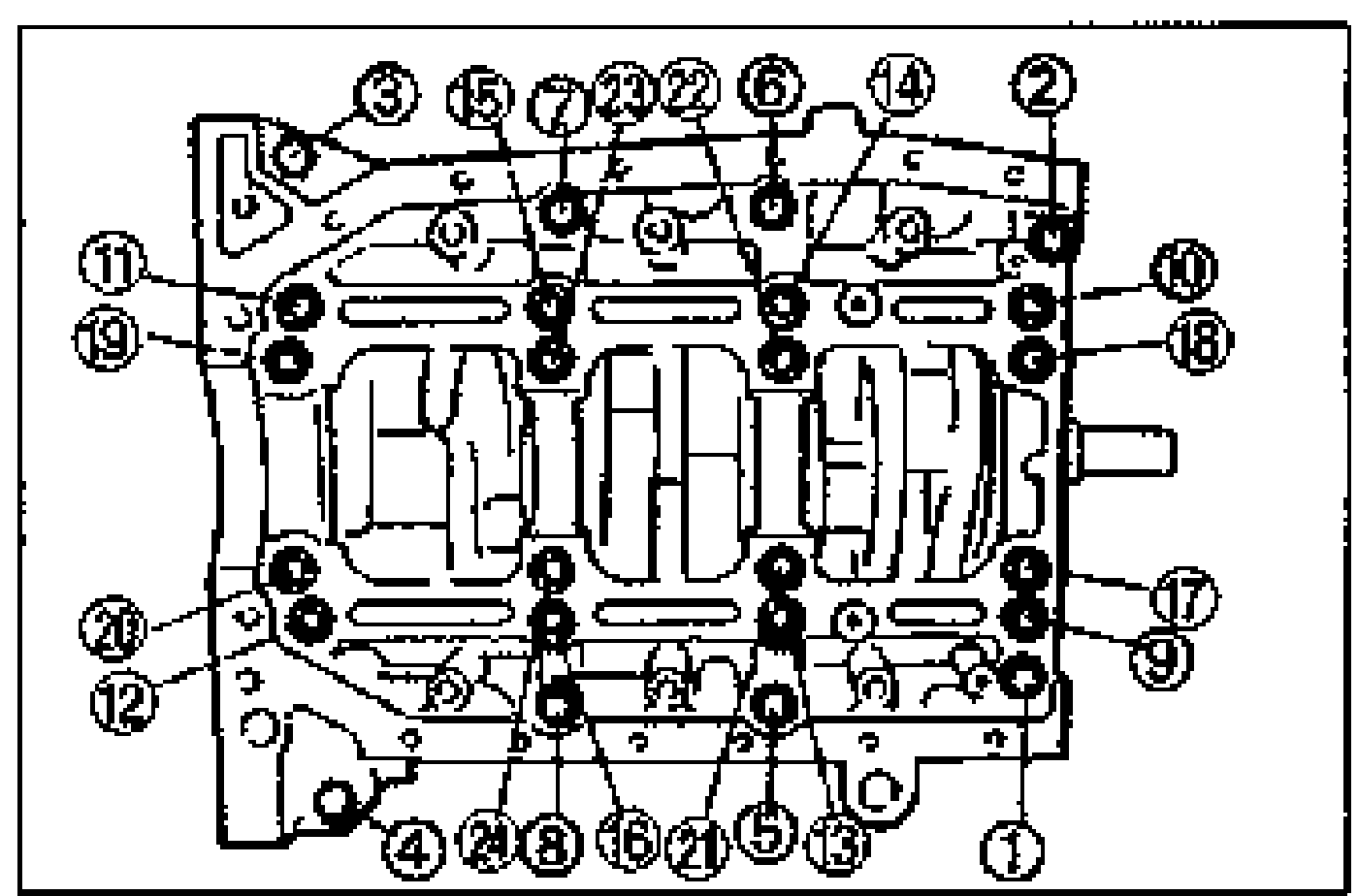

    Loosen the cylinder block bolts and crankshaft cap bolts in two or three steps in the order shown in the figure.
    Line drawing of the lower cylinder block / crankshaft cap area viewed from below, with numbered balloon callouts (1 through 22) indicating the loosening sequence for the cylinder block bolts and crankshaft cap bolts.
  2. 3

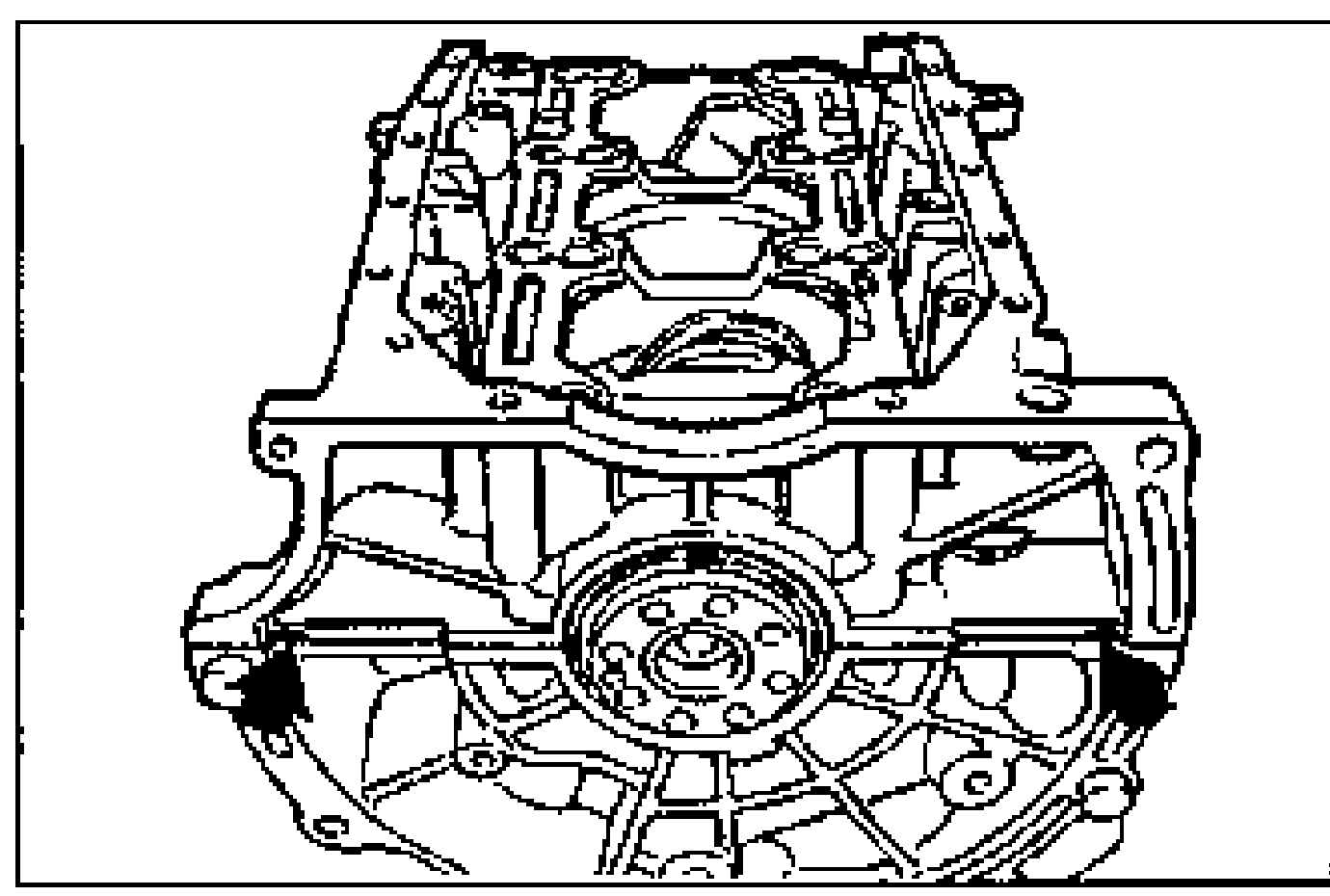

    Insert a screwdriver only at the points shown and pry loose the lower cylinder block.
    Do not use a scraper to separate the cylinder block sections. It can easily scratch the contact surfaces.
    Line drawing of the lower cylinder block being pried loose; a screwdriver is inserted at the designated pry points (highlighted at two corners of the block) to separate the lower cylinder block.
  3. 4
    Tap the lower cylinder block with a plastic hammer.
