ASSEMBLY
B2-115prose procedureK8-ZE V6 engine. Generator/bracket has two torque values keyed to bolt locations A and B.
Generator

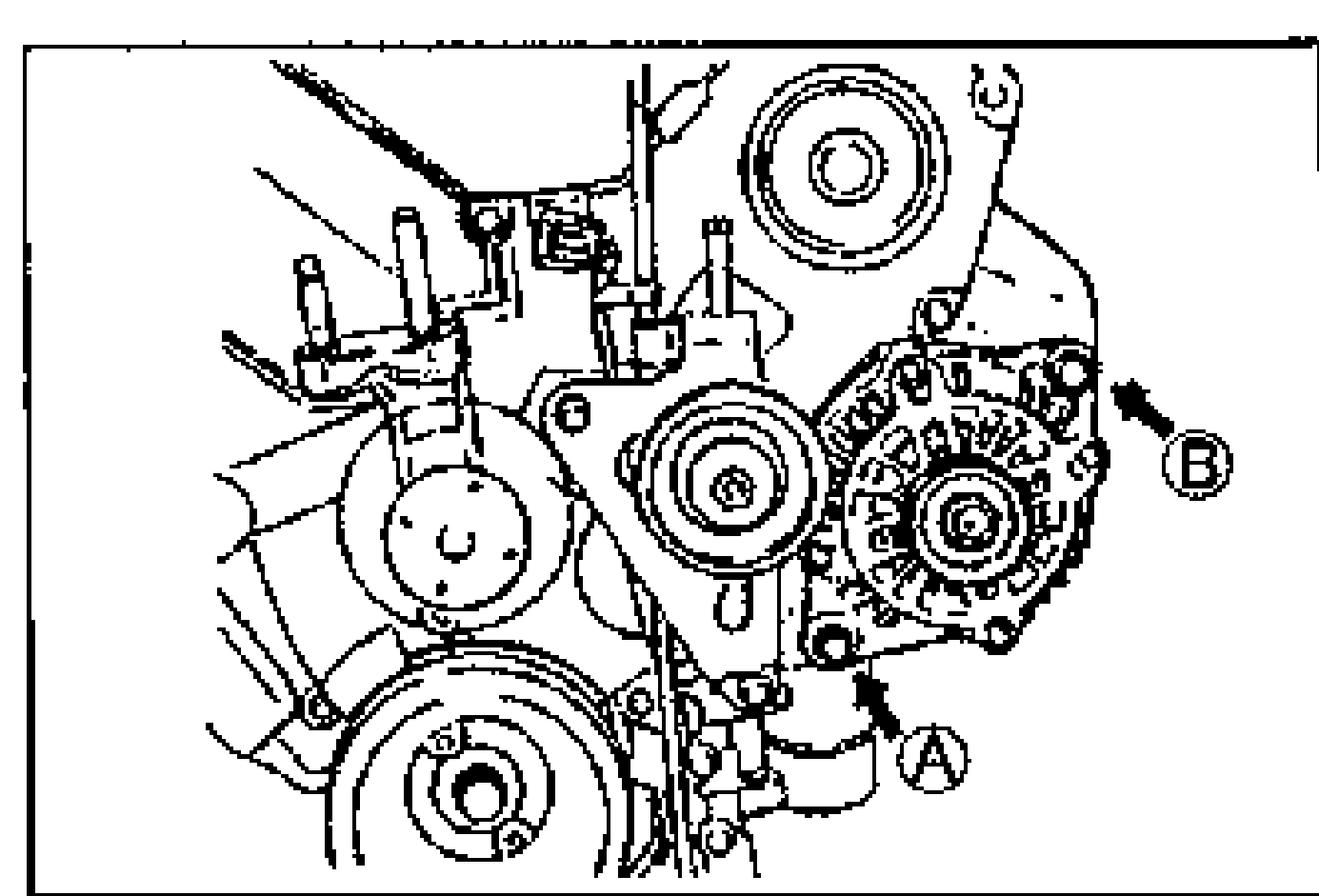

- 1Install the generator and the bracket.
| Specification | Value |
|---|---|
| Tightening torque (A)generator/bracket bolt A | 38 - 51N·m |
| Tightening torque (B)generator/bracket bolt B | 19 - 25N·m |
Tightening torque (A)generator/bracket bolt A
38 - 51N·m
Tightening torque (B)generator/bracket bolt B
19 - 25N·m
