ON-VEHICLE MAINTENANCE — Distributor / Intake manifold assembly

B2-34prose procedure

RH and LH intake manifold gaskets are distinct (K8-ZE V6).

Continued from B2-33

Distributor (continued)

  1. 4
    Install the distributor with the blade fit into the camshaft groove.
    Distributor being installed with its drive blade fitting into the camshaft groove; an arrow shows the insertion direction into the cylinder head.
  2. 5
    Hand tighten the distributor mounting bolt.

Intake manifold assembly

  1. 1
    Install a new gasket and the intake manifold. Hand tighten the bolts and nuts.
    Top view of the engine showing the intake manifold installed on the cylinder heads with the runners and bolts visible.
  2. 2
    Install the intake manifold stay.
    Tightening torque: 19-25 N·m {1.9-2.6 kgf·m, 14-18 ft·lbf}

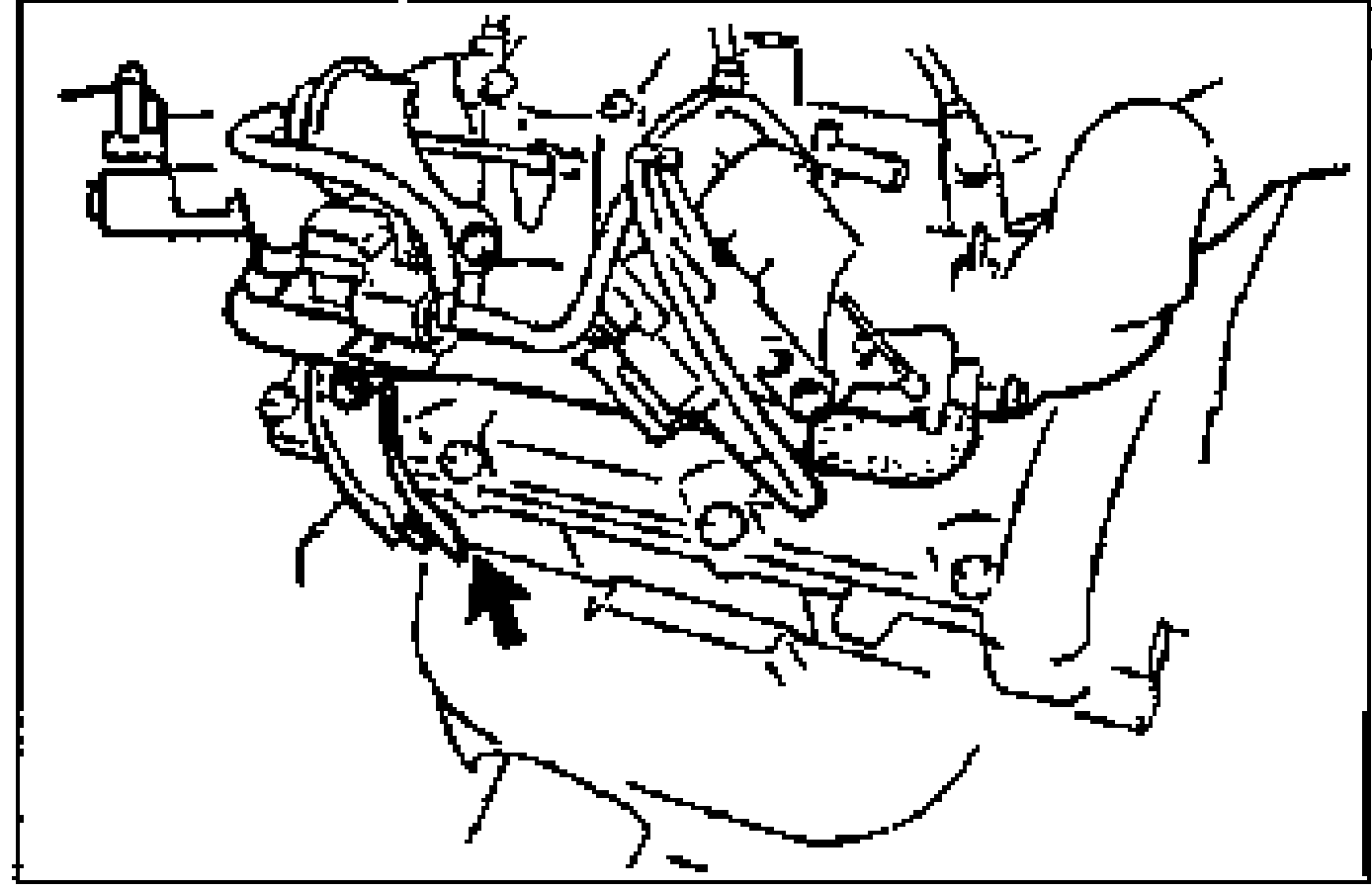

    View of the intake manifold stay being installed; an arrow points to the stay mounting location below the manifold.
  3. 3
    Tighten the bolts and nuts in two or three steps.
    Tightening torque: 19-25 N·m {1.9-2.6 kgf·m, 14-18 ft·lbf}
    Two intake manifold gaskets labeled RH and LH showing the three port openings and bolt holes for each cylinder bank.
Intake manifold stay
19 - 25N·m
Intake manifold bolts/nuts
19 - 25N·m
