INSTALLATION

B2-125component photo
Continued from B2-124

Step 5

  1. 1
    Connect the harness connectors shown.

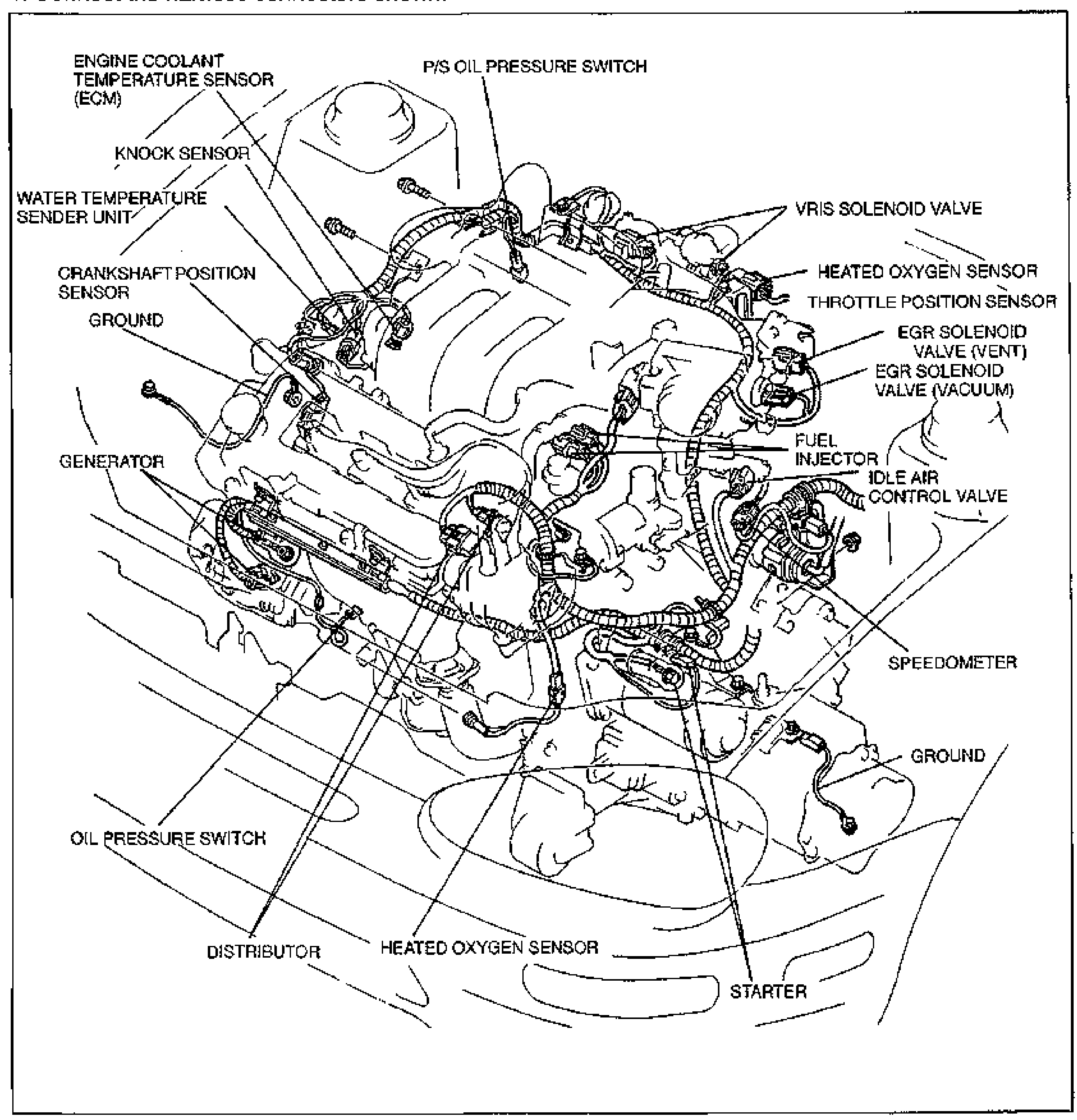

    Top view of the engine with the wiring harness routed over it, showing all the harness-connector locations to be connected during Step 5. Lead lines identify connectors for the engine coolant temperature sensor (ECM), knock sensor, water temperature sender unit, crankshaft position sensor, ground, generator, oil pressure switch, distributor, heated oxygen sensor (front), P/S oil pressure switch, VRIS solenoid valve, heated oxygen sensor (rear), throttle position sensor, EGR solenoid valve (vent), EGR solenoid valve (vacuum), fuel injector, idle air control valve, speedometer, ground, and starter.
  2. 2
    Install the harness bracket and the fuel filter.

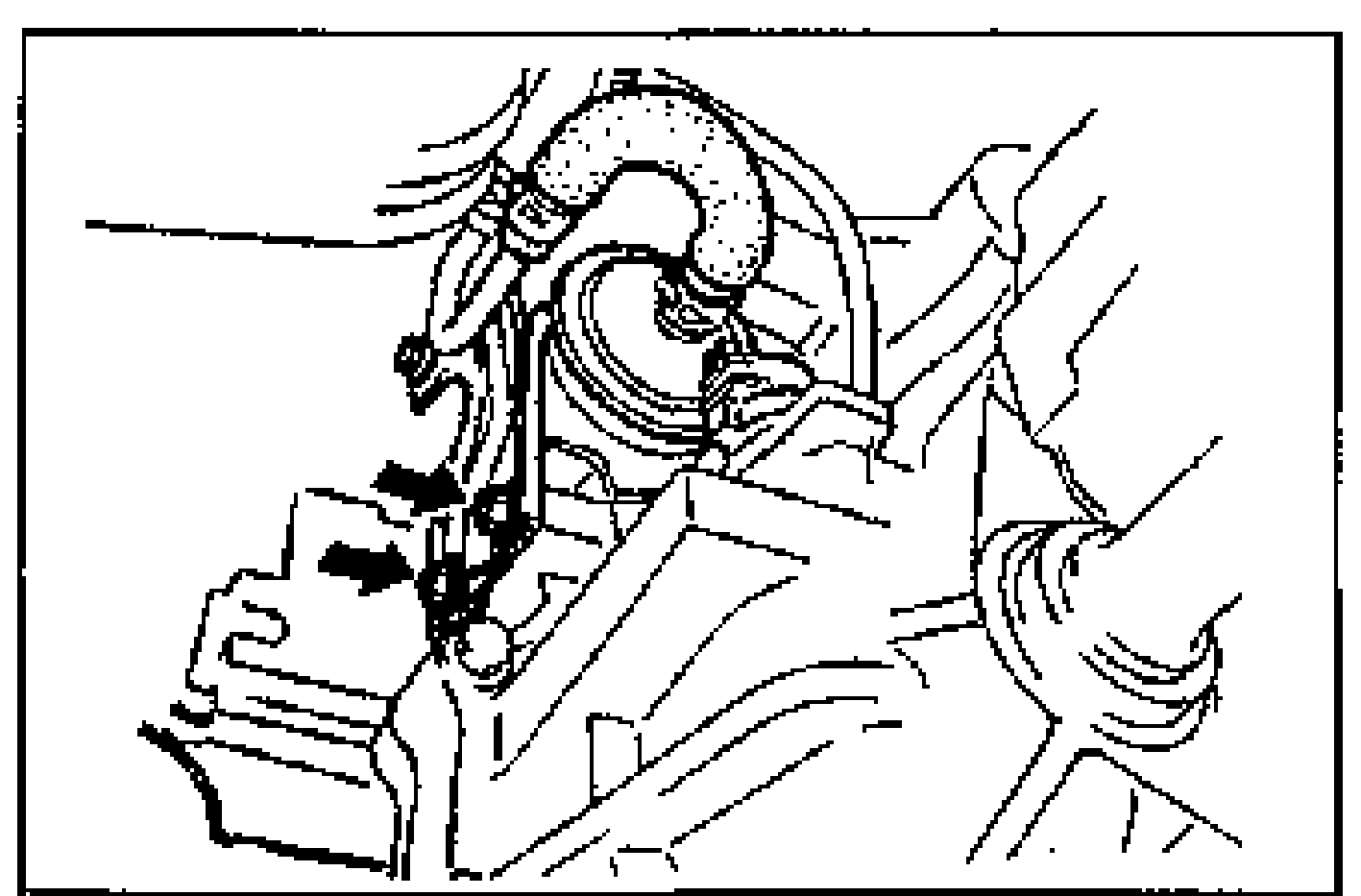

    Close-up showing installation of the harness bracket and fuel filter; arrows point to the bracket/fuel filter mounting location.
Tightening torque (harness bracket / fuel filter)step 2
7.9 - 10.7N·m
