Mazda MX-3 silhouetteMX-3

ON-VEHICLE MAINTENANCE

B2-26prose procedure
Continued from B2-25

Fuel hose

Plug the disconnected hoses to avoid fuel leakage.

Intake manifold assembly

  1. 1
    Temporarily install the No.3 engine mount bracket to support the engine.
    Throttle body / intake area with the No.3 engine mount bracket region, used when temporarily installing the bracket to support the engine.
  2. 2
    Remove the SST installed for the timing belt removal.
  3. 3
    Remove the intake manifold stay.

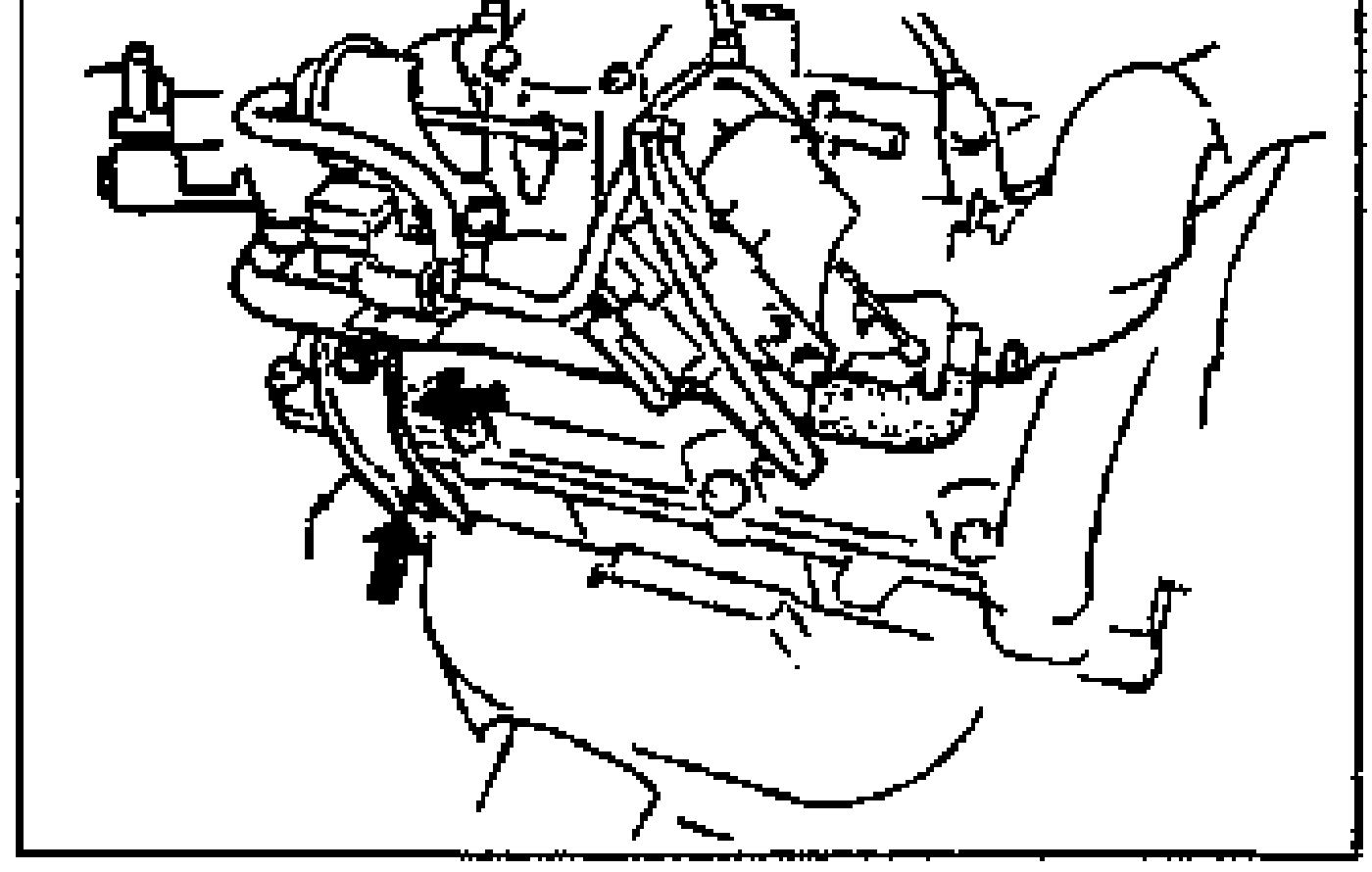

    Intake manifold stay area; an arrow points to the stay to be removed.
  4. 4
    Loosen the mounting bolts in two or three steps.
    Top view of the intake manifold assembly showing the mounting bolts to be loosened in two or three steps.

Cylinder head cover

  1. 1
    Remove the cylinder head cover bolts.

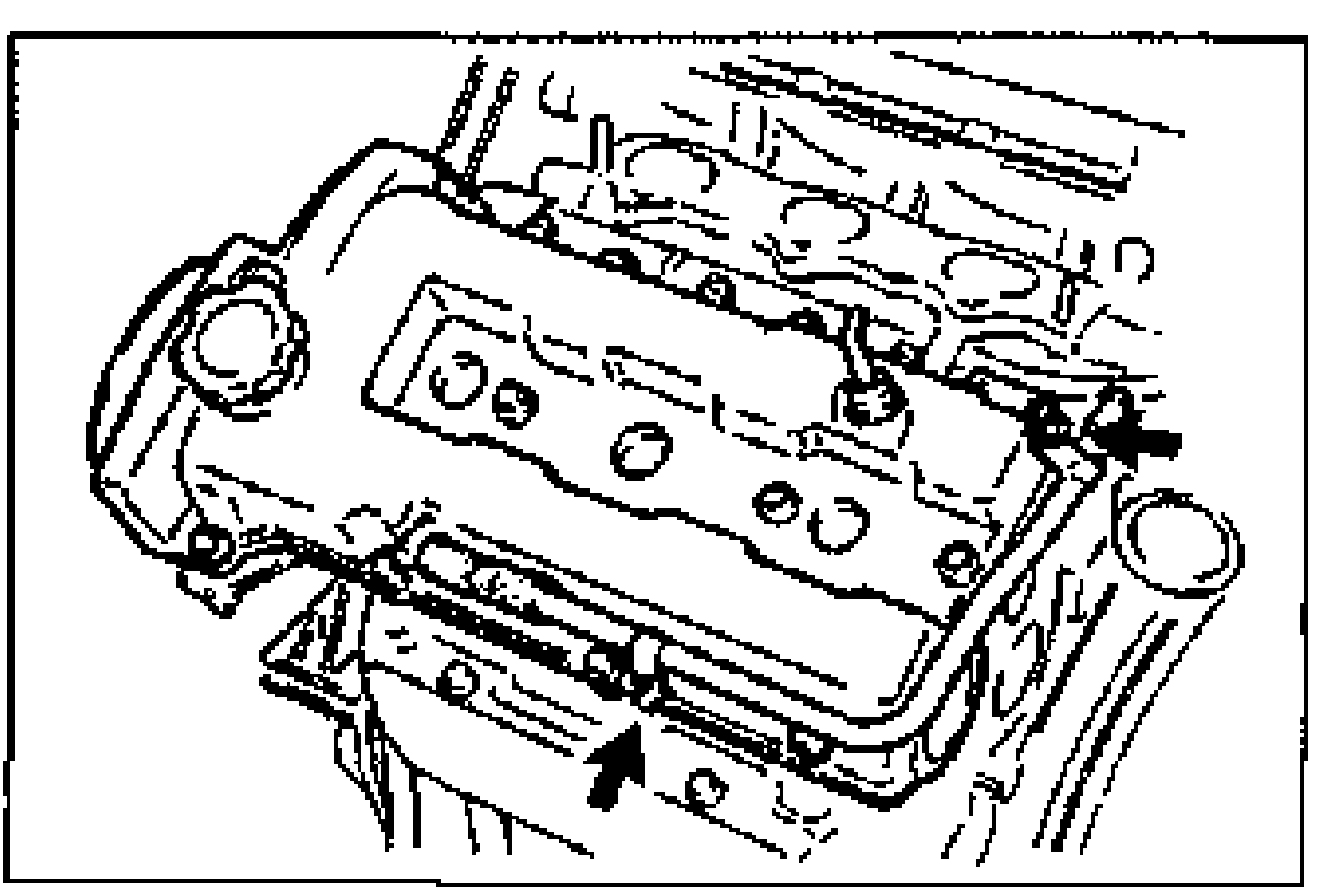

    Cylinder head cover with arrows pointing to the cover bolts / ventilation pipe at the left cylinder head.
  2. 2
    Disconnect the ventilation pipe (left cylinder head).
  3. 3
    Remove the cylinder head cover.
