Engine Stand Mounting — Procedure (continued) / Coolant Draining

B2-54prose procedure
Continued from B2-53

Procedure (continued)

  1. 4
    Install the SST (arms) to the holes as shown, and hand tighten the SST (bolts).
    Photo of the SST arms (49 L010 102) installed to the holes on the engine block and hand tightened with SST bolts (49 L010 106).
  2. 5
    Assemble the SST (bolts, nuts and plate) as shown in the figure.
    Illustration of the SST plate (49 L010 101) showing the bolt-hole pattern, the TOP orientation arrow, and lettered hole positions A, E and H.
  3. 6
    Install the SST assembled in step 5 to the SST installed in step 4.
    Cross-section assembly diagram of the SST showing ENGINE on the left and the ARM, BOLT, HOOK, NUT, WASHER and PLATE arrangement. Labels indicate PARALLEL between plate and arm, and that less than 20mm (0.79 in) of thread should be exposed at the bolt.
  4. 7
    Adjust the SST (bolts) so that less than 20mm (0.79 in) of thread is exposed.
  5. 8
    Make the SST (plate and arms) parallel by adjusting the SST (bolts and nuts).
  6. 9
    Tighten the SST (bolts and nuts) to affix the SST firmly.
  7. 10
    Mount the engine on the SST.

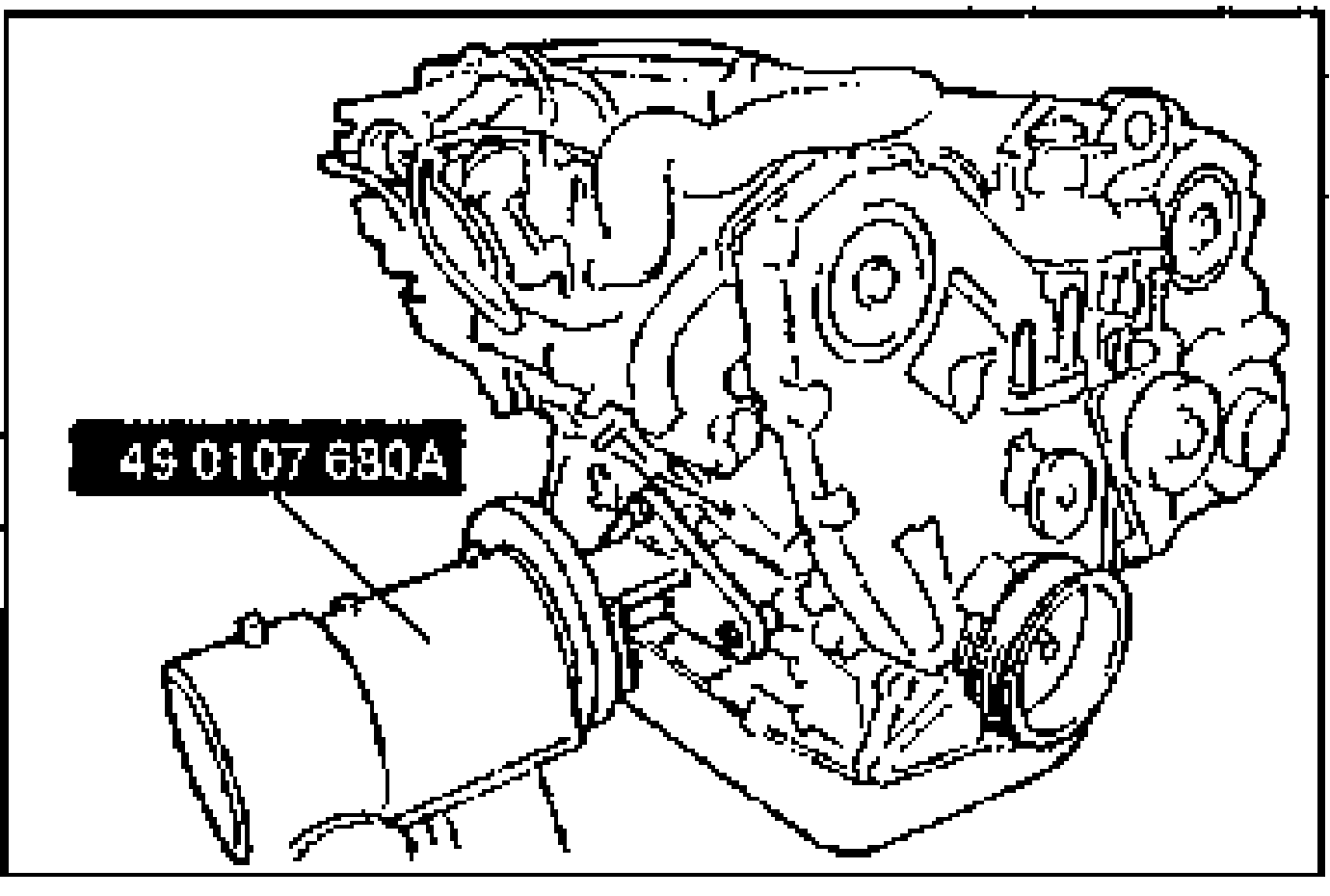

    Photo of the engine mounted on the engine stand SST 49 0107 680A.

Coolant Draining

  1. 1
    After installing the engine to the engine stand, disconnect the oil cooler hoses as shown in the figure (left cylinder head).
    Photo of the oil cooler hose connection at the left cylinder head, with an arrow indicating disconnection for coolant draining.
