ENGINE TUNE-UP
B2-5prose procedureK8 engine (1.8L V6) tune-up.
PREPARATION
SST
Special Service Tools (SST)
49 9200 020A
NameV-ribbed belt tension gauge
UsageFor inspection of drive belt tension
49 B019 9A0
NameSystem selector
UsageFor inspection of ignition timing and idle speed
ENGINE OIL
Inspection
- 1Be sure the vehicle is on level ground.
- 2Warm up the engine to normal operating temperature and stop it.
- 3Wait for five minutes.
- 4Remove the dipstick and check the oil level and condition.
- 5Add or replace oil if necessary.The distance between the L and F marks on the dipstick represents 1.0 L {1.1 US qt, 0.9 Imp qt}.
ENGINE COOLANT
Inspection — Coolant level (engine cold)
WARNING
Removing the radiator cap or the coolant filler cap while the engine is running, or when the engine and radiator are hot is dangerous. Scalding coolant and steam can shoot out and cause serious injury. It can also damage the engine and cooling system. Turn off the engine and wait until it is cool. Even then, be very careful when removing the cap. Wrap a thick cloth around it and slowly turn it counterclockwise to the first stop. Step back while the pressure escapes. When you're sure all the pressure is gone, press down on the cap - still using a cloth - turn it, and remove it.

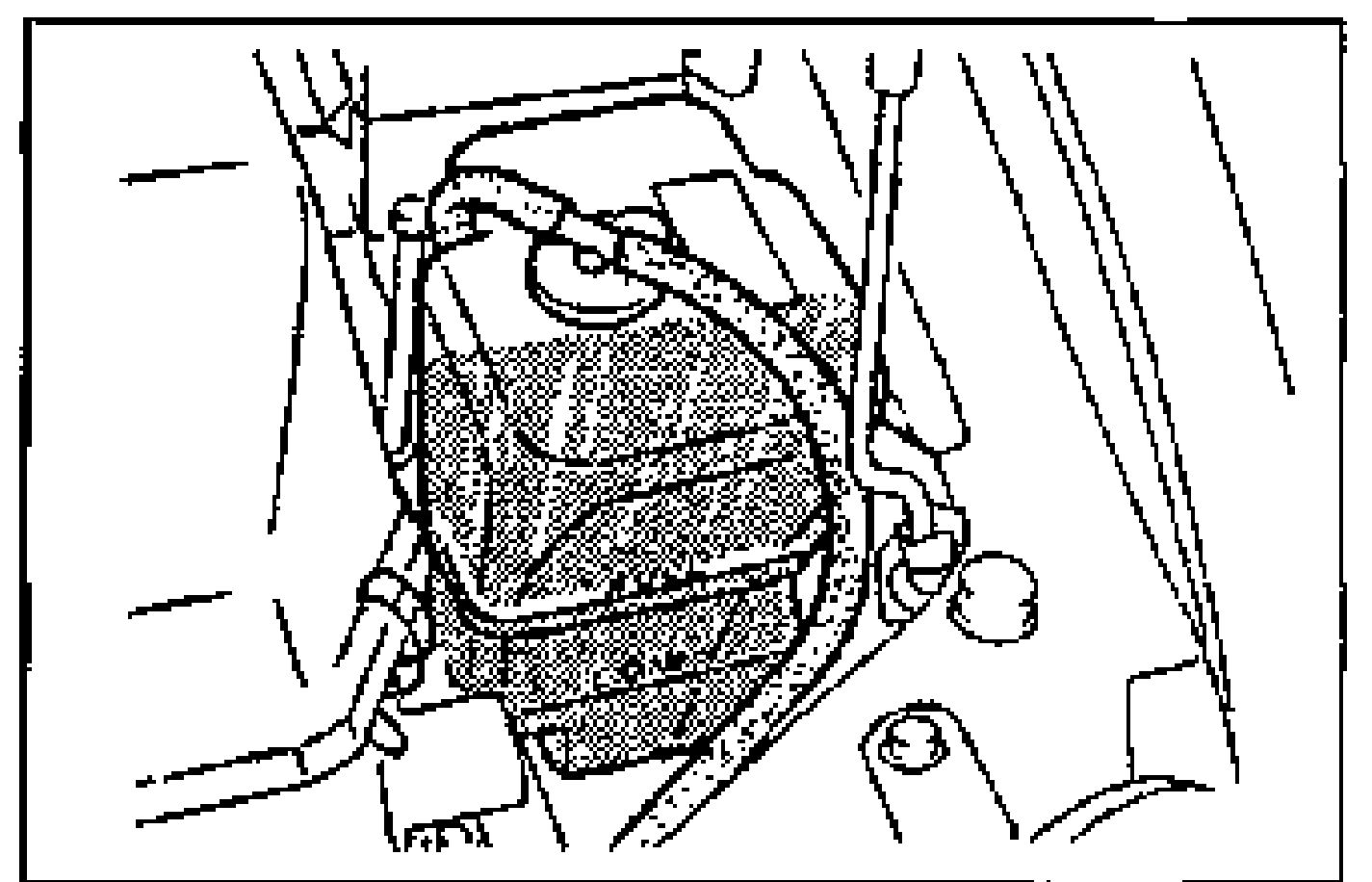

Coolant level inspection
- 1Verify that the coolant level is near the filler neck.
- 2Verify that the coolant level in the coolant reservoir is between the FULL and LOW marks.
- 3Add coolant if necessary.
