ASSEMBLY
B2-113prose procedureA/C compressor bracket only if equipped. K8-ZE V6 engine intake manifold.
Spark Plug
- 1Install the spark plugs.
| Specification | Value |
|---|---|
| spark plugs | 15 - 22N·m |
spark plugs
15 - 22N·m
A/C Compressor Bracket (If equipped)
- 1Install the A/C compressor bracket.
| Specification | Value |
|---|---|
| A/C compressor bracket | 38 - 51N·m |
A/C compressor bracket
38 - 51N·m

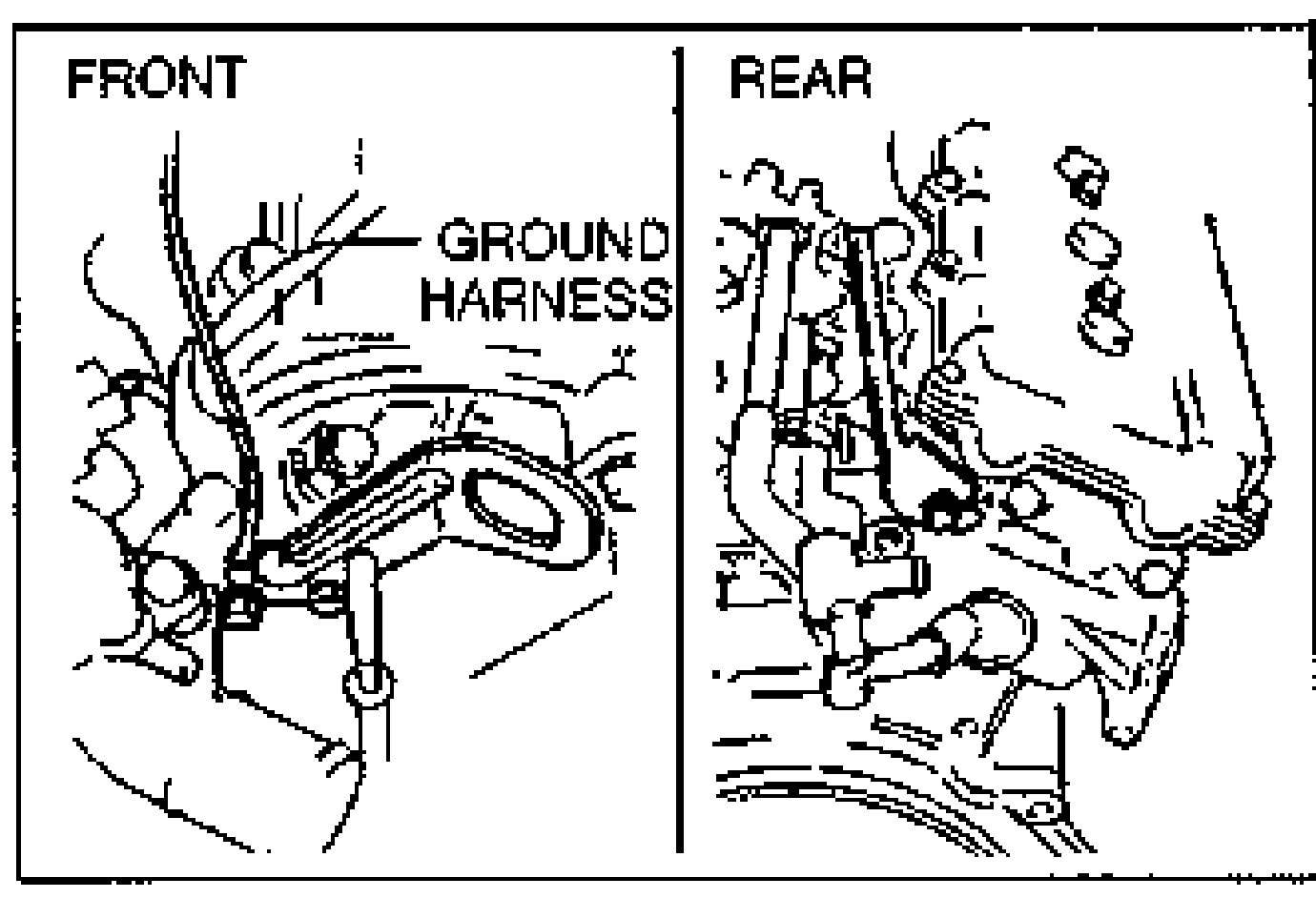

Engine Hanger
- 1Install the front engine hanger and the ground harness.
- 2Install the rear engine hanger.
| Specification | Value |
|---|---|
| front engine hanger and ground harness | 19 - 25N·m |
| rear engine hanger | 38 - 51N·m |
front engine hanger and ground harness
19 - 25N·m
rear engine hanger
38 - 51N·m
Intake Manifold Assembly

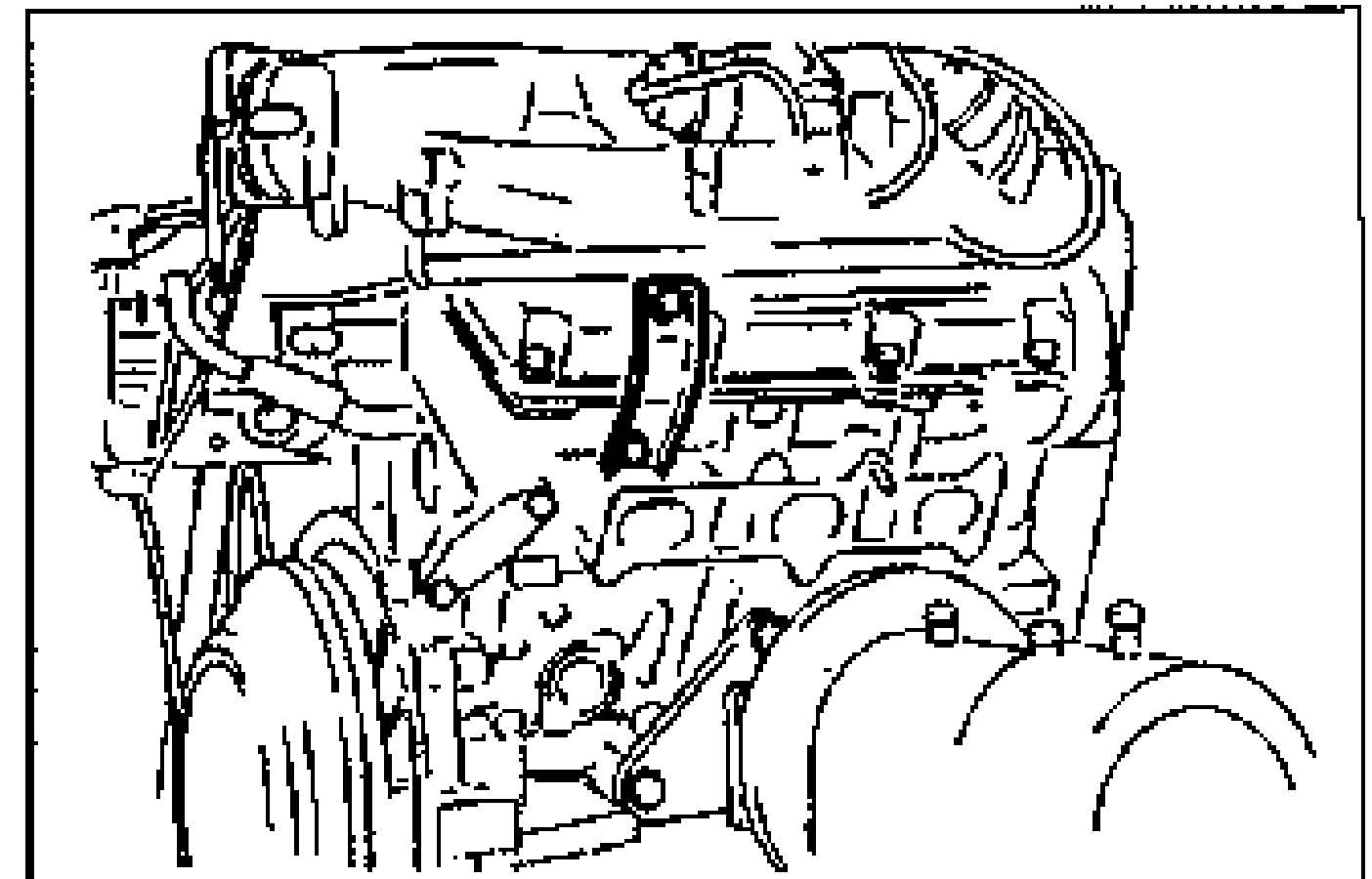

- 1Install new gaskets and the intake manifold assembly. Hand tighten the bolts and nuts.
- 2Install the intake manifold bracket.

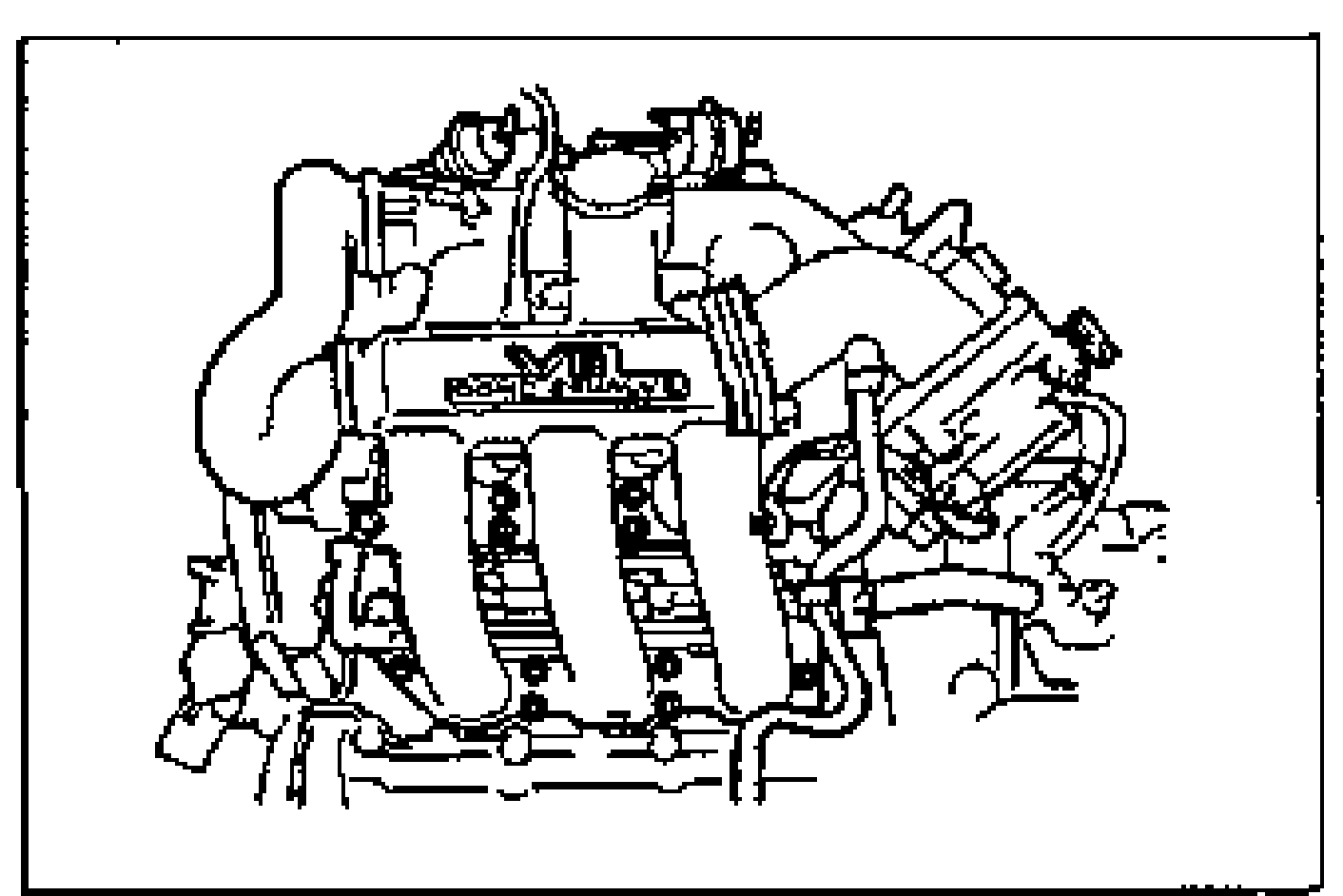

- 3Tighten the intake manifold bolts and nuts in two or three steps.
- 4Connect the hoses.
| Specification | Value |
|---|---|
| intake manifold bracket | 19 - 25N·m |
| intake manifold bolts and nuts | 19 - 25N·m |
intake manifold bracket
19 - 25N·m
intake manifold bolts and nuts
19 - 25N·m
