INSTALLATION
B2-130prose procedureBattery (continued)

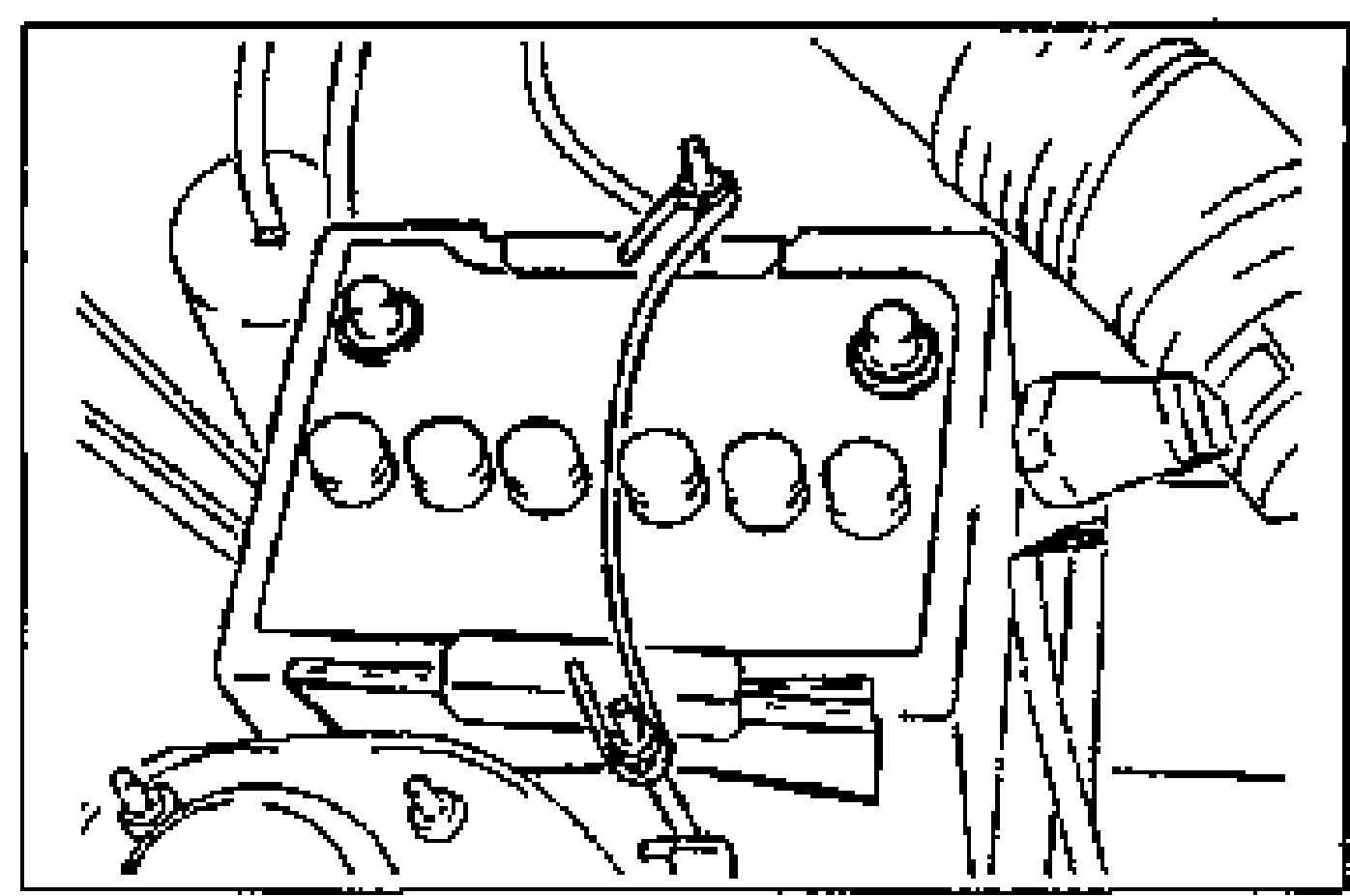

- 3Install the battery.
- 4Connect the positive battery terminal.
| Specification | Value |
|---|---|
| Tightening torque (battery) | ≈24 - 58N·m |
Tightening torque (battery)
24 - 58N·m

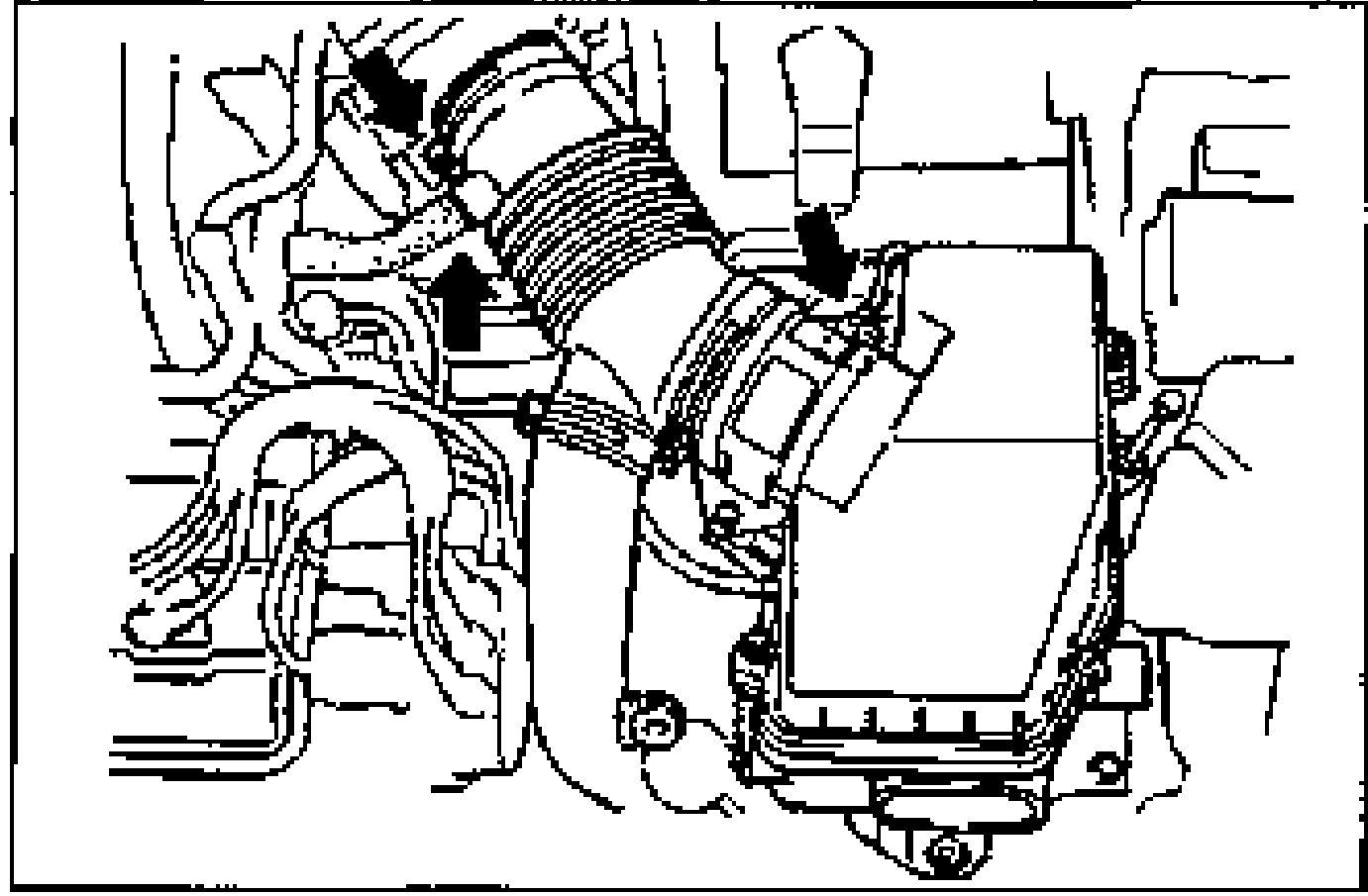

Air cleaner assembly
- 1Install the air cleaner assembly.
- 2Connect the hoses.
- 3Connect the mass air flow sensor connector.
| Specification | Value |
|---|---|
| Tightening torque (air cleaner) | ≈186 - 245N·m |
Tightening torque (air cleaner)
186 - 245N·m

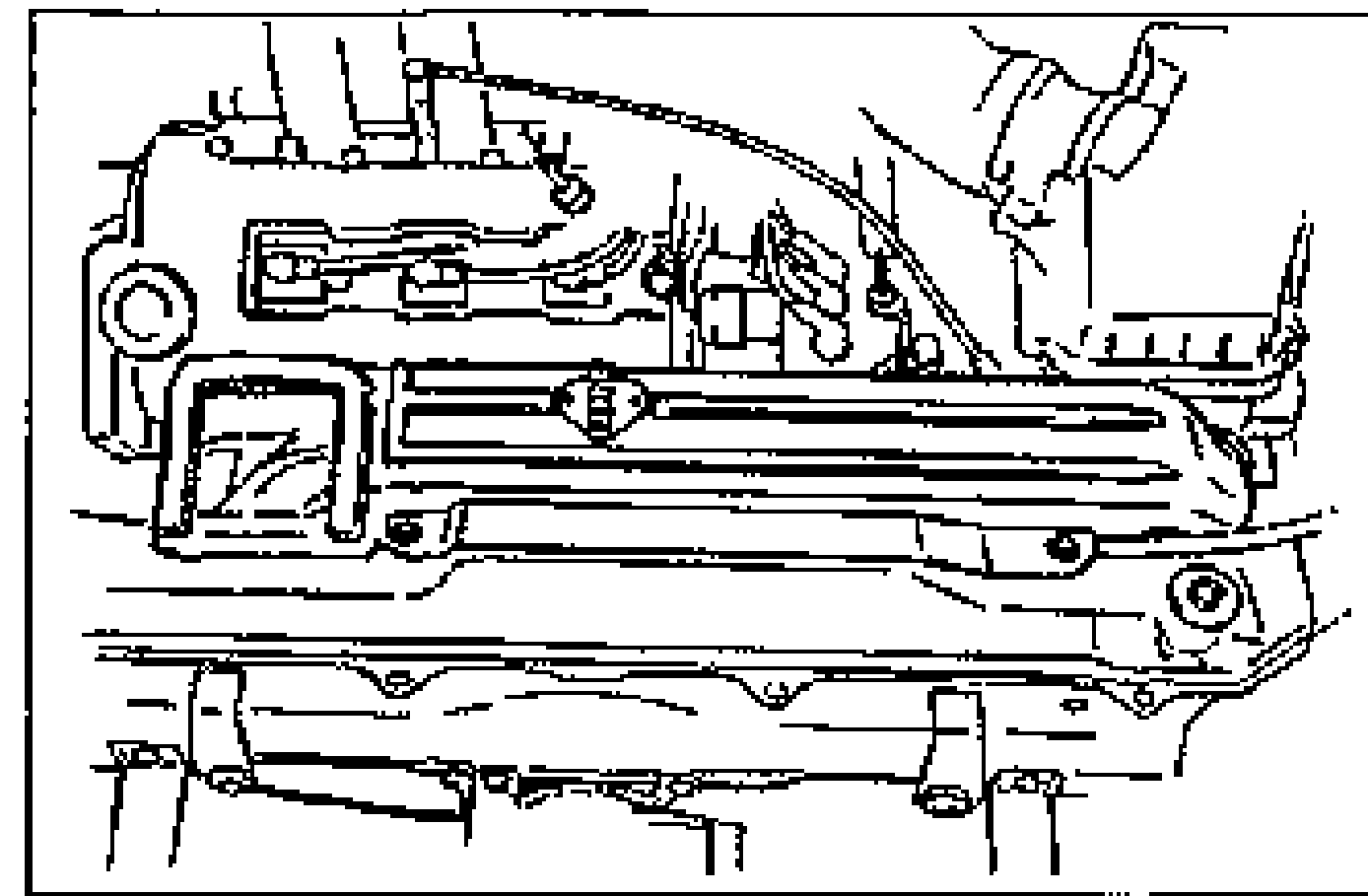

Fresh-air duct
- 1Install the fresh-air duct.
| Specification | Value |
|---|---|
| Tightening torque (fresh-air duct) | ≈77 - 105N·m |
Tightening torque (fresh-air duct)
77 - 105N·m
Splash shield
- 1Install the splash shield.
Steps After Installation
- 1Fill the engine with the specified amount and type of engine oil. (Refer to section D2.)
- 2Fill the radiator with the specified amount and type of engine coolant. (Refer to section E2.)
- 3If the transaxle oil was drained, fill it with the specified amount and type of transaxle oil. (Refer to section J2, K.)
- 4Install the front wheels.
- 5Start the engine and (1) check the engine oil, transmission oil, and engine coolant leakage. (2) check the ignition timing and idle speed. (Refer to section F2.) (3) check the operation of the emission control system. (Refer to section F2.)
- 6Turn off the engine and check drive belt deflection. (Refer to page B2-6.)
- 7Perform a road test.
- 8Recheck the oil and coolant levels.
