INSTALLATION
B2-122prose procedureExtension bar and shift control rod steps apply to MTX (manual transaxle).
Lower arm ball joint (continued)
- 8Install the lower arm ball joint to the knuckle and tighten the through bolt.
| Specification | Value |
|---|---|
| Tightening torque (lower arm ball joint through bolt)step 8 | 44 - 58N·m |
Tightening torque (lower arm ball joint through bolt)step 8
44 - 58N·m
Tie-rod end ball joint
- 1Install the tie-rod ends to the knuckles and tighten.
- 2Install new cotter pins.
| Specification | Value |
|---|---|
| Tightening torque (tie-rod ends)Tie-rod end ball joint step 1 | 43 - 56N·m |
Tightening torque (tie-rod ends)Tie-rod end ball joint step 1
43 - 56N·m
Stabilizer control link
- 1Install the stabilizer control link.
| Specification | Value |
|---|---|
| Tightening torque (stabilizer control link) | 44 - 60N·m |
Tightening torque (stabilizer control link)
44 - 60N·m

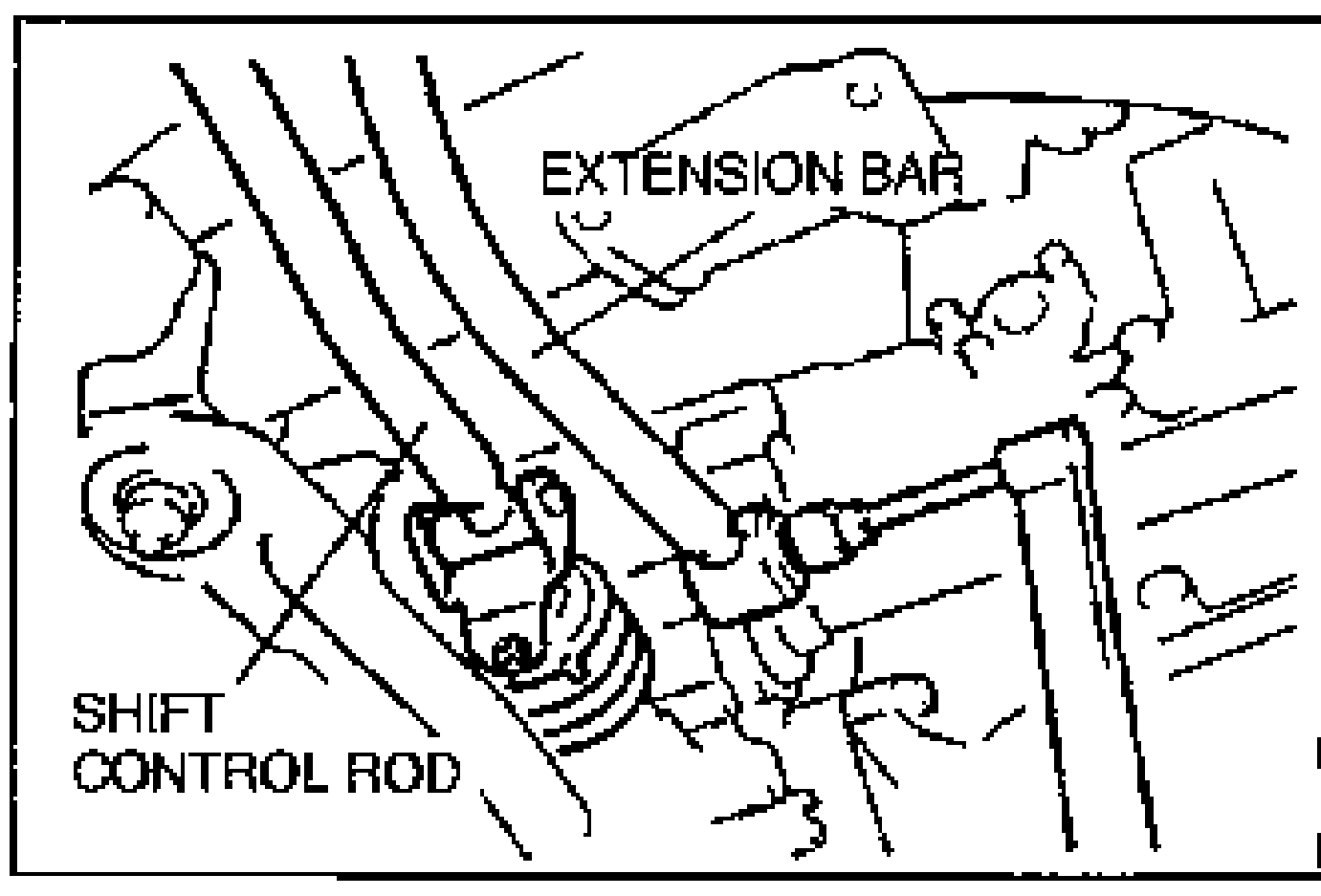

Extension bar (MTX)
- 1Install the extension bar to the transaxle.
| Specification | Value |
|---|---|
| Tightening torque (extension bar) | 32 - 46N·m |
Tightening torque (extension bar)
32 - 46N·m
Shift control rod (MTX)
- 1Install the shift control rod to the transaxle.
| Specification | Value |
|---|---|
| Tightening torque (shift control rod) | 16 - 22N·m |
Tightening torque (shift control rod)
16 - 22N·m
Front exhaust pipe
- 1Connect the front exhaust pipe to the exhaust pipe with a new gasket. Hand tighten new nuts.
- 2Tighten the nuts.
| Specification | Value |
|---|---|
| Tightening torque (front exhaust pipe nuts)Front exhaust pipe step 2 | 64 - 89N·m |
Tightening torque (front exhaust pipe nuts)Front exhaust pipe step 2
64 - 89N·m
