REMOVAL — Step 4; Removal Note: Clutch release cylinder (MTX)
B2-48parts diagramItems 1 (clutch release cylinder), 4 (shift control rod), and 5 (extension bar) apply to MTX (manual transaxle).
Step 4
Step 4 — removal order
1
PartClutch release cylinder (MTX)
ReferenceRemoval Note — below
2
PartTransverse member
Reference—
3
PartExhaust front pipe
Reference—
4
PartShift control rod (MTX)
Reference—
5
PartExtension bar (MTX)
Reference—
6
PartStabilizer control link
Reference—
7
PartTie-rod end ball joint
ReferenceRemoval Note — page B2-49
8
PartEngine mount member
ReferenceRemoval Note — page B2-49
9
PartDrive shaft
ReferenceRemoval Note — page B2-49
Removal Note

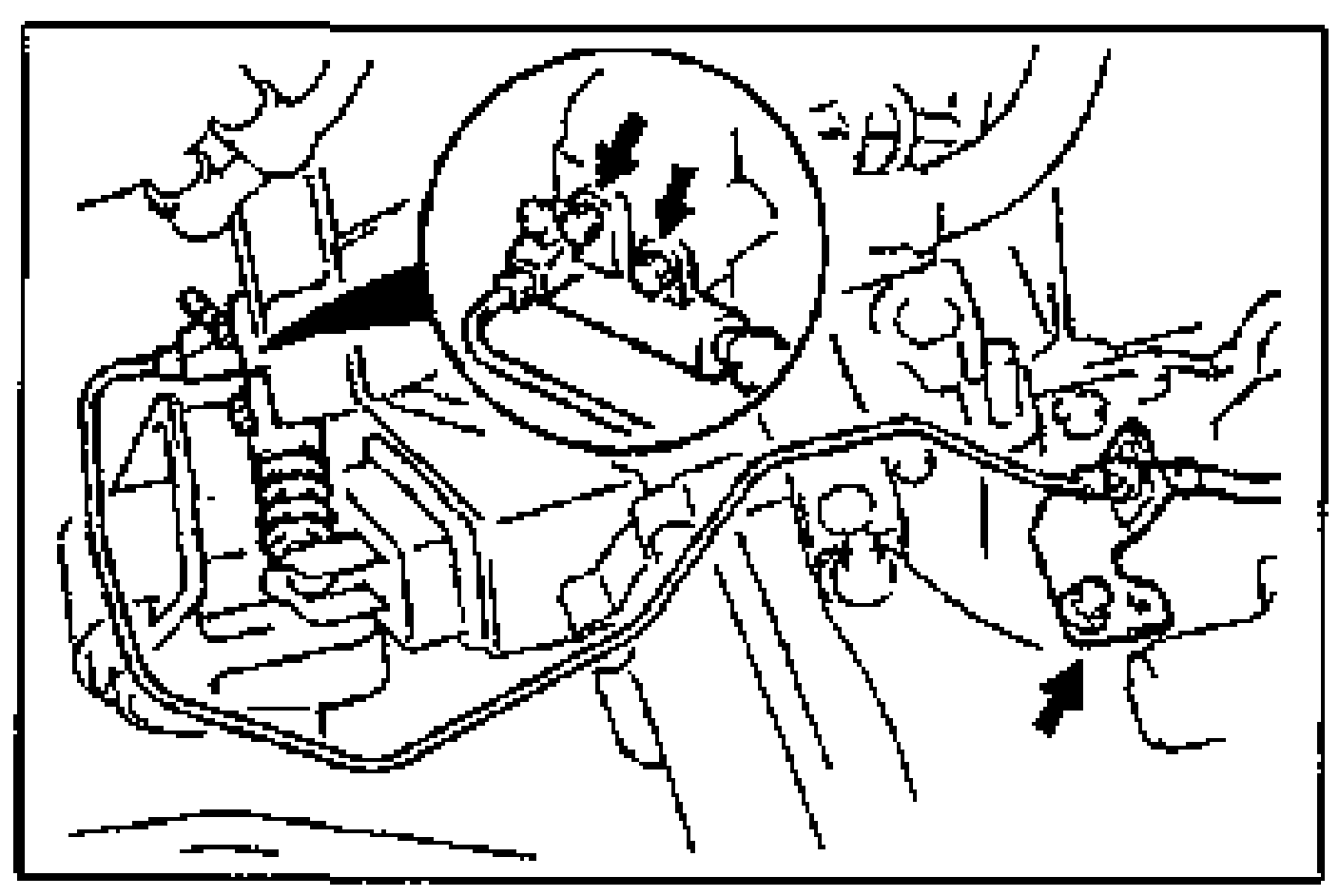

Clutch release cylinder (MTX)
Clutch release cylinder (MTX) removal
- 1Unbolt the release cylinder pipe brackets from the transaxle.Caution: Bending the pipe can cause kinks or cracks.
- 2Remove the release cylinder and position it away from the transaxle with the hose still connected.
