ON-VEHICLE MAINTENANCE

B2-15prose procedure
Continued from B2-14

Crankshaft pulley

Crankshaft pulley

  1. 1
    Install the SST to the crankshaft pulley with bolts (M10 X 1.25).
    Illustration of SST holder set (49 E011 1A1) and coupling-flange holder (49 S120 710) installed on the crankshaft pulley to hold it while the pulley bolt is removed.
  2. 2
    Remove the crankshaft pulley bolt and the pulley.

Dipstick and pipe

  1. 1
    Disconnect the crankshaft position sensor connector.
    Illustration of the front engine cover area; arrows point to the crankshaft position sensor connector and the clip on the dipstick pipe to be removed.
  2. 2
    Remove the clip from the dipstick pipe.
  3. 3
    Remove the dipstick and pipe.

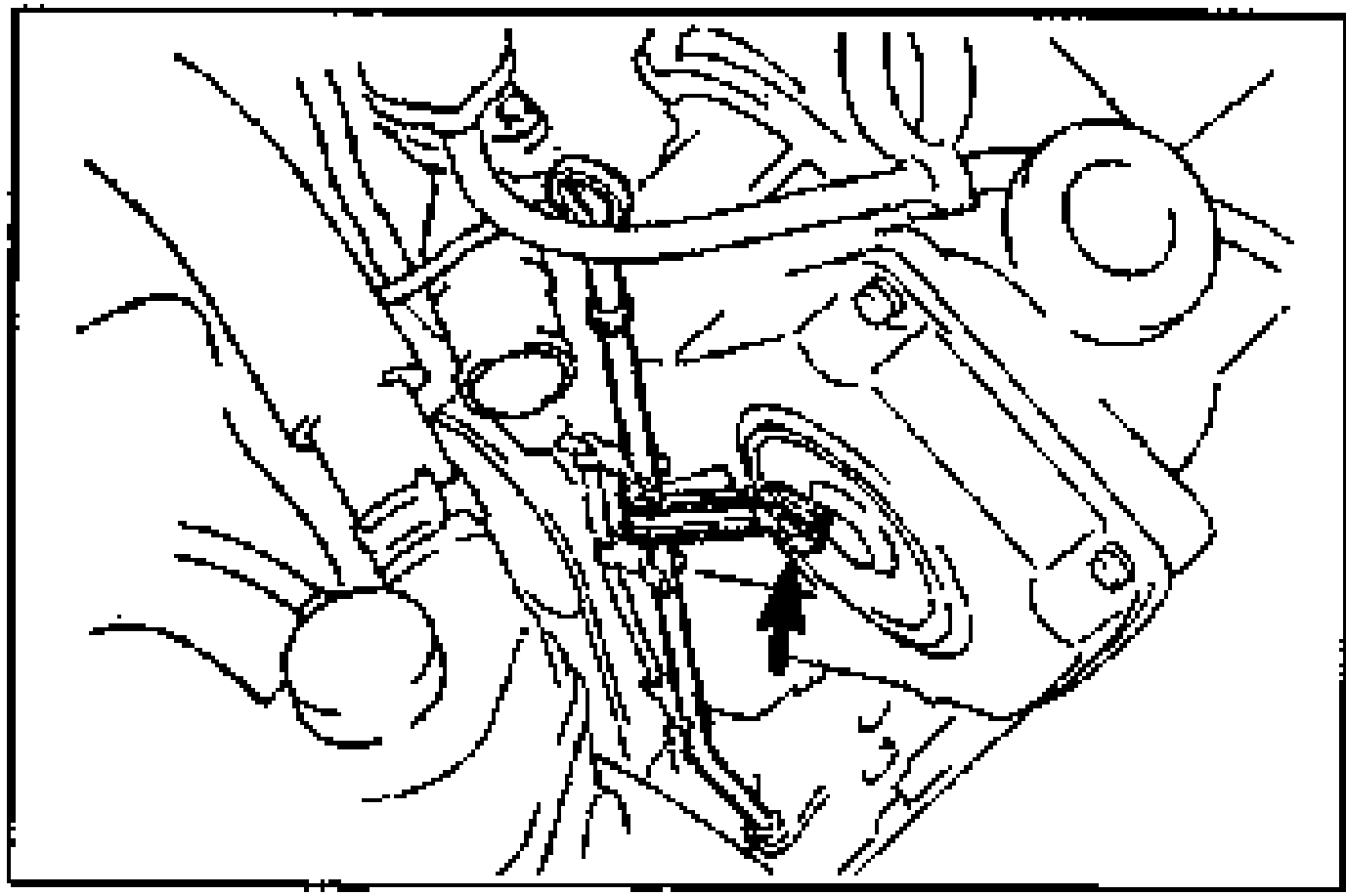

    Illustration of the dipstick and pipe; an arrow points to the dipstick pipe to be removed from the engine.
  4. 4
    Plug the hole in the engine after removing the pipe.

Timing belt cover

  1. 1
    Support the engine by using the SST (engine support).

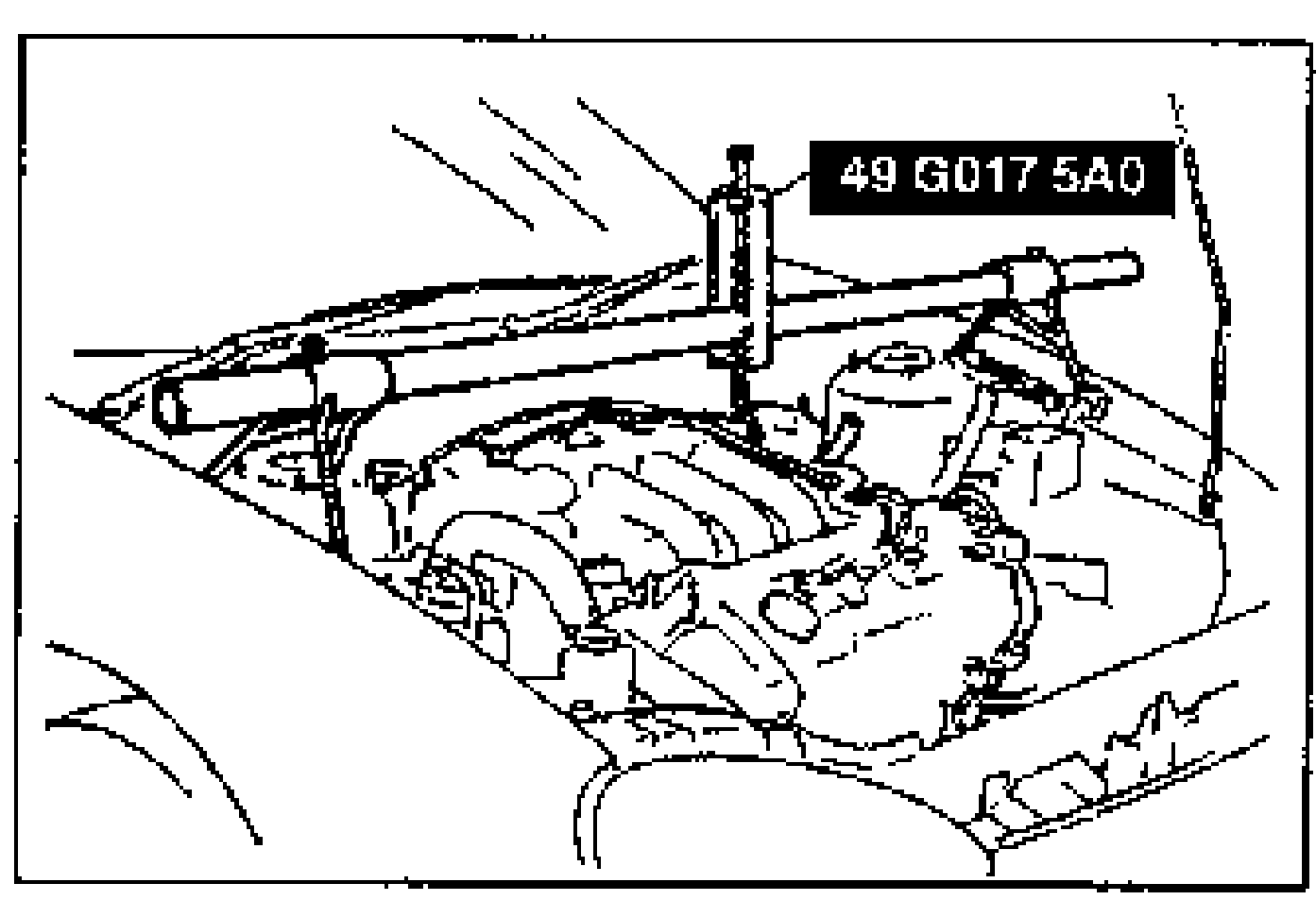

    Illustration of the engine being supported using SST engine support (49 G017 5A0) for timing belt cover removal.
