Cylinder Block (External Parts)
B2-96parts diagramTorque Specifications

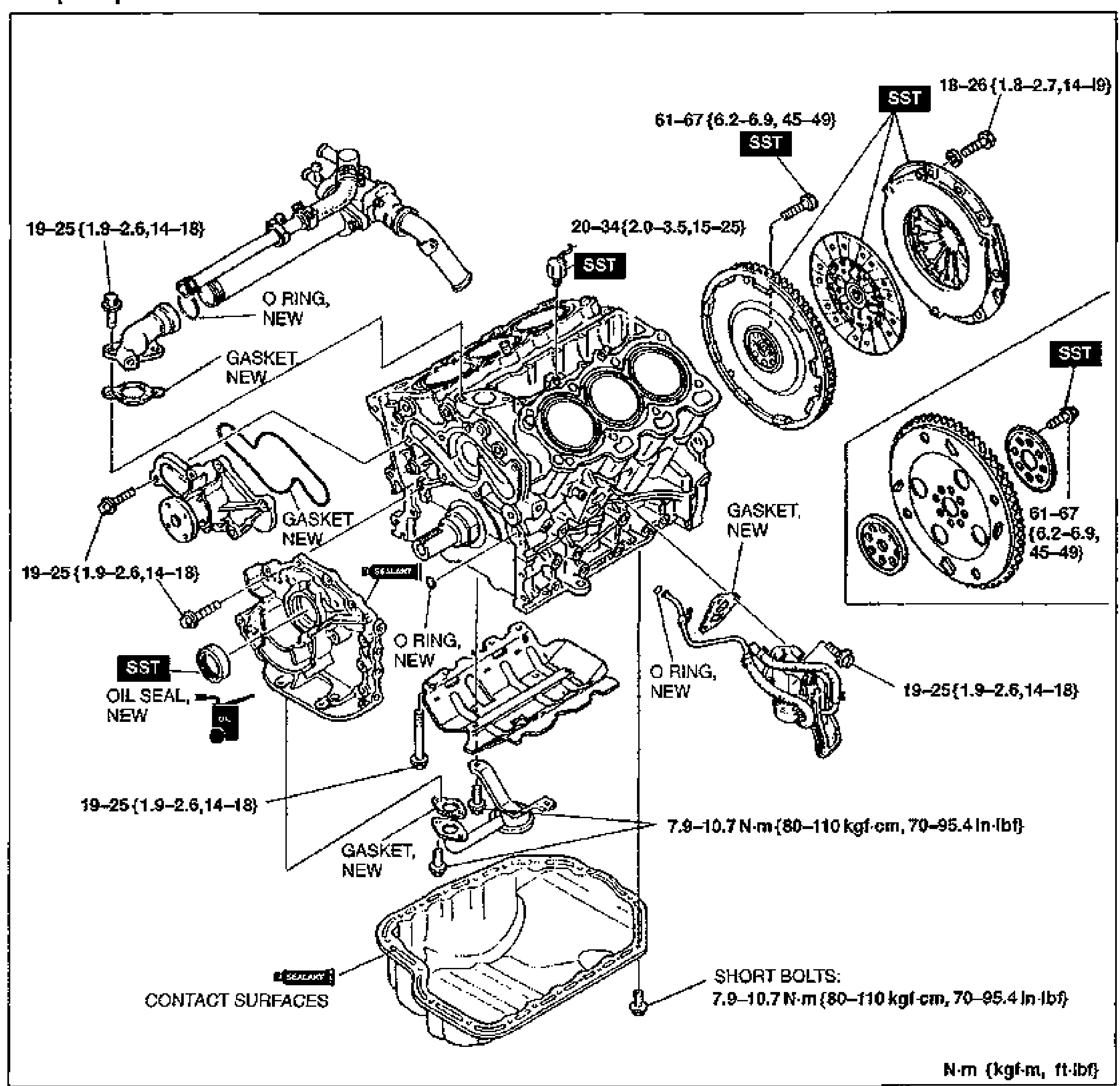

Parts DiagramFig. fig1
| Specification | Value |
|---|---|
| Water inlet pipe bolt | 19 - 25N·m |
| Flywheel / drive plate bolt | 61 - 67N·m |
| Pressure plate bolt | 18 - 26N·m |
| 20 - 34N·m | |
| Oil pump bolt | 19 - 25N·m |
| Oil strainer / baffle bolt | 7.9 - 10.7N·m |
| Oil pan short bolts | 7.9 - 10.7N·m |
Water inlet pipe bolt
19 - 25N·m
Flywheel / drive plate bolt
61 - 67N·m
Pressure plate bolt
18 - 26N·m
20 - 34N·m
Oil pump bolt
19 - 25N·m
Oil strainer / baffle bolt
7.9 - 10.7N·m
Oil pan short bolts
7.9 - 10.7N·m
Oil Pump
- 1Apply clean engine oil to the new oil seal.
- 2Install the oil seal into the oil pump body by hand.
- 3Press the oil seal into the oil pump body by using the SST.
| Specification | Value |
|---|---|
| Protrusionoil seal | 0-0.7mm {0-0.03 in} |
Protrusionoil seal
0-0.7mm {0-0.03 in}
