DISASSEMBLY — Disassembly Note (Clutch cover/disc, Flywheel, Backing/drive plate, Water pipe and thermostat housing)

B2-67prose procedure

MTX (clutch cover/disc, flywheel) vs ATX (backing plate, drive plate, adapter) distinction.

Disassembly Note

Clutch cover, clutch disc (MTX)

  1. 1
    Hold the flywheel by using the SST.

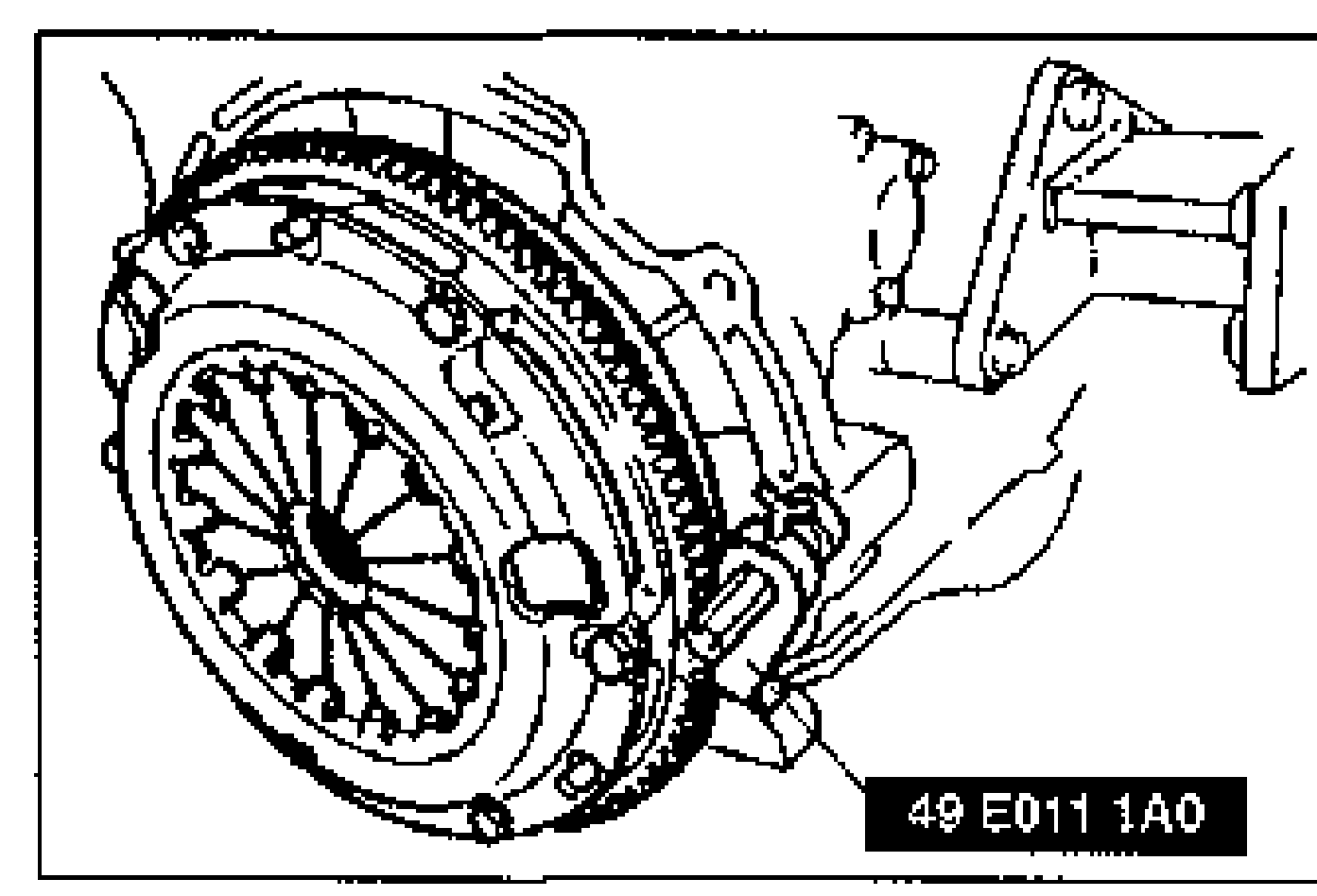

    Clutch cover/disc assembly held by the SST (49 E011 1A0) while removing the clutch cover bolts.
    49 E011 1A0
  2. 2
    Remove the clutch cover bolts in two or three steps.
  3. 3
    Remove the clutch cover.
  4. 4
    Remove the clutch cover and disc.

Flywheel (MTX)

  1. 1
    Hold the flywheel by using the SST.

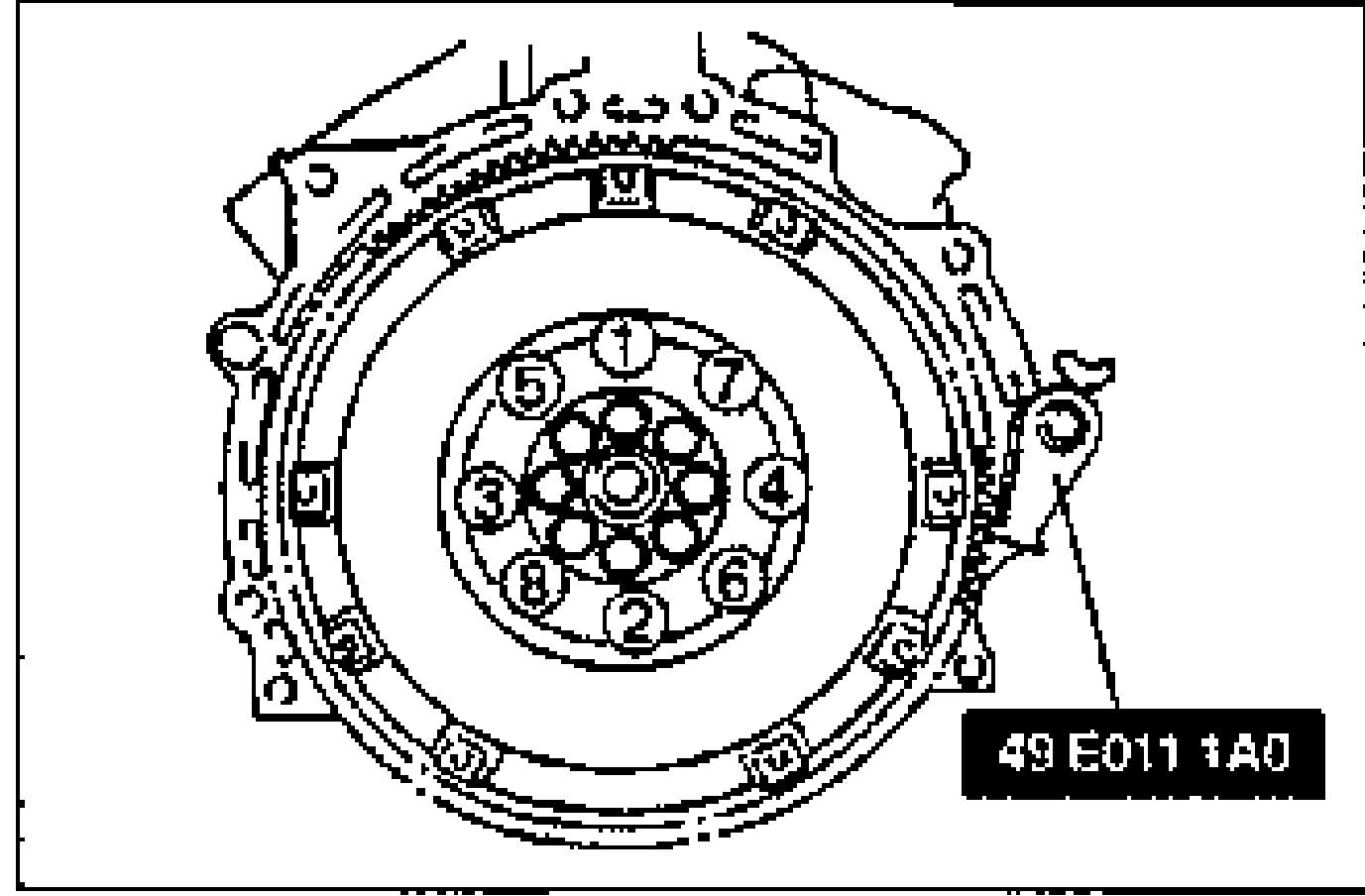

    Flywheel face view showing the flywheel bolt loosening order numbered 1-8, with the SST (49 E011 1A0) holding the flywheel.
    49 E011 1A0
  2. 2
    Remove the flywheel bolts in two or three steps in the order shown.
  3. 3
    Remove the flywheel.
  4. 4
    Remove the SST.

Backing plate, drive plate, and adapter (ATX)

  1. 1
    Hold the drive plate by using the SST.
    Drawing of the ATX backing plate, drive plate, and adapter with a bolt, shown separated.
  2. 2
    Remove the drive plate bolts in two or three steps. (Refer to above.)
  3. 3
    Remove the backing plate, drive plate, and adapter.
  4. 4
    Remove the SST.

Water pipe and thermostat housing

  1. 1
    Disconnect the clip and separate the knock sensor harness from the water pipe.
    Drawing of the cylinder block with arrows showing where to disconnect the clip and separate the knock sensor harness from the water pipe.
  2. 2
    Remove the water pipe and thermostat housing as an assembly.
    Drawing of the water pipe and thermostat housing assembly with arrows pointing to the mounting bolts, to be removed as an assembly.
