Engine Stand Mounting — Procedure

B2-53prose procedure

Two alternative SST configurations: 49 E010 1A0, or 49 E010 1A1 with 49 L010 1A0.

Continued from B2-52

PROCEDURE

When using 49 E010 1A0

  1. 1
    Remove the right exhaust manifold insulator.
    Photo of the right exhaust manifold insulator / EGR valve area, showing the manifold and bolt locations to be removed.
  2. 2
    Remove the EGR valve bolts.
  3. 3
    Remove the right exhaust manifold and gasket together with the EGR valve and pipe.
    Photo of the right exhaust manifold removed together with the gasket, EGR valve and pipe.
  4. 4
    Install the SST at the positions shown.
    Photo showing the SST hanger (body 49 E010 101) installed on the engine at the indicated positions, secured with bolts 49 E010 102.
  5. 5
    Mount the engine on the SST.

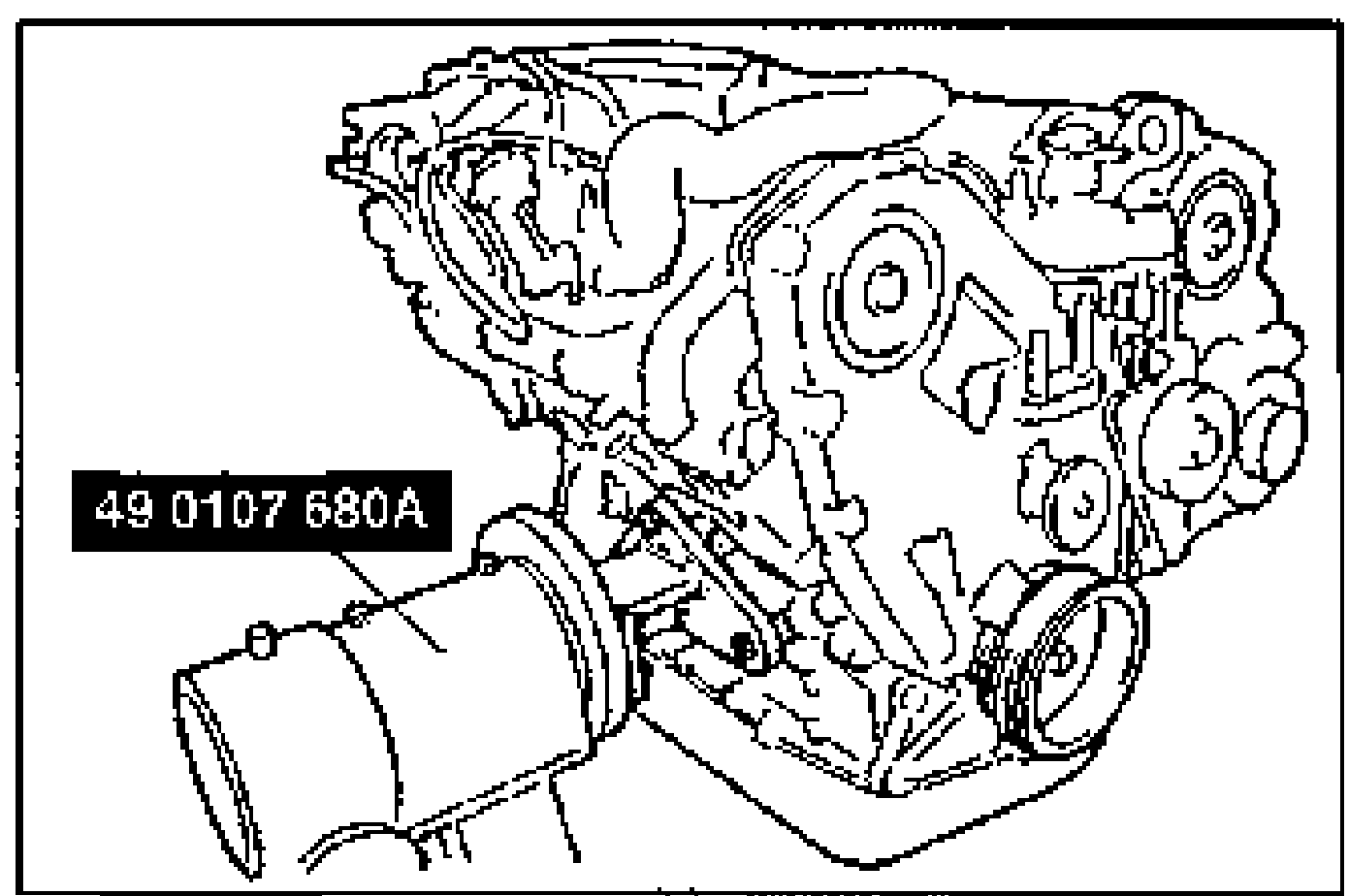

    Photo of the engine mounted on the engine stand SST 49 0107 680A.

When using 49 E010 1A1 and 49 L010 1A0

  1. 1
    Remove the right exhaust manifold insulator.
    Photo for the 49 E010 1A1 / 49 L010 1A0 alternative, showing the hanger 49 E010 103 installed and secured with bolts 49 E010 102.
  2. 2
    Remove the right exhaust manifold and gasket.
  3. 3
    Install the SST as shown.
