ON-VEHICLE MAINTENANCE — Hoses / Steps After Installation

B2-39prose procedure

V6 (K8-ZE) engine hose routing.

Hoses

Component LocationFig. fig1

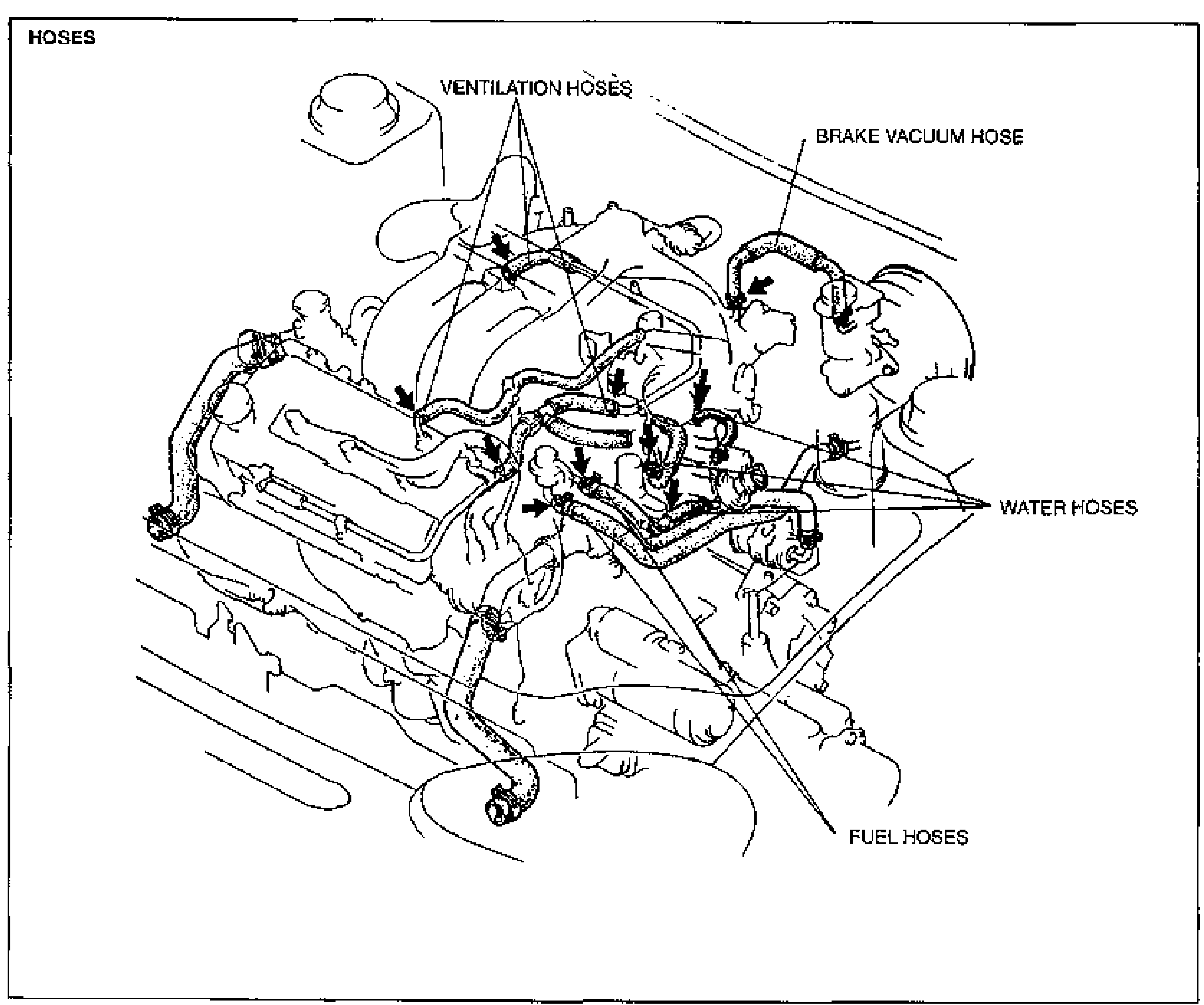

Engine-bay hose routing for the V6 engine showing ventilation hoses, brake vacuum hose, water hoses, and fuel hoses connection points.

1Ventilation hoses(top center)

2Brake vacuum hose(top right)

3Water hoses(right side)

4Fuel hoses(lower right)

1
Install the timing belt. (Refer to page B2-13.)
2
Fill the radiator with the specified amount and type of engine coolant. (Refer to section E2.)
3
Start the engine and (1) check the engine oil and engine coolant leakage. (2) check the ignition timing and idle speed. (Refer to pages B2-8, 9.) (3) check the operation of the emission control system. (Refer to section F2.)
4
Recheck the engine coolant and oil levels.
