Engine (K8)›B2-124

INSTALLATION

B2-124component photo

Continued from B2-123

Step 4

4

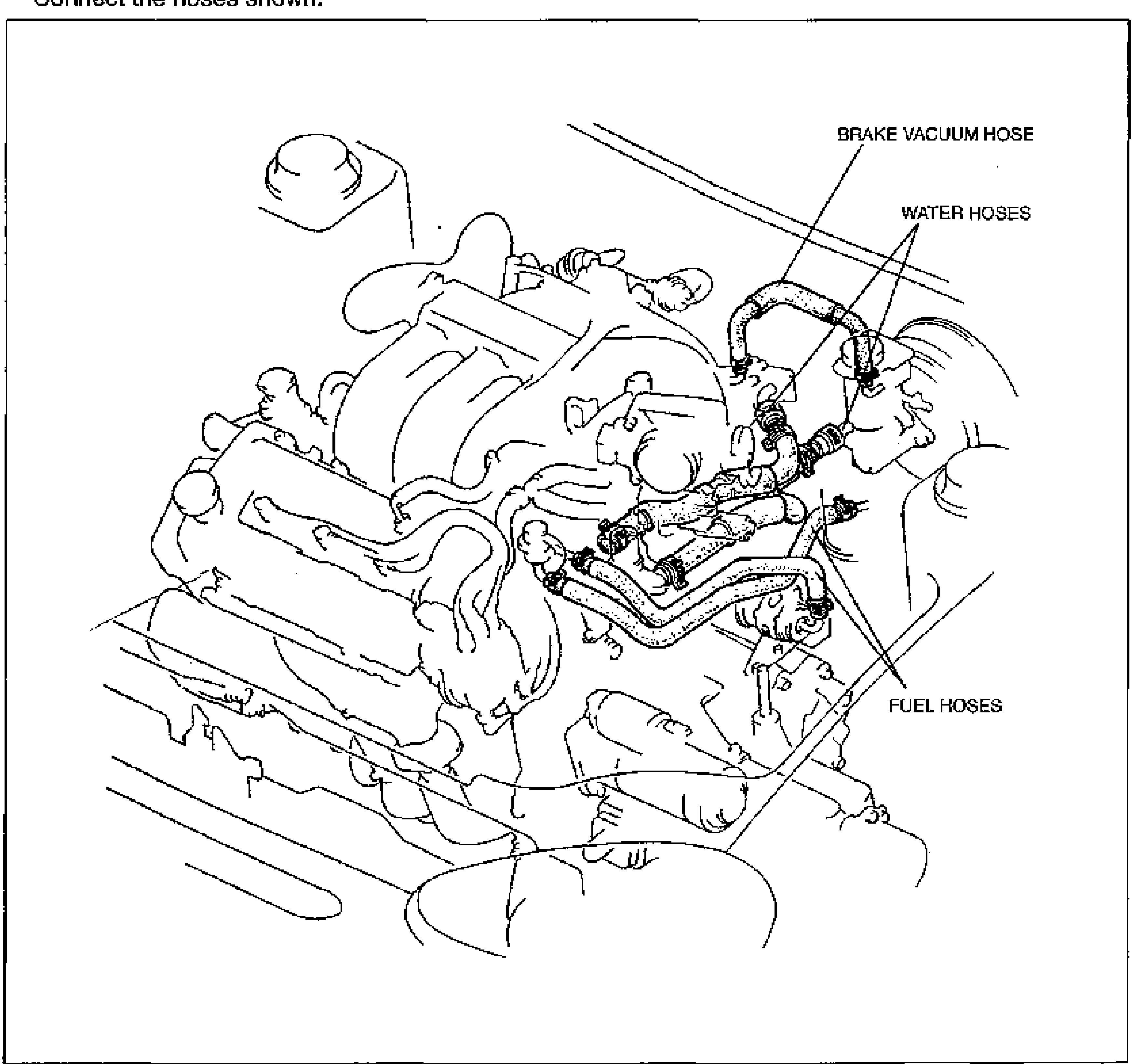

Connect the hoses shown.
