Mazda MX-3 silhouetteMX-3

INSTALLATION

B2-118prose procedure

Throttle cable and torque converter nut steps are ATX (automatic transaxle) only. K8-ZE V6 engine.

Continued from B2-117

No.2 engine mount rubber and bracket

  1. 1
    Install the mount rubber and bracket.
    Transaxle housing with the No.2 engine mount rubber and bracket being installed, showing the mount and its bolt.
No.2 engine mount rubber and bracket
38 - 51N·m

Starter

  1. 1
    Install the starter to the transaxle housing.

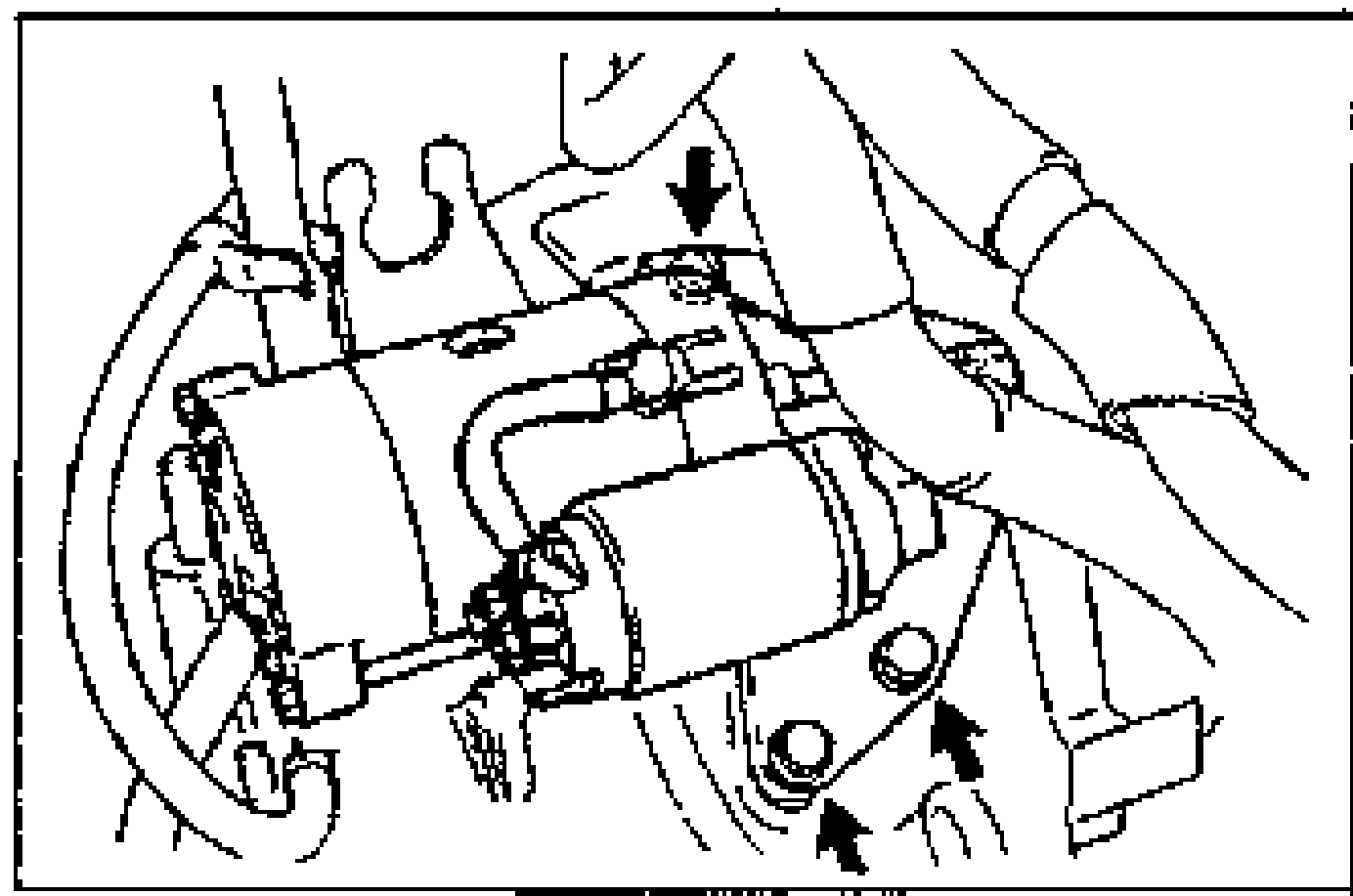

    Starter motor being installed onto the transaxle housing. Arrows point to the starter mounting bolt locations.
starter
38 - 51N·m

Seal plate

  1. 1
    Install the seal plate.
    Seal plate installed at the lower engine/transaxle joint, showing the plate and its mounting bolts.
seal plate
38 - 51N·m

Throttle cable (ATX)

  1. 1
    Install the throttle cable.
    Throttle cable (ATX) being installed and routed to the throttle body / transaxle, with its attachment bolt.
throttle cable (ATX)
6.9 - 9.8N·m

Torque converter nut (ATX)

  1. 1
    Hold the drive plate by using a screwdriver inserted through the service hole from the converter housing side.
    Torque converter nut tightening (ATX): a tool is held against the drive plate through the service hole while a torque wrench is inserted through the service hole from the oil pan side.
  2. 2
    Insert a torque wrench through the service hole from the oil pan side. Tighten the nuts evenly and gradually.
torque converter nut (ATX)
35 - 49N·m
