LH (left) exhaust manifold and insulator. K8-ZE V6 engine. Bracket/tensioner bolt tightening sequence: hand tighten 1 then 2; final tighten 2 then 1.

Continued from B2-113

Distributor

  1. 1
    Apply clean engine oil to a new O-ring and position it on the distributor.
    Distributor area showing the distributor body being installed. Callouts label 'GROOVE' and 'SHAFT GEAR MARK' indicating the alignment marks on the distributor body and shaft gear, plus an 'OIL' applicator symbol.
  2. 2
    Apply engine oil to the drive blade.
  3. 3
    Align the groove of the distributor body and shaft gear mark.
  4. 4
    Install the distributor with the blade fit into the camshaft groove.
  5. 5
    Hand tighten the distributor mounting bolts.

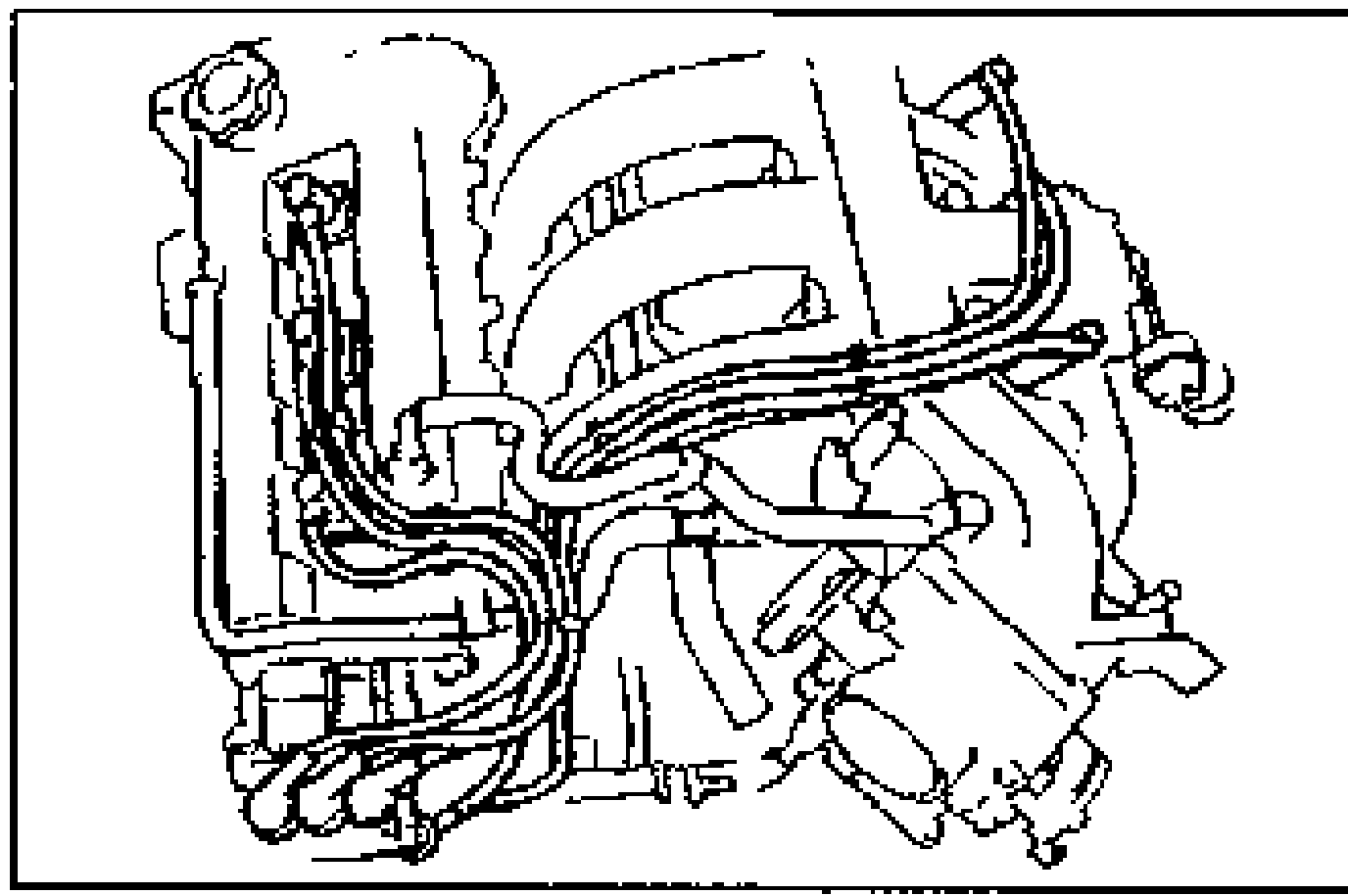

    Engine view showing the distributor mounting bolts and high-tension leads (spark plug wires) being connected.
  6. 6
    Connect the high-tension leads.

Exhaust Manifold Assembly (LH)

  1. 1
    Place a new gasket in position.
    Left (LH) exhaust manifold installed on the cylinder head, showing the manifold and its mounting bolts with a new gasket in position.
  2. 2
    Install the left exhaust manifold.
left exhaust manifold
19 - 25N·m

Exhaust Manifold Insulator (LH)

  1. 1
    Install the left exhaust manifold insulator.

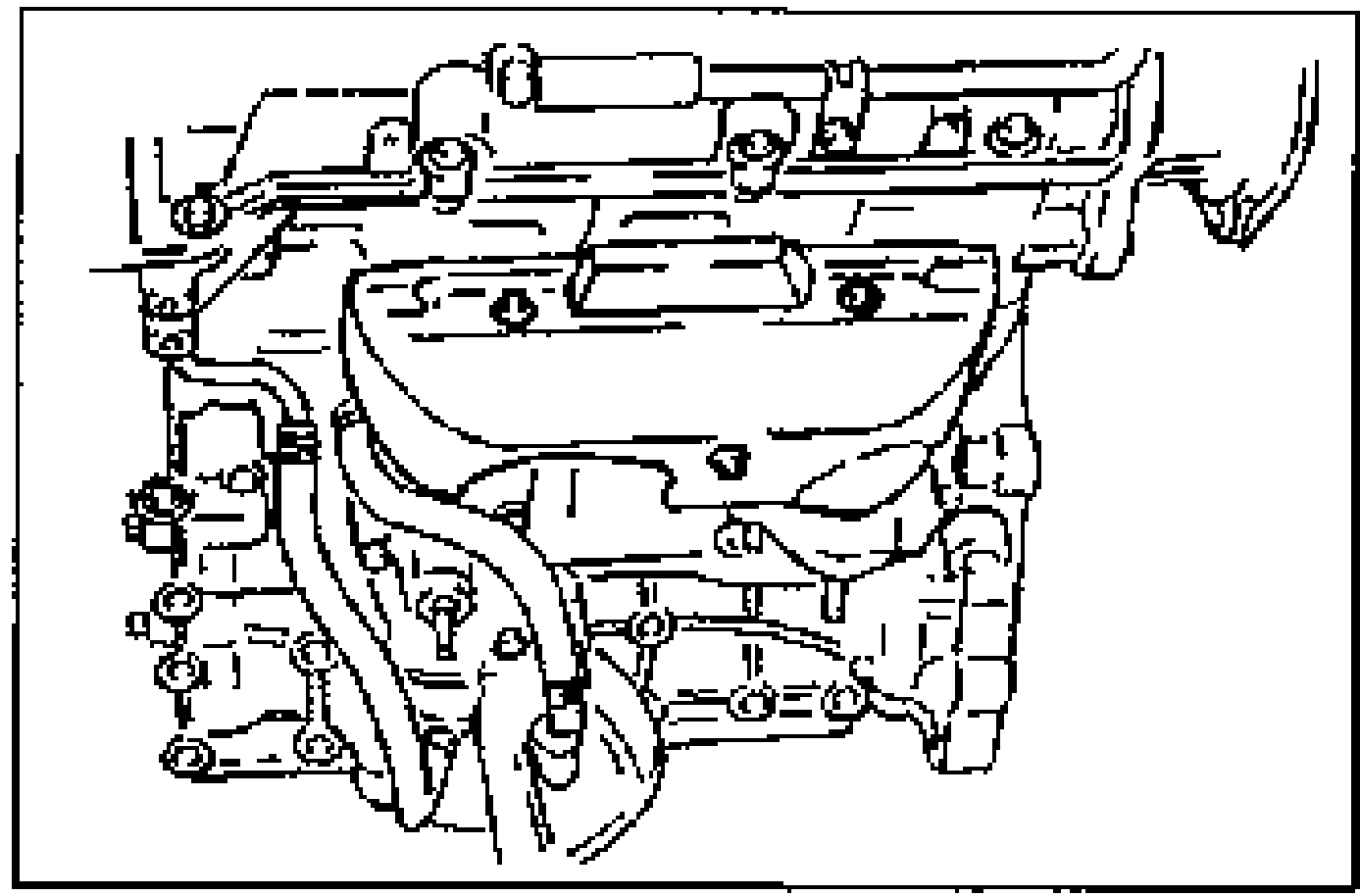

    Left (LH) exhaust manifold insulator (heat shield) being installed over the exhaust manifold.
left exhaust manifold insulator
7.9 - 10.7N·m

Bracket and Tensioner

  1. 1
    Install the bracket and tensioner.

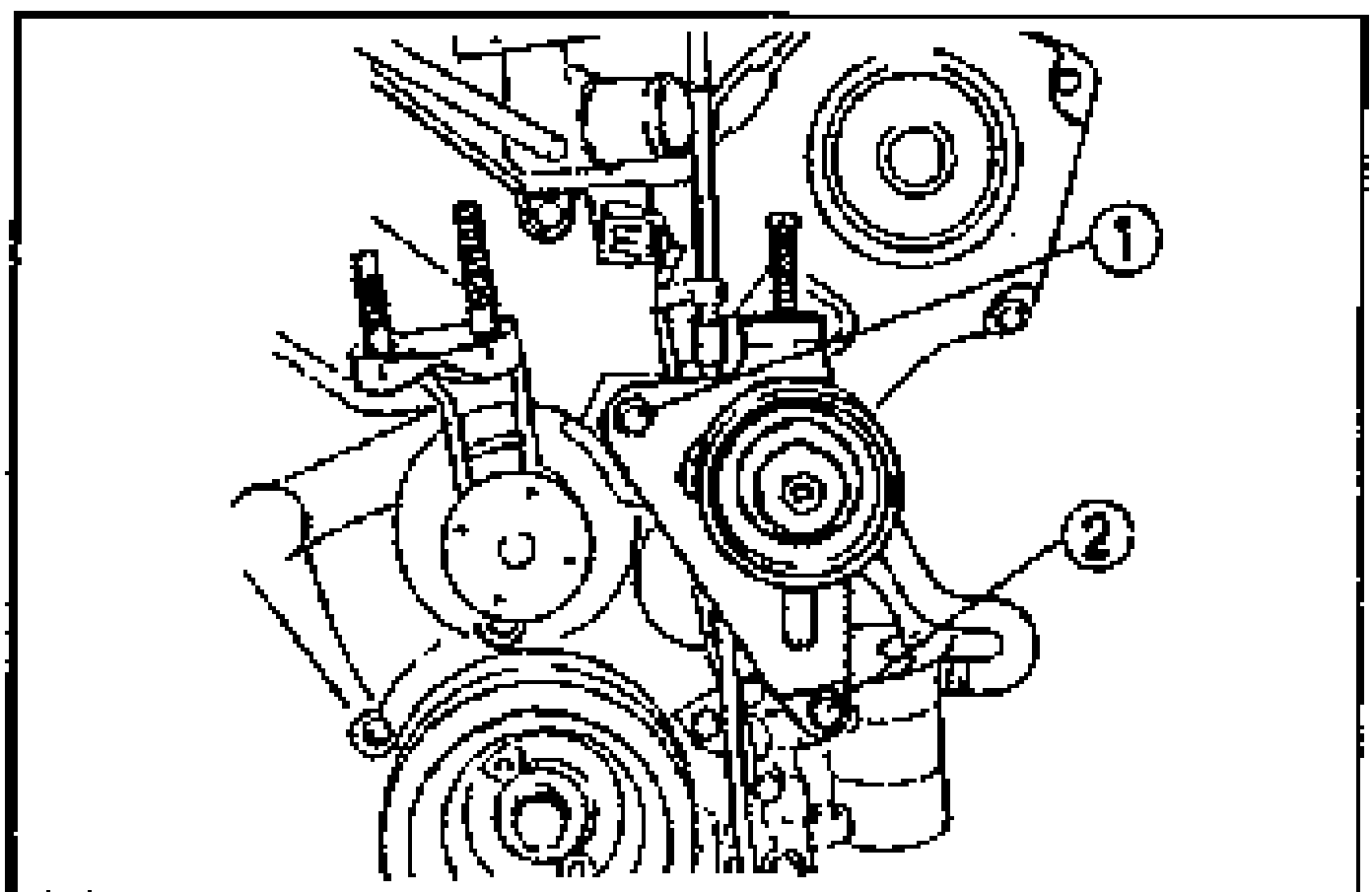

    Bracket and tensioner installed on the engine front. Numbered callouts (1) and (2) indicate the two bolts and their tightening sequence.
  2. 2
    Hand tighten the bolt (1), then bolt (2).
  3. 3
    Tighten the bolt (2), then bolt (1) to the specified torque.
bracket and tensioner
19 - 25N·m
