ASSEMBLY — Camshaft / Water outlet / Seal Plate

B2-104prose procedure

K8-ZE V6 — distributor mounted on LH cylinder head.

Continued from B2-103

Camshaft (continued)

  1. 9
    Install the distributor cap. (LH cylinder head)
    Tightening torque: 11.3—14.2 N·m {115—145 kgf·cm, 100—125 in·lbf}

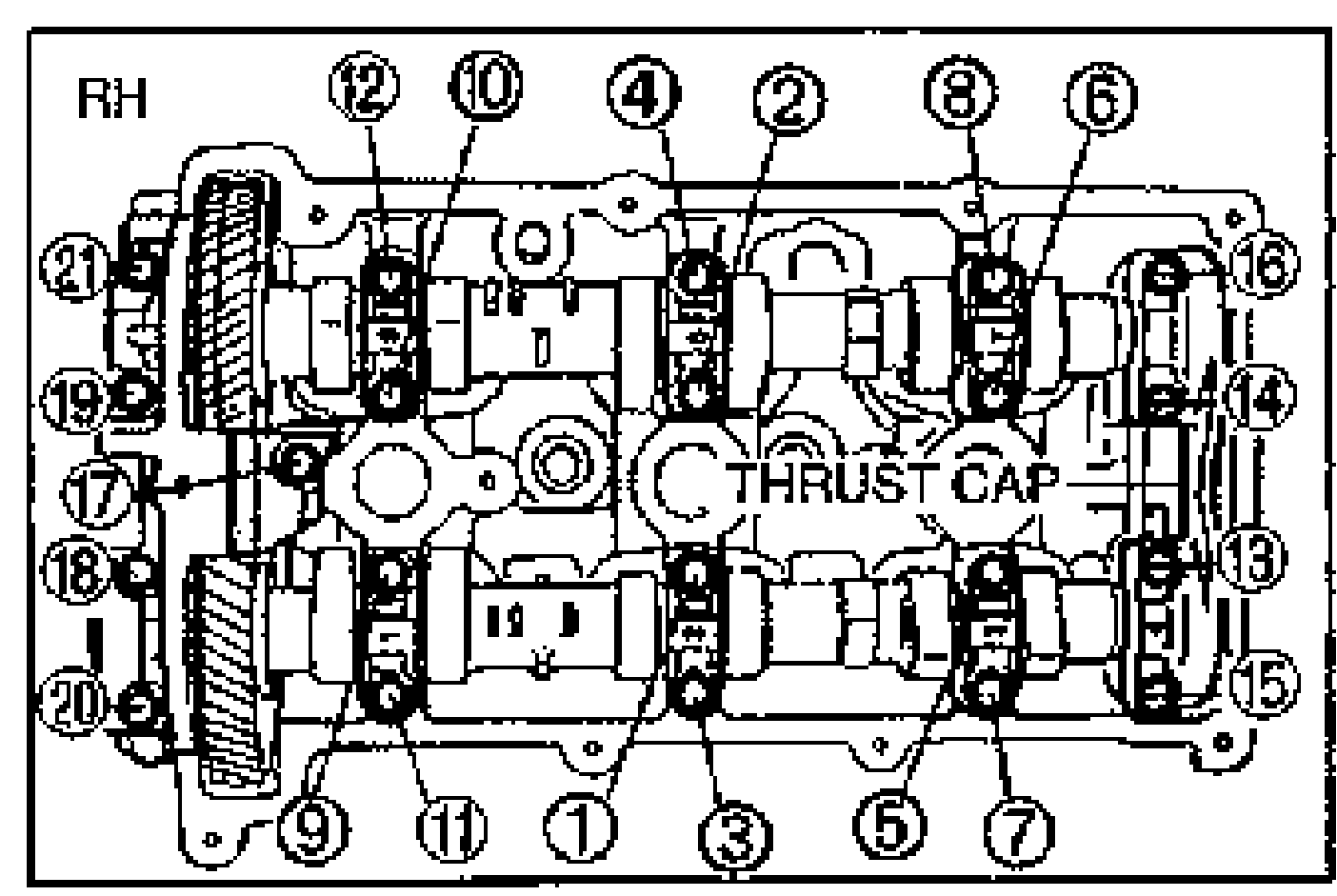

    RH cylinder head top view showing camshaft cap and distributor cap tightening sequence with numbered balloon callouts 1 through 21 indicating the bolt tightening order. THRUST CAP label identifies the center thrust cap.
  2. 10
    Apply clean engine oil to the lip of the new camshaft oil seal.
    Tapping the new camshaft oil seal in evenly using SST 49 F401 331 and 49 F401 337A over the camshaft end.
  3. 11
    Push the oil seal slightly in by hand.
  4. 12
    Tap the camshaft oil seal in evenly by using the SST and a hammer.
    Protrusion: 0—0.5mm {0—0.020 in}

Blind cap

  1. 11
    Tap in the new blind cap by using a plastic hammer.
    Step is printed as '11' on the page (manual numbering oddity).
    Tapping in the new blind cap at the rear of the camshaft using a plastic hammer.
Distributor capLH cylinder head
11.3 - 14.2N·m
Camshaft oil seal protrusion
0—0.5mm {0—0.020 in}mm

Water outlet

  1. 1
    Install the water outlet with new O-rings.
    Tightening torque: 19—25 N·m {1.9—2.6 kgf·m, 14—18 ft·lbf}

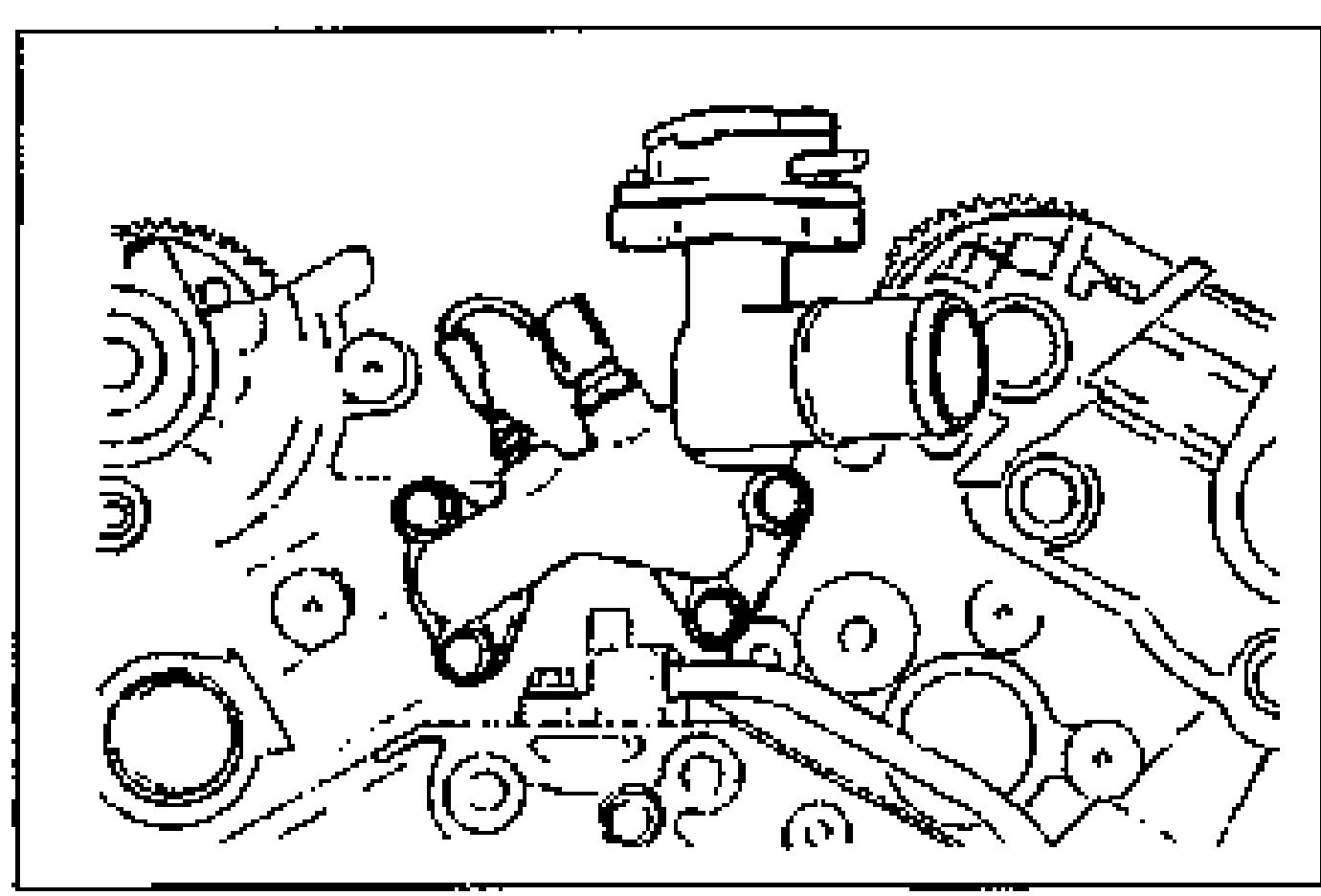

    Water outlet installation on the engine front, fitted with new O-rings between the cylinder heads.
Water outlet
19 - 25N·m

Seal Plate

  1. 1
    Install the seal plate.
    Tightening torque: 7.9—10.7 N·m {80—110 kgf·cm, 70—95.4 in·lbf}

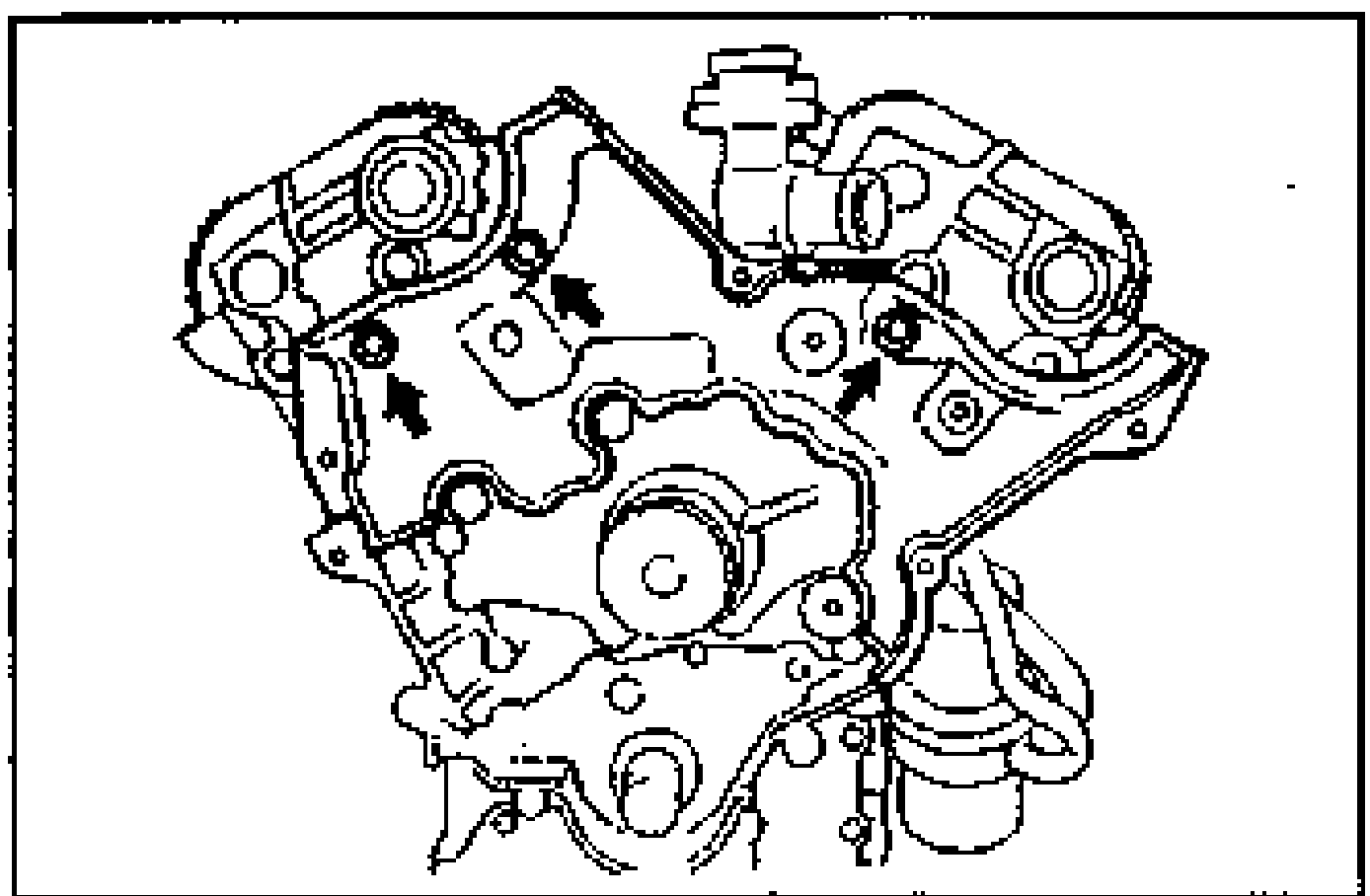

    Seal plate installation at the engine front. Arrows point to the seal plate bolt locations.
Seal plate
7.9 - 10.7N·m
