INSTALLATION
B2-128prose procedureControl cable step applies to ATX (automatic transaxle).
P/S oil reservoir (continued)
- 7Install the P/S oil reservoir and the engine ground.
| Specification | Value |
|---|---|
| Tightening torque (P/S oil reservoir / engine ground)step 7 | 6.9 - 9.8N·m |
Tightening torque (P/S oil reservoir / engine ground)step 7
6.9 - 9.8N·m
Drive belt
- 1Install the P/S and/or A/C drive belt.
- 2Install the generator drive belt.
- 3Adjust the drive belt deflection. (Refer to page B2-7.)

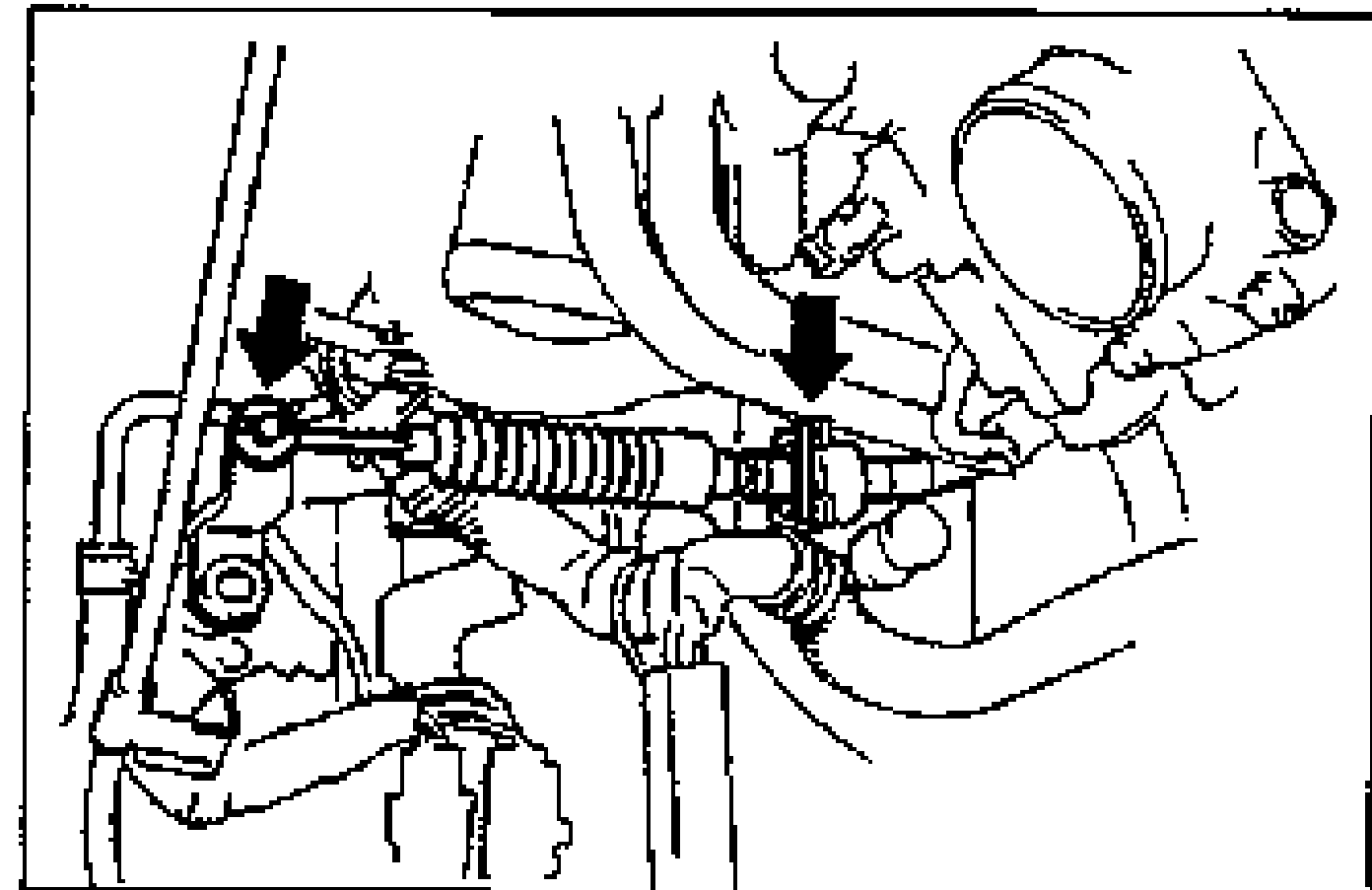

Control cable (ATX)
- 1Install the control cable.
Battery duct
- 1Install the battery duct.
Coolant reservoir
- 1Install the coolant reservoir.
| Specification | Value |
|---|---|
| Tightening torque (coolant reservoir) | 6.9 - 9.8N·m |
Tightening torque (coolant reservoir)
6.9 - 9.8N·m
Radiator and coolant fan assembly
- 1Install the radiator and coolant fan assembly. Secure the shroud upper panel.
| Specification | Value |
|---|---|
| Tightening torque (shroud upper panel) | 6.9 - 9.8N·m |
Tightening torque (shroud upper panel)
6.9 - 9.8N·m
