ON-VEHICLE MAINTENANCE
B2-20prose procedureHarness bracket and engine mount
- 4Install the harness bracket on the right timing belt cover.
- 5Install the No.3 engine mount.
- 6Remove the SST (engine support).
| Specification | Value |
|---|---|
| Tightening torque (harness bracket)step 4 | ≈77 - 105N·m |
| Tightening torque (engine mount A)step 5, fastener A | ≈726 - 1000N·m |
| Tightening torque (engine mount B)step 5, fastener B | ≈843 - 1138N·m |
Tightening torque (harness bracket)step 4
77 - 105N·m
Tightening torque (engine mount A)step 5, fastener A
726 - 1000N·m
Tightening torque (engine mount B)step 5, fastener B
843 - 1138N·m

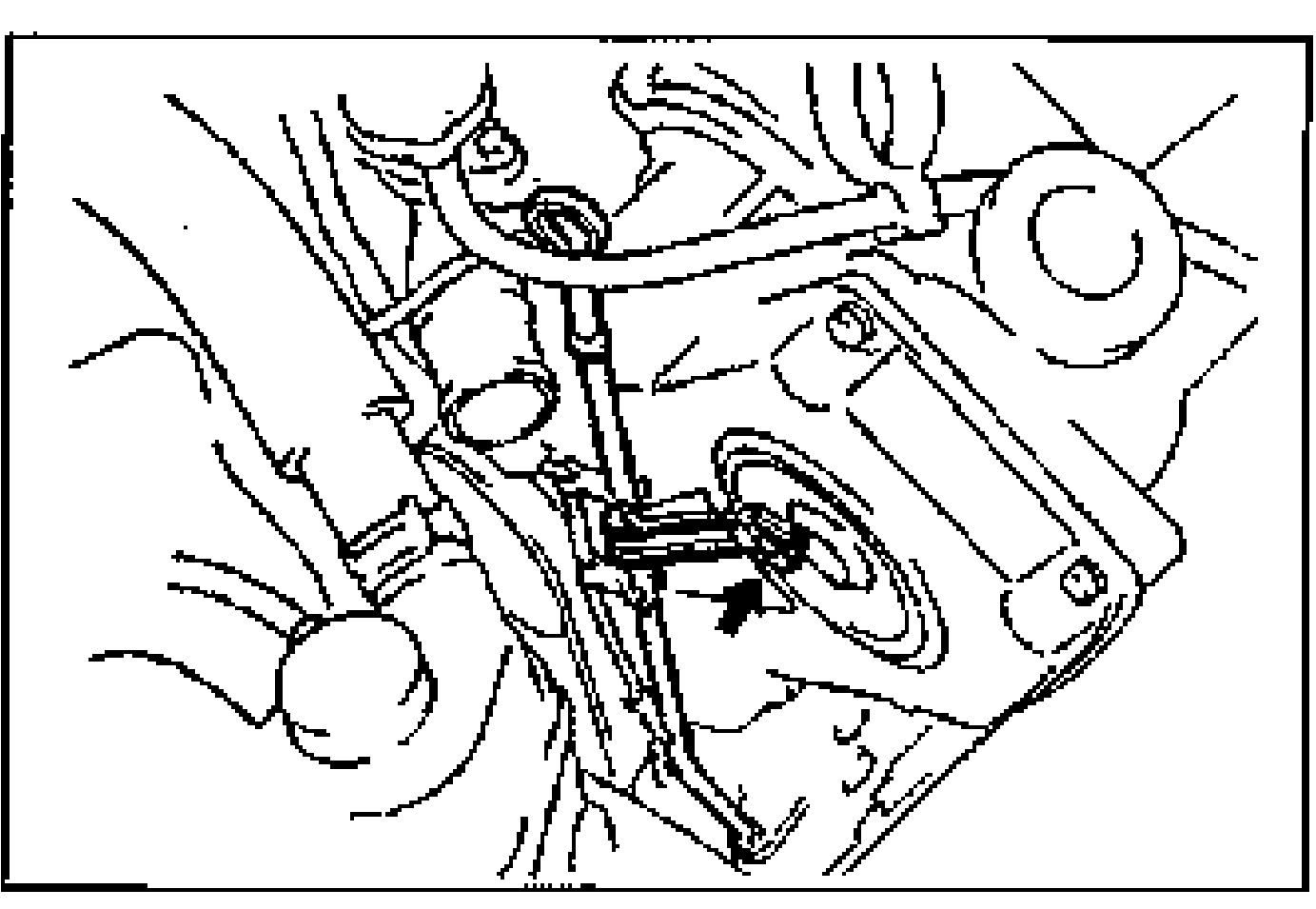

Dipstick and pipe
- 1Apply clean engine oil to a new O-ring, and install it on the pipe.
- 2Remove the plug from the engine and install the pipe.
- 3Install the dipstick.
- 4Install the crankshaft position sensor harness and clip to the dipstick pipe.
- 5Connect the connector.
| Specification | Value |
|---|---|
| Tightening torque (dipstick pipe)step 2 | ≈77 - 105N·m |
Tightening torque (dipstick pipe)step 2
77 - 105N·m
