REMOVAL — Removal Note: P/S oil pump

B2-45prose procedure
Continued from B2-44

Removal Note

P/S oil pump

P/S oil pump removal

  1. 1
    Disconnect the P/S oil pump hose from the engine.
  2. 2
    Disconnect the steering pressure sensor connector.
  3. 3
    Remove the bolts shown and secure the P/S oil reservoir away from the engine.
    Line drawing of the P/S oil reservoir area with two arrows pointing to bolt locations securing the reservoir.
  4. 4
    Loosen the pulley nut as shown.
    Line drawing showing the P/S oil pump pulley with a wrench loosening the pulley nut.
  5. 5
    Remove the pulley.
  6. 6
    Remove the bolt shown.
    Line drawing of the P/S oil pump bracket with an arrow pointing to a bolt to be removed.
  7. 7
    Remove the bolts shown and remove the P/S oil pump.

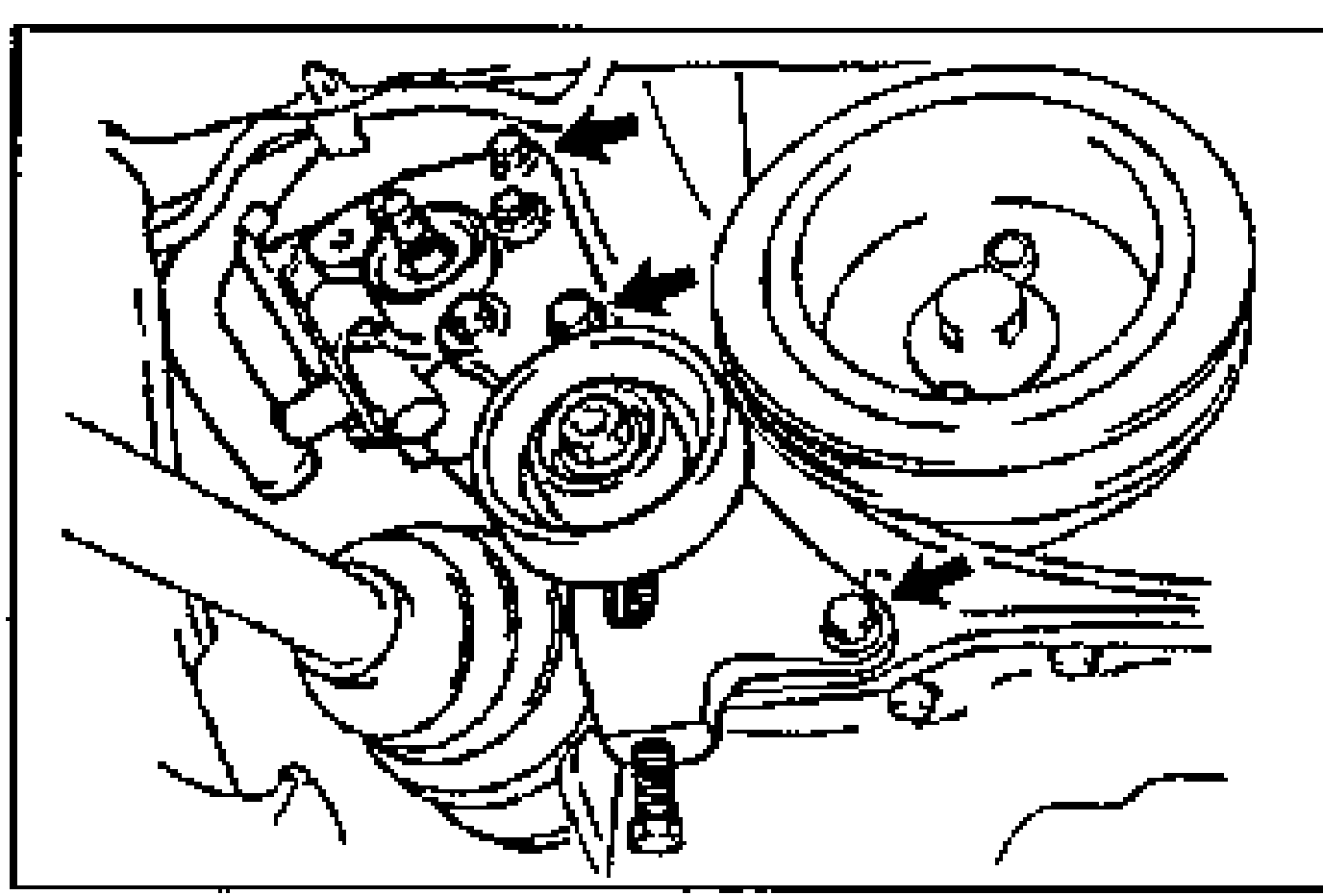

    Line drawing of the P/S oil pump and pulley with three arrows pointing to mounting bolts to be removed.
  8. 8
    Position the P/S oil pump away from the engine and secure it with wire.
