INSTALLATION

B2-129prose procedure

Oil cooler hose connection step applies to ATX (automatic transaxle).

Continued from B2-128

Radiator and coolant fan assembly (continued)

  1. 2
    Connect the upper and lower radiator hoses.

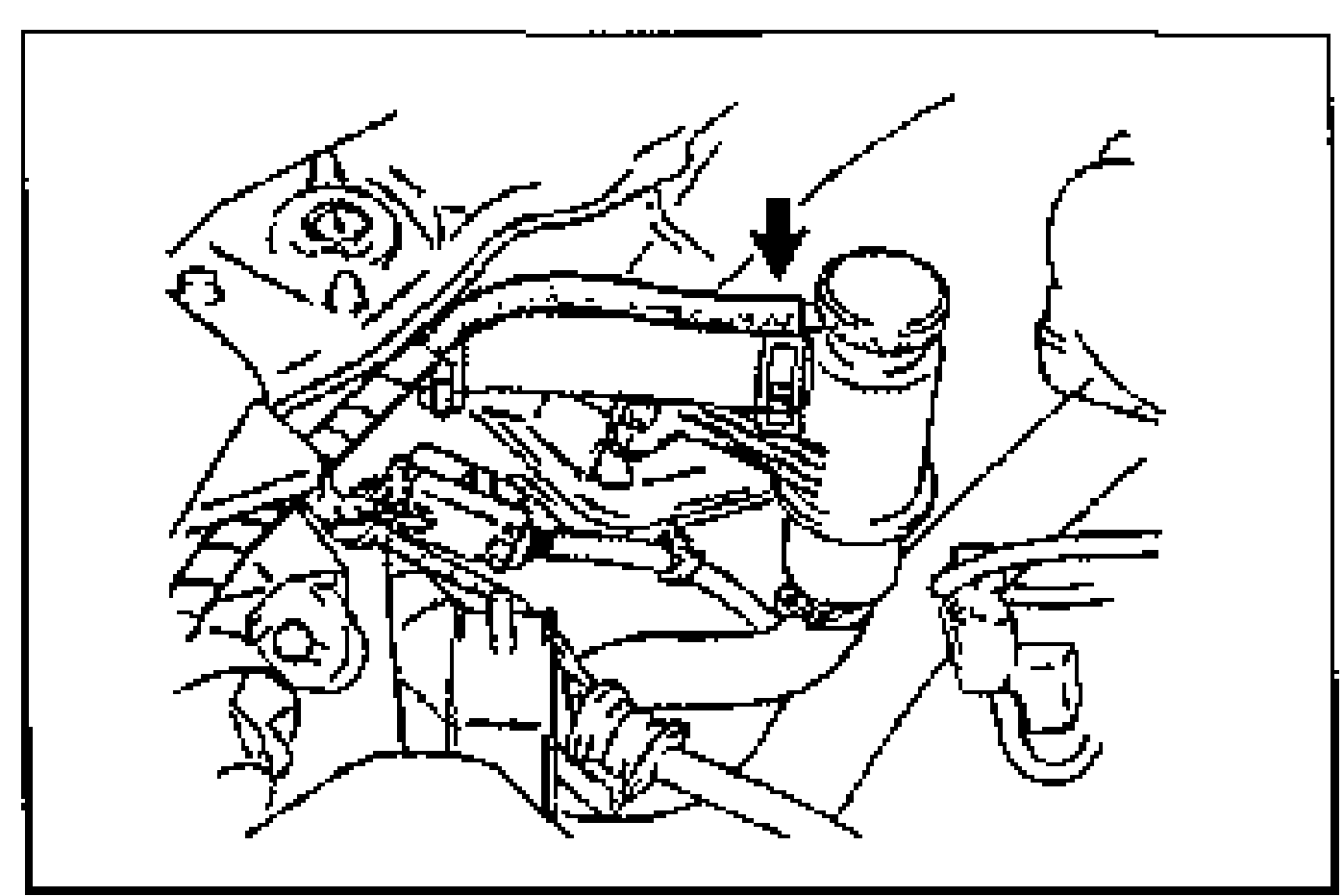

    Radiator/coolant area showing the upper and lower radiator hoses and the coolant reservoir hose; an arrow points to a hose connection.
  2. 3
    Connect the coolant reservoir hose.
  3. 4
    Connect the coolant fan motor connector.
  4. 5
    Connect the oil cooler hoses (ATX).

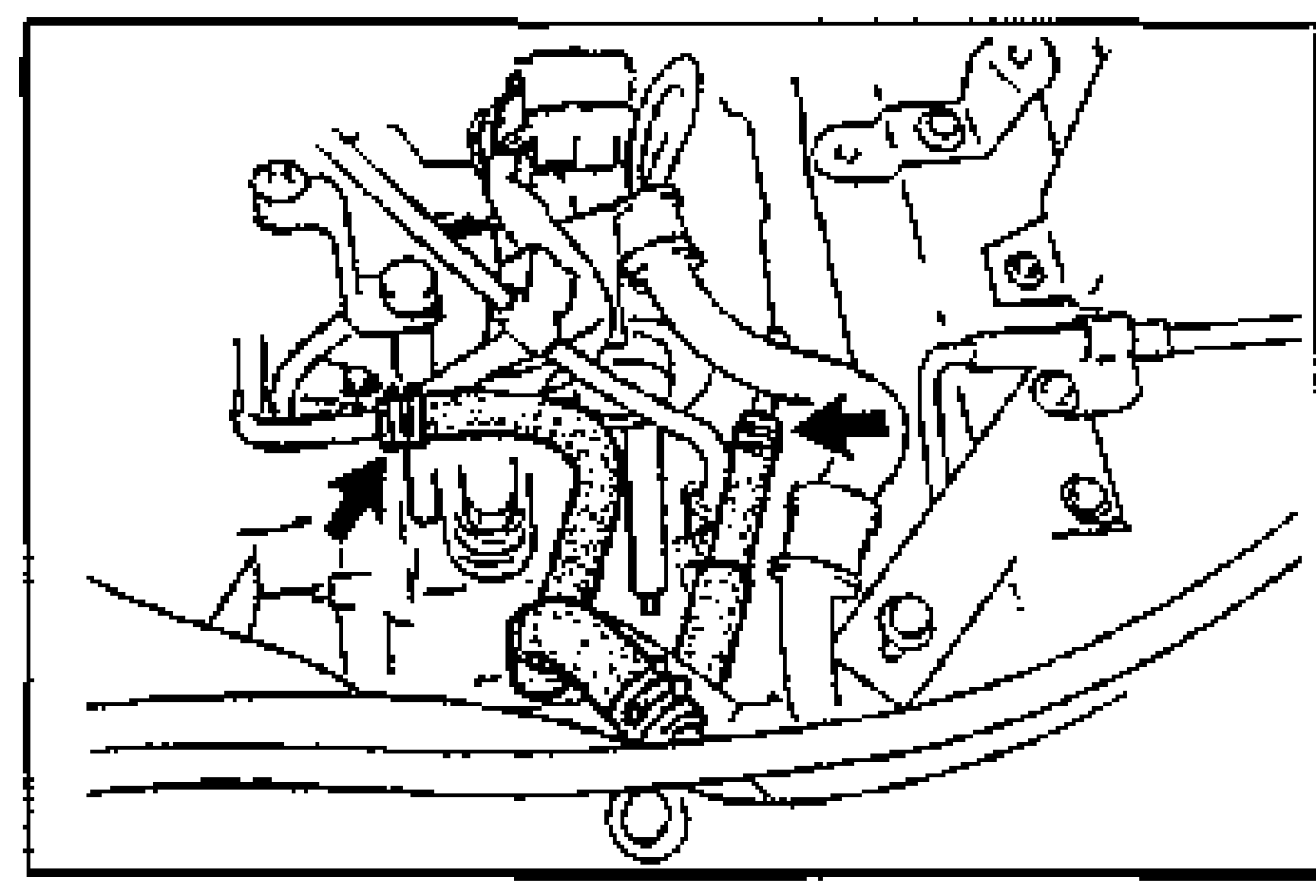

    Oil cooler hose (ATX) connections near the transaxle; arrows point to the two oil cooler hose connections.

Accelerator cable

  1. 1
    Install the accelerator cable.

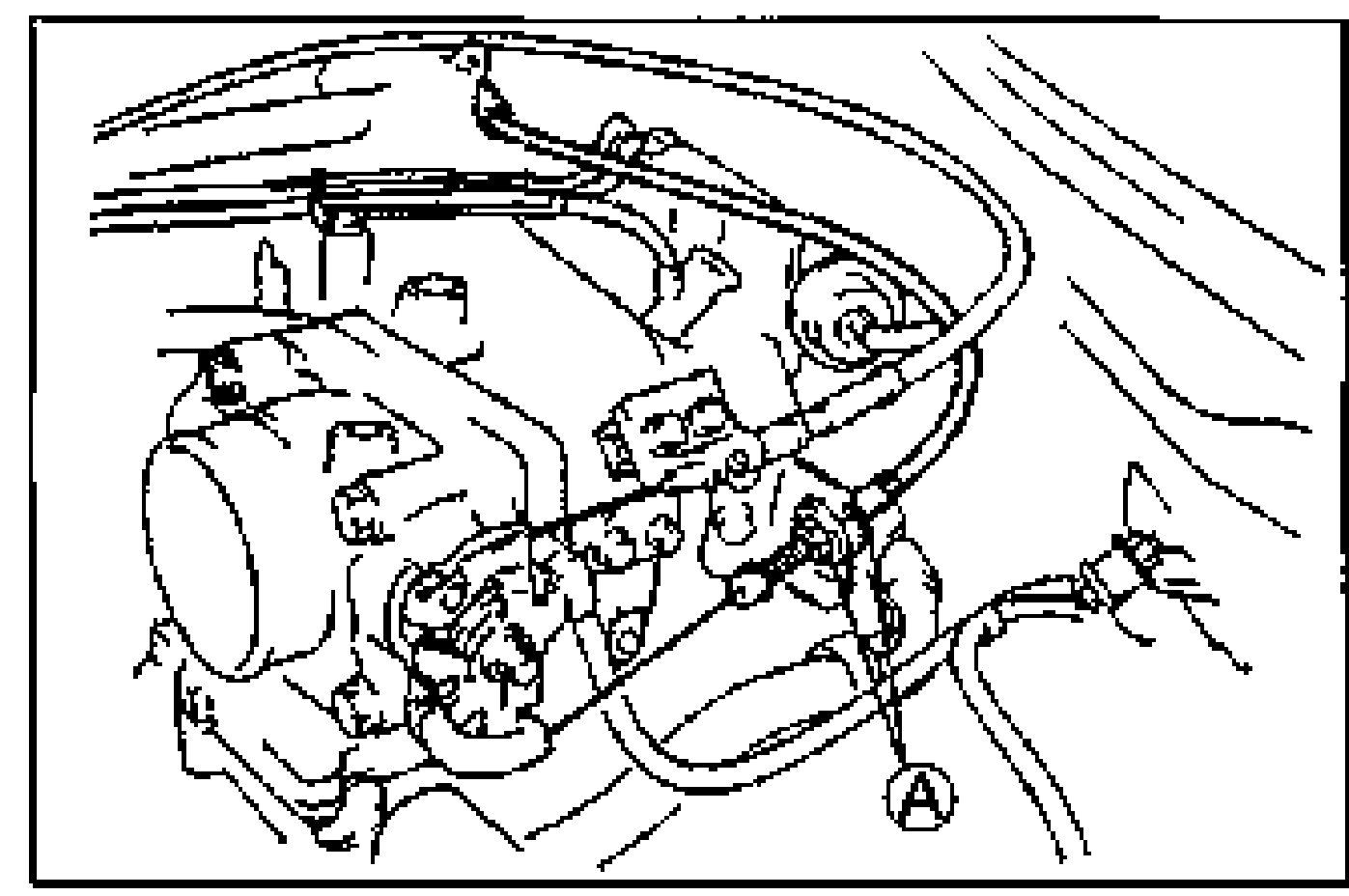

    Accelerator cable installed near the throttle body; balloon A marks the adjusting nuts used to set cable deflection.
  2. 2
    Adjust the cable deflection by turning nuts A.
Deflection (accelerator cable)
1-3mm {0.04-0.11 in}

Battery and carrier

  1. 1
    Install the battery carrier.

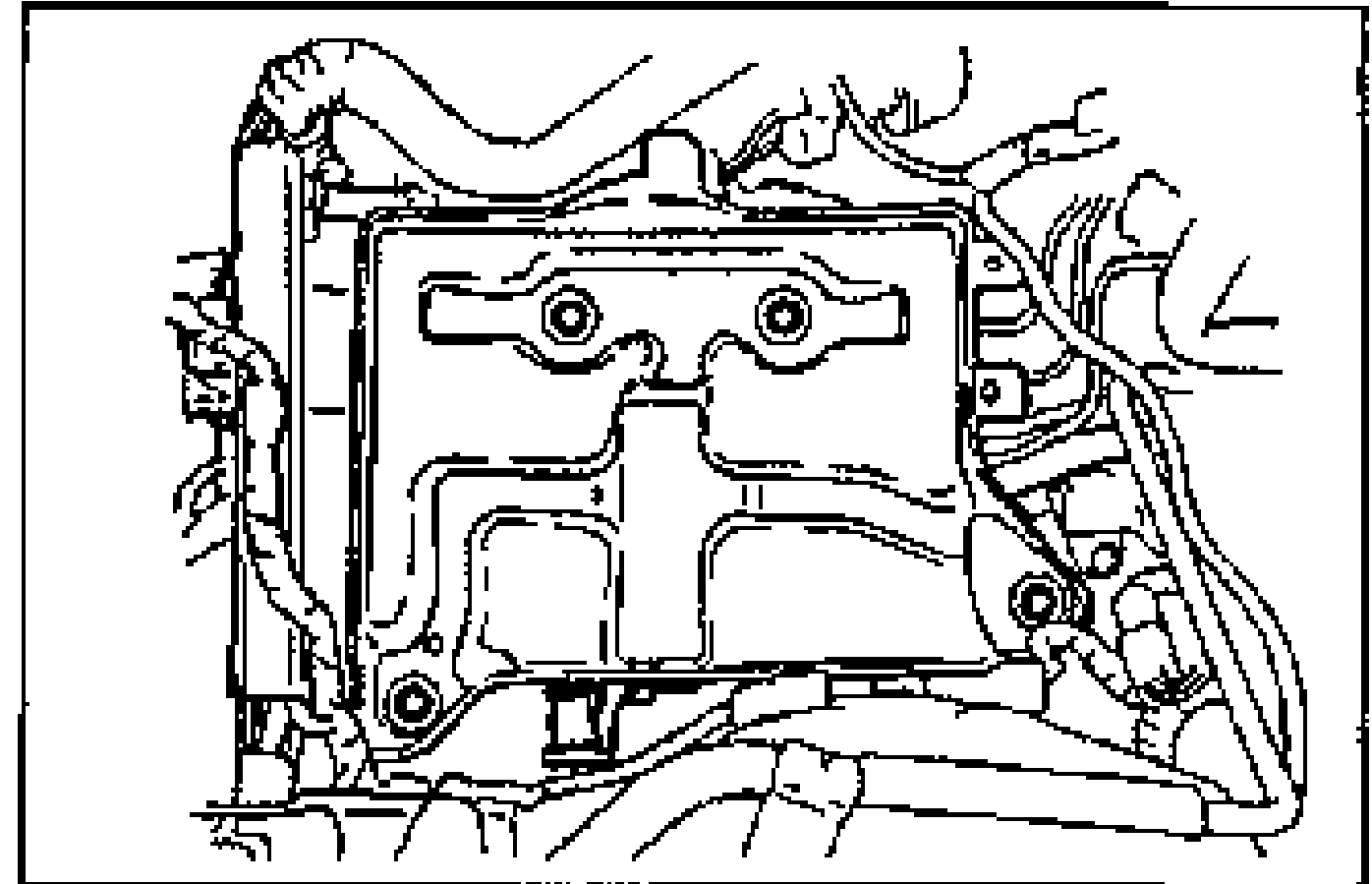

    Battery carrier installed in the engine bay, showing the carrier mounting bolts.
  2. 2
    Install the engine harness to the carrier.

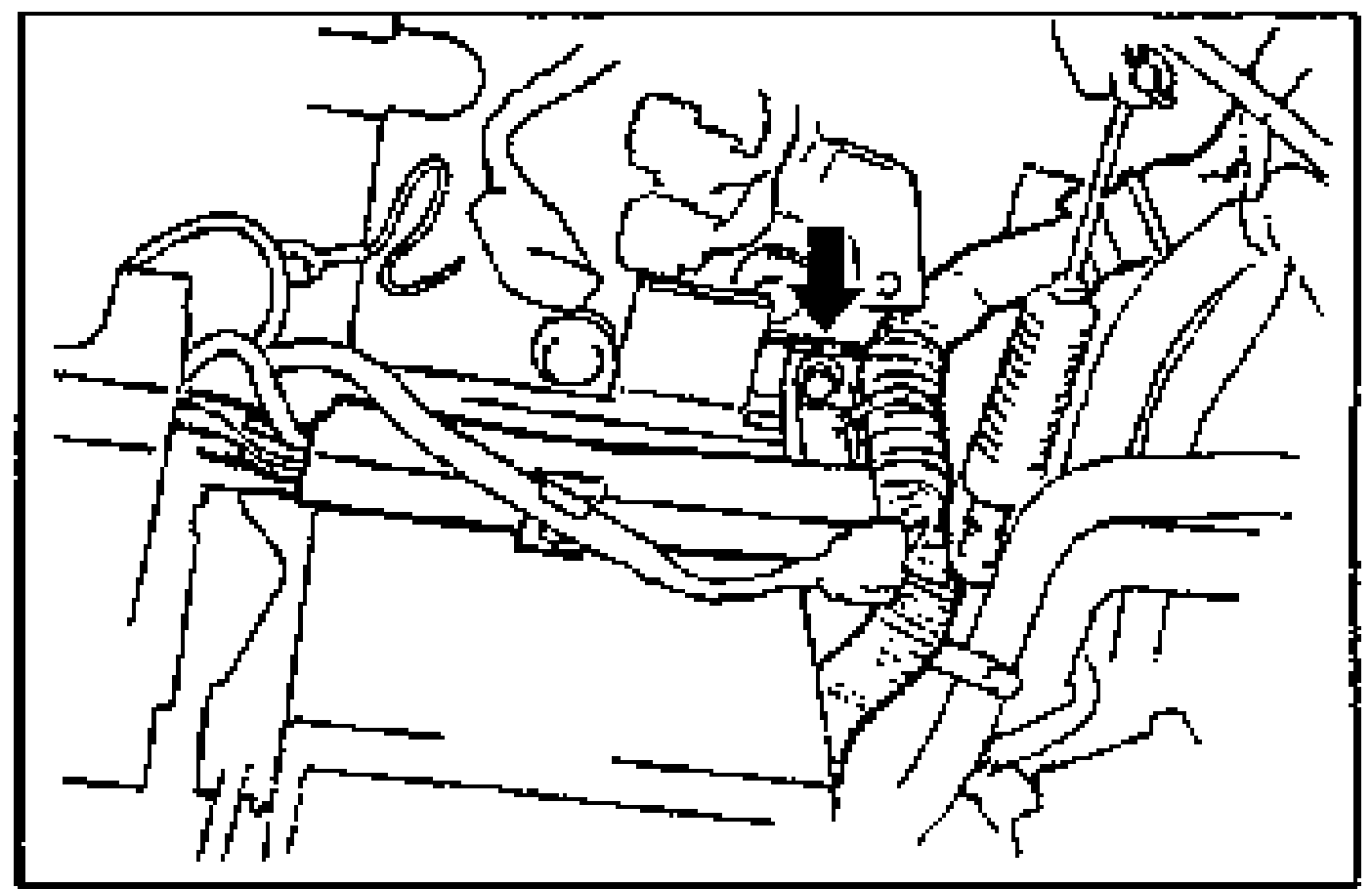

    Engine harness being installed to the battery carrier; an arrow points to the harness attachment location.
Tightening torque (battery carrier)step 1
7.9 - 10.7N·m
