FRONT OIL SEAL — Removal Note / Installation Note

B2-41prose procedure

Continued from B2-40

Removal Note

Timing belt pulley

NOTE

If necessary, remove the pulley with a steering wheel puller.

Timing belt pulley removal

1
Remove the timing belt pulley.
2
Remove the crankshaft key.

Oil seal

Oil seal removal

1
Cut the oil seal lip with a razor knife.
2

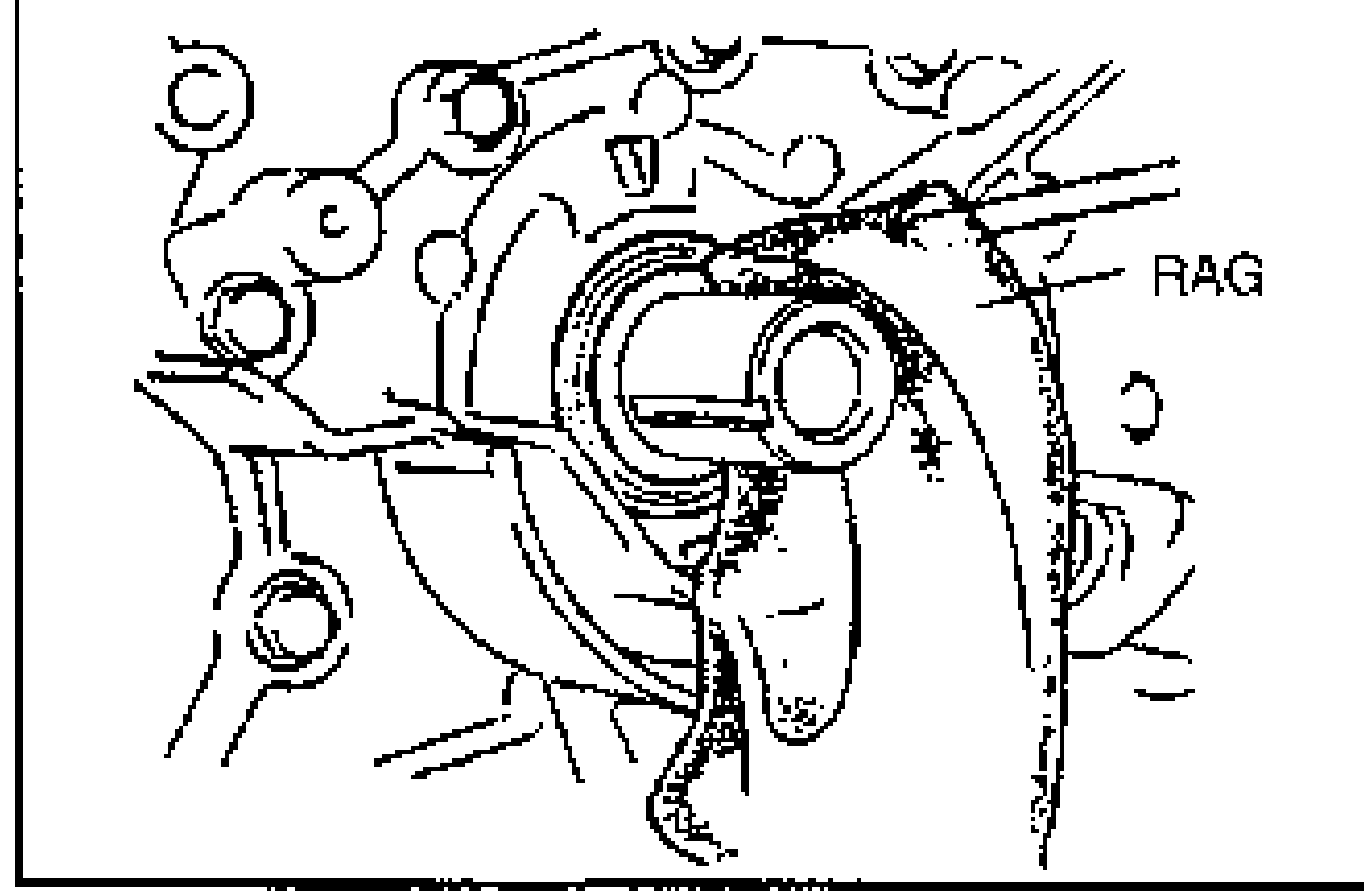

Remove the oil seal by using a screwdriver protected with a rag.

Installation Note

Oil seal

Oil seal installation

1
Apply clean engine oil to the lip of a new oil seal.
2
Push the oil seal slightly in by hand.
3
Tap the oil seal in evenly with a pipe and a hammer.

Specification	Value
Protrusion	0—0.5mm {0—0.019 in}

Protrusion

0—0.5mm {0—0.019 in}

NOTE

Oil seal outer diameter: 48.0 mm {1.89 in}; Oil seal inner diameter: 34.0 mm {1.34 in}

Timing belt pulley

Timing belt pulley installation

1
Install the timing belt pulley.
2

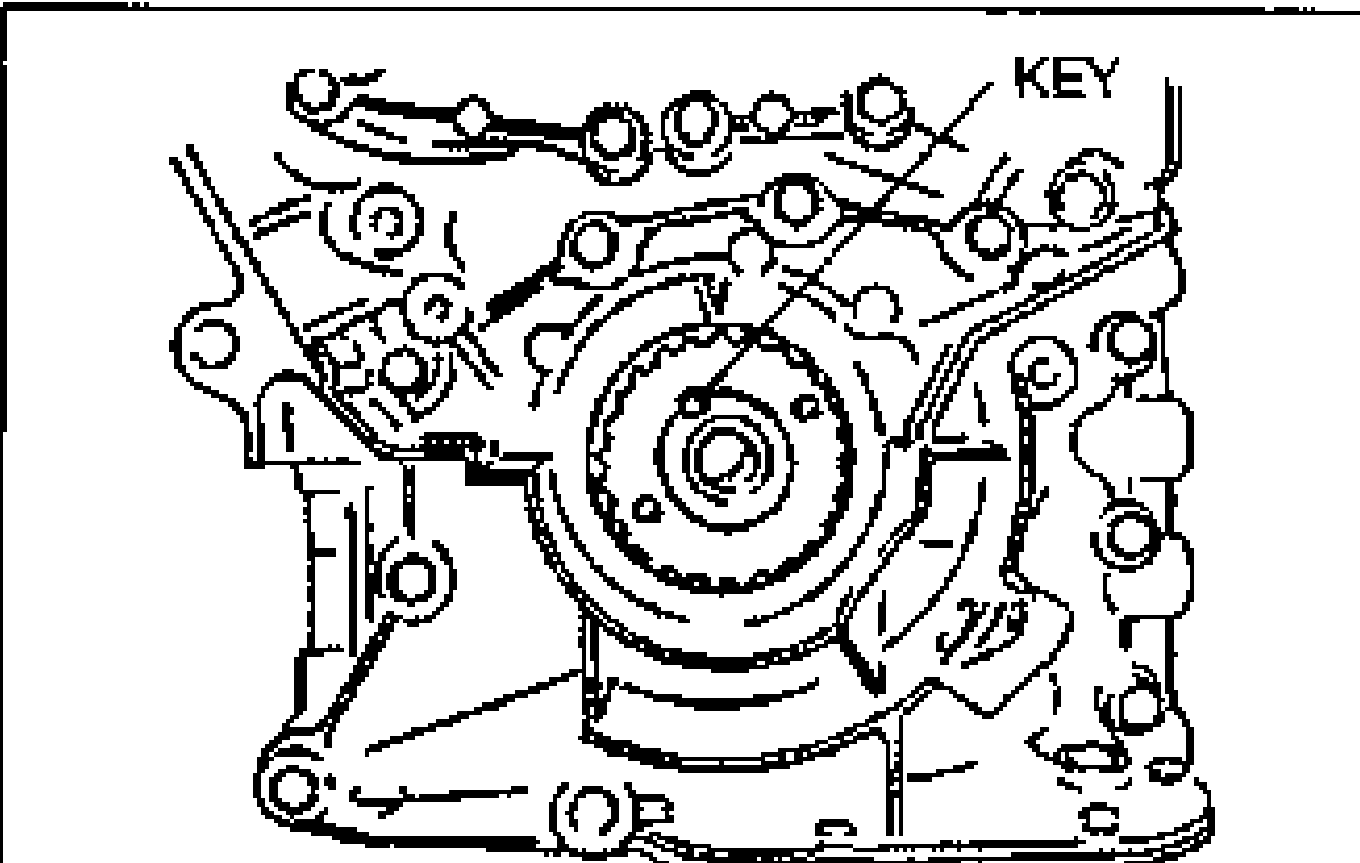

Install the crankshaft key with the tapered side toward the oil pump body.

Steps After Installation

Start the engine and check the following.

Ignition timing (Refer to page B2-8.)
