ON-VEHICLE MAINTENANCE
B2-21prose procedureCrankshaft pulley
- 1Remove the crankshaft pulley bolt.
- 2Install the crankshaft pulley and hand tighten the bolt.
- 3Mount the SST on the crankshaft pulley to hold the crankshaft.
- 4Tighten the crankshaft pulley bolt.
| Specification | Value |
|---|---|
| Tightening torque (crankshaft pulley bolt)step 4 | ≈1540 - 1628N·m |
Tightening torque (crankshaft pulley bolt)step 4
1540 - 1628N·m
P/S oil pump

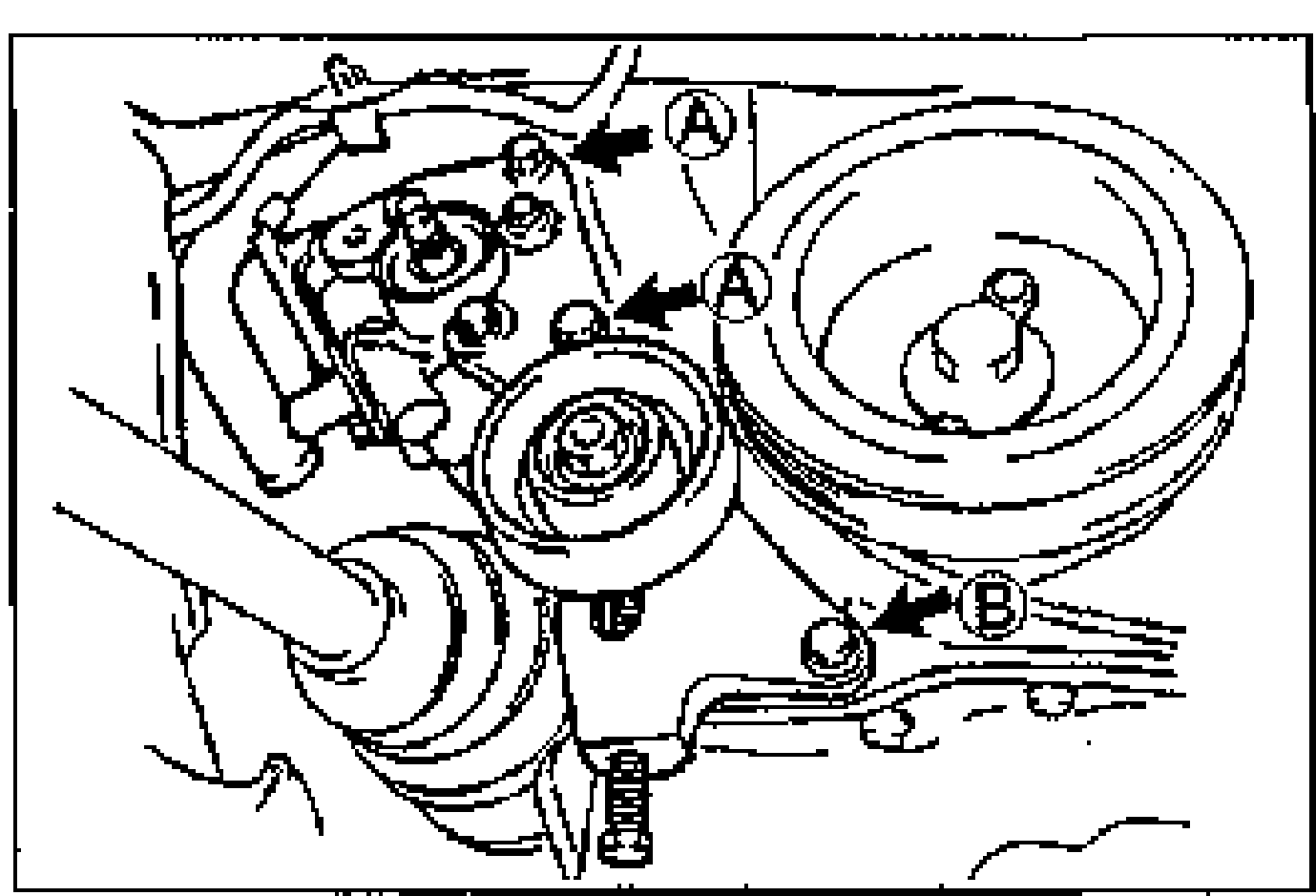

- 1Install the P/S oil pump.
- 2Install the P/S oil pump pulley and hand tighten the pulley nut.
- 3Tighten the pulley nut by using a 12mm {0.47 in} socket on the P/S oil pump mount bolts.
- 4Install the P/S oil reservoir.
| Specification | Value |
|---|---|
| Tightening torque (P/S oil pump A)step 1, bolt A | ≈314 - 451N·m |
| Tightening torque (P/S oil pump B)step 1, bolt B | ≈186 - 245N·m |
| Tightening torque (P/S oil pump pulley nut)step 3 | ≈618 - 912N·m |
| Tightening torque (P/S oil reservoir)step 4 | ≈68 - 96N·m |
Tightening torque (P/S oil pump A)step 1, bolt A
314 - 451N·m
Tightening torque (P/S oil pump B)step 1, bolt B
186 - 245N·m
Tightening torque (P/S oil pump pulley nut)step 3
618 - 912N·m
Tightening torque (P/S oil reservoir)step 4
68 - 96N·m
