INSTALLATION

B2-119parts diagram

K8-ZE V6 engine front-mount installation into vehicle. Units note: N·m {kgf·m, ft·lbf}.

Step 2

WARNING

A vehicle that is lifted but not securely supported on safety stands is dangerous. It can slip or fall, causing death or serious injury. Never work around or under a lifted vehicle if it is not securely supported on safety stands.

Torque Specifications

Specification	Value
upper-left engine mount	74 - 103N·m
right side mount (near point A)	67 - 93N·m
right side bracket (near point A)	44 - 60N·m
center-left mount	67 - 93N·m
engine mount member	64 - 89N·m
bottom center bolts	38 - 51N·m

upper-left engine mount

74 - 103N·m

right side mount (near point A)

67 - 93N·m

right side bracket (near point A)

44 - 60N·m

center-left mount

67 - 93N·m

engine mount member

64 - 89N·m

bottom center bolts

38 - 51N·m

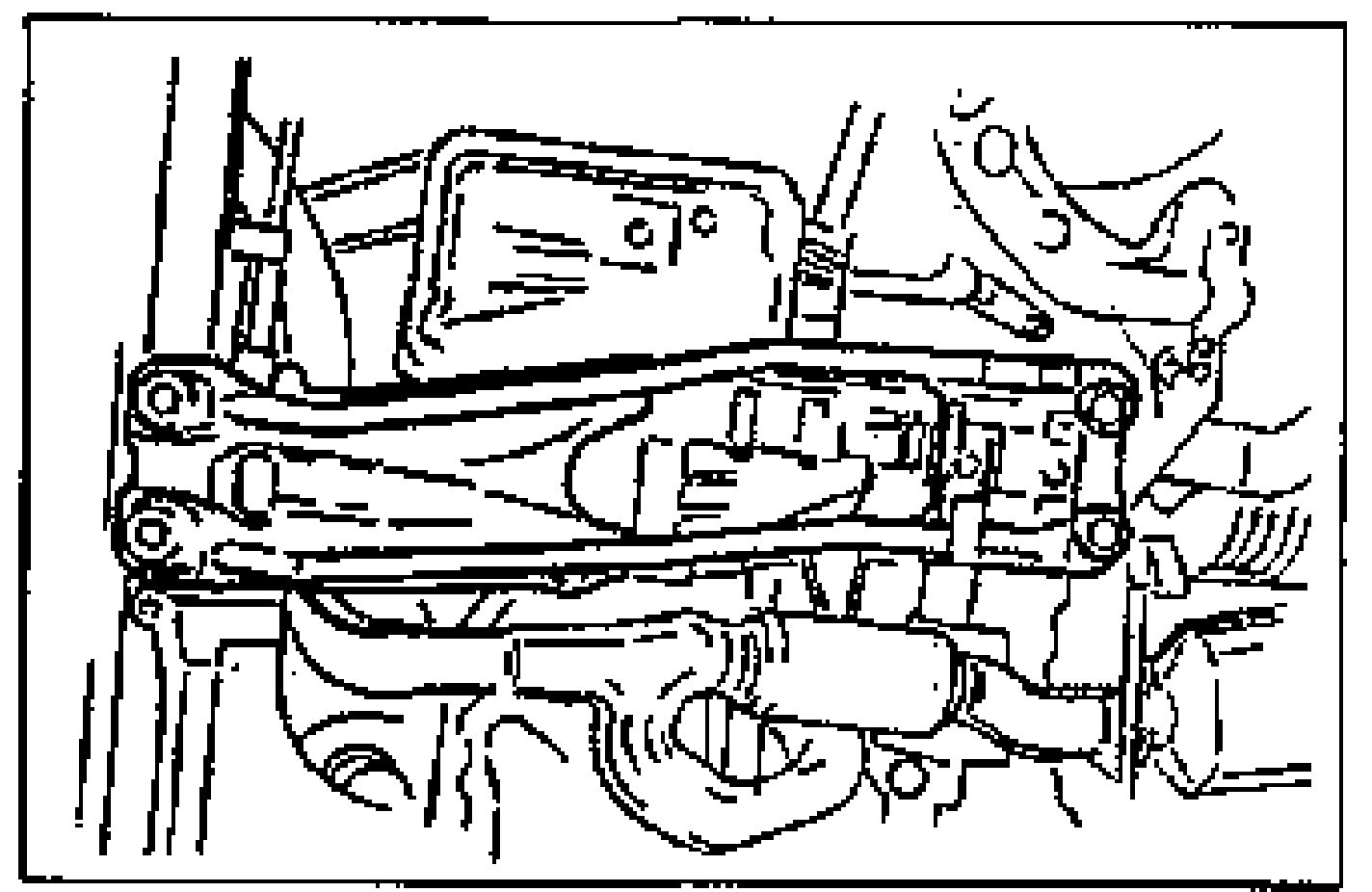

Engine mount member

1
Install the engine mount member.

Specification	Value
engine mount member	64 - 89N·m
