AIR CONDITIONER — Component Location (continued)

G-74component photo

Component LocationFig. fig1

A/C component locations: heater control unit A/C switch (G3-01) and fan switch (G3-02), resistor (G3-03), blower motor (G3-04), blower relay (G3-05), circuit breaker rear heater (G3-06), refrigerant pressure switch (G3-07), thermoswitch (G3-08), main fuse block (X-01), ignition switch (X-03), connectors X-07/X-08/X-17, and join box connectors JB-07/JB-06/JB-02.

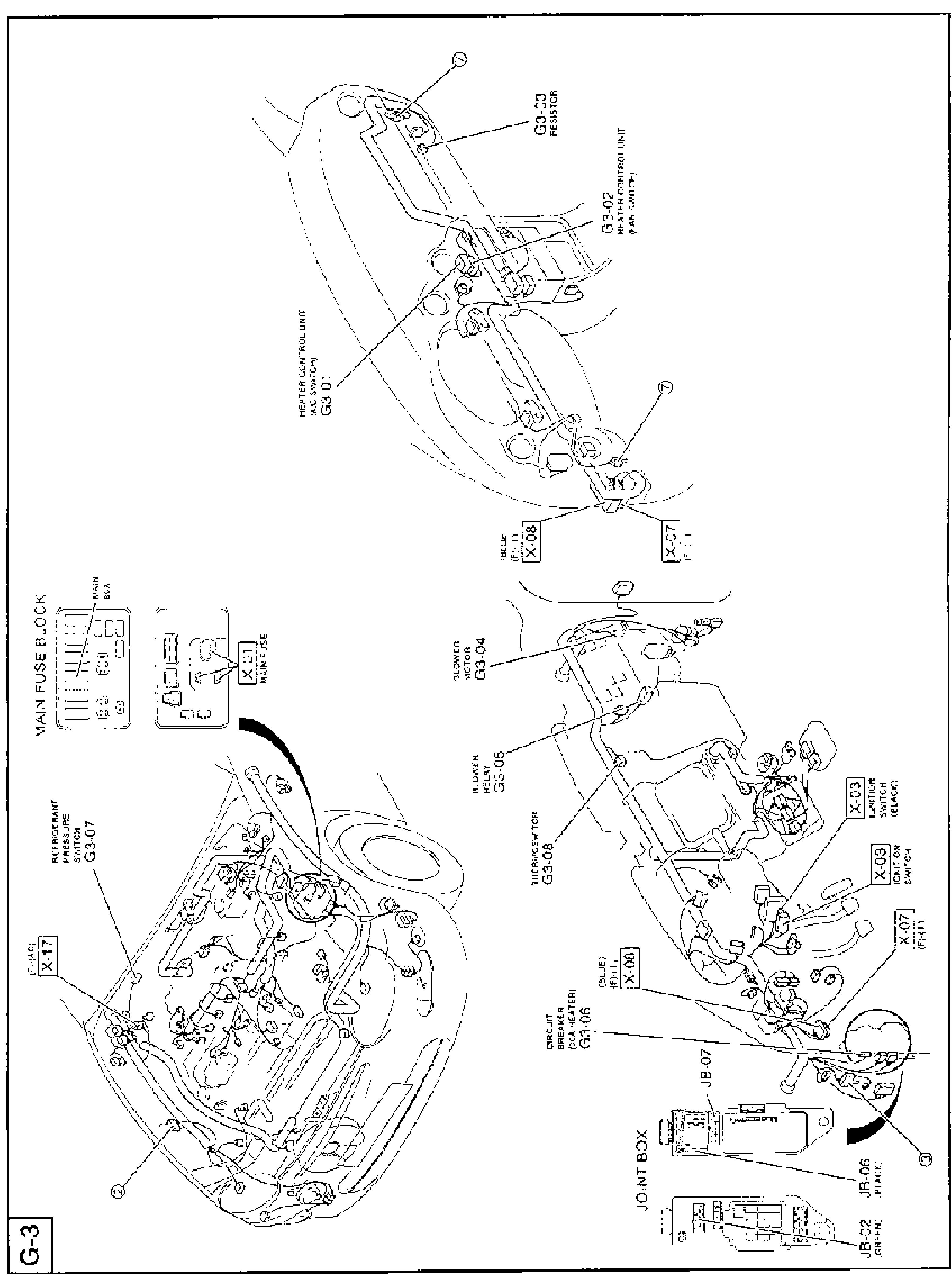

Full-page A/C component-location illustration (rotated landscape). Upper view shows the instrument-panel / heater-control area with leader lines to Resistor (G3-03), Heater Control Unit (A/C switch) (G3-01), Heater Control Unit (fan switch) (G3-02), and connectors X-08 (Blue) and X-07. Lower-left view shows the engine bay with Main Fuse Block (X-01 main fuse), Refrigerant Pressure Switch (G3-07), and connector X-17. Lower-right view shows Blower Motor (G3-04), Blower Relay (G3-05), Thermoswitch (G3-08), Ignition Switch (X-03 Black), connectors X-07 and X-08 (Blue), Circuit Breaker (rear heater) (G3-06), Join Box with connectors JB-07, JB-06 (Black), JB-02 (Green).

G-3

1G3-01(Heater control unit (A/C switch))

2G3-02(Heater control unit (fan switch))

3G3-03(Resistor)

4G3-04(Blower motor)

5G3-05(Blower relay)

6G3-06(Circuit breaker (rear heater))

7G3-07(Refrigerant pressure switch)

8G3-08(Thermoswitch)

9X-01(Main fuse)

10X-03(Ignition switch (Black))

11X-07(Connector)

12X-08(Connector (Blue))

13X-17(Connector)

14JB-07(Join box connector)

15JB-06(Join box connector (Black))

16JB-02(Join box connector (Green))
