CHARGING SYSTEM — Drive Belt Adjustment

G-19prose procedure

Separate belt adjustment procedures and torques for B6 DOHC (mounting/adjusting bolt) and K8 DOHC (tensioner lock nut + adjuster bolt).

Continued from G-18

Adjustment

B6 DOHC

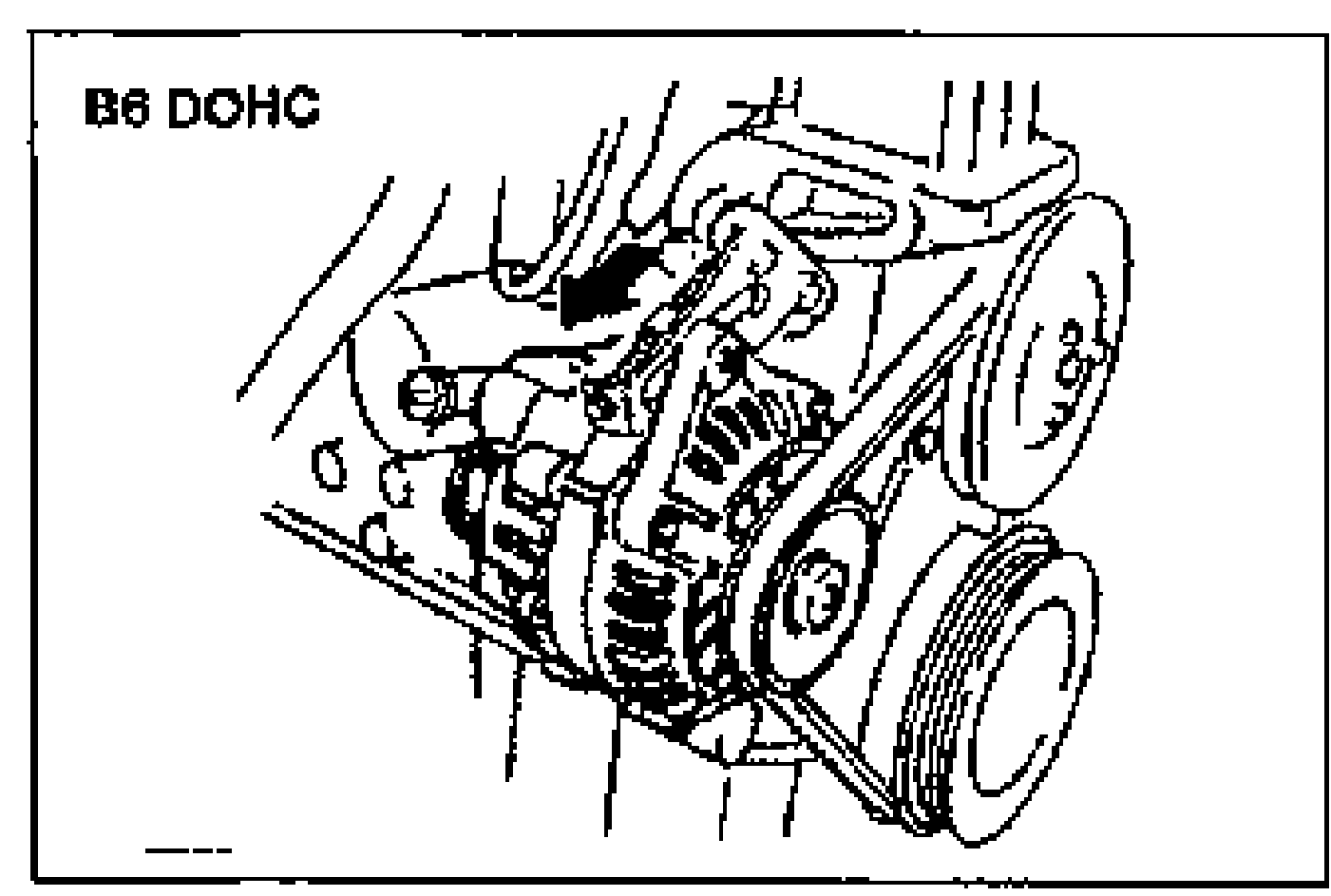

B6 DOHC Adjustment

1
Loosen the generator mounting bolt and adjusting bolt.
2
Tighten the generator adjusting bolt.
3
Tighten the generator mounting bolts and recheck the tension.
Tightening torque — Mounting bolt: 38—51 N·m {3.8—5.3 kgf·m, 28—38 ft·lbf}
4
If adjustment is not possible, replace the drive belt. (Refer to section B1.)

Specification	Value
Tightening torque — Mounting boltB6 DOHC	38 - 51N·m

Tightening torque — Mounting boltB6 DOHC

38 - 51N·m

K8 DOHC

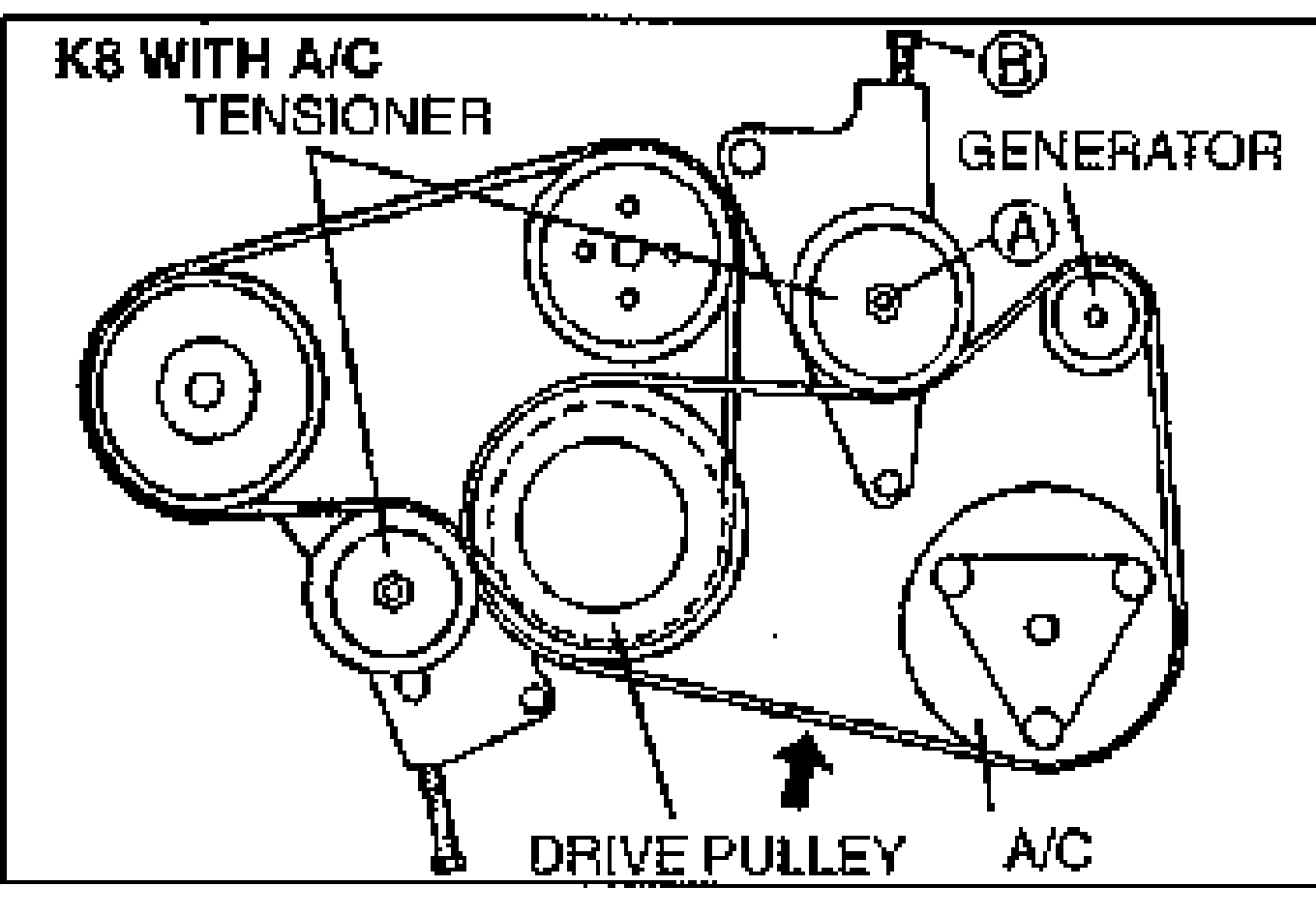

K8 DOHC Adjustment

1
Loosen tensioner lock nut (A).
2
Tighten adjuster bolt (B).
3
Tighten tensioner lock nut (A).
Tightening torque — (A): 32—46 N·m {3.2—4.7 kgf·m, 24—33 ft·lbf}
4
If adjustment is not possible, replace the drive belt. (Refer to section B2.)

Specification	Value
Tightening torque — (A) tensioner lock nutK8 DOHC	32 - 46N·m

Tightening torque — (A) tensioner lock nutK8 DOHC

32 - 46N·m
