TROUBLESHOOTING - Flowchart No. 11: Intake air mode does not change (wire type)
G-32flowchartFlowchart No. 11
Flowchart No.
Value11
Symptom
ValueIntake air mode does not change (wire type)
Related components
ValueAir intake wire, intake door assembly, REC/FRESH lever
Step 1

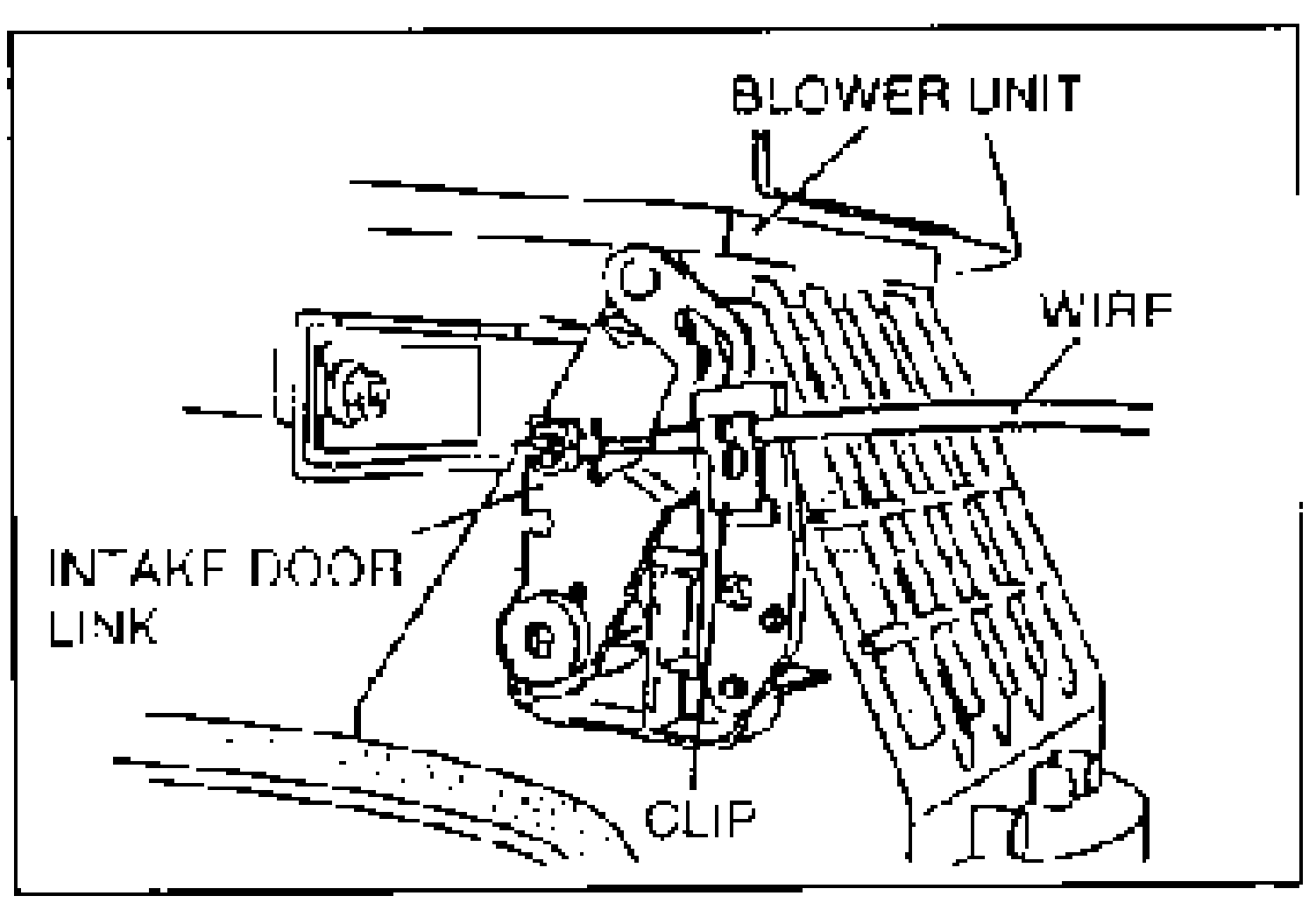

- 1Verify that the air intake wire is secured to the intake door link and that the outer tube is secured by the clip.
Step 1
Secured
ActionGo to Step 2
Not secured
ActionConnect air intake wire and/or outer tube (Refer to page G-47)
Step 2
- 1Move the REC/FRESH lever from REC to FRESH and check the operation of the intake door.
Step 2
Intake door link does not operate
ActionCheck connection between REC/FRESH lever and air intake wire (Refer to page G-47)
Lever sticks; intake door link operates
ActionCheck wire routing from REC/FRESH lever to intake door link. Check lubrication on parts of lever (Refer to page G-47)
Intake door operates smoothly
ActionCheck intake door for damage (Refer to page G-41)
