AIR CONDITIONER — Component Location (Engine Compartment)

G-73component photo

Component LocationFig. fig1

Engine-compartment component locations for the A/C system: A/C relay (G2-01), condenser-fan relays No.1/No.2/No.3 (G2-02/G2-03/G2-05), condenser fan (G2-04), magnetic clutch, ignition switch (X-03), join box (JB-04/JB-07/JB-06), main fuse block (X-01 MAIN 100A) and fuse block (X-02 A/D FAN 40A).

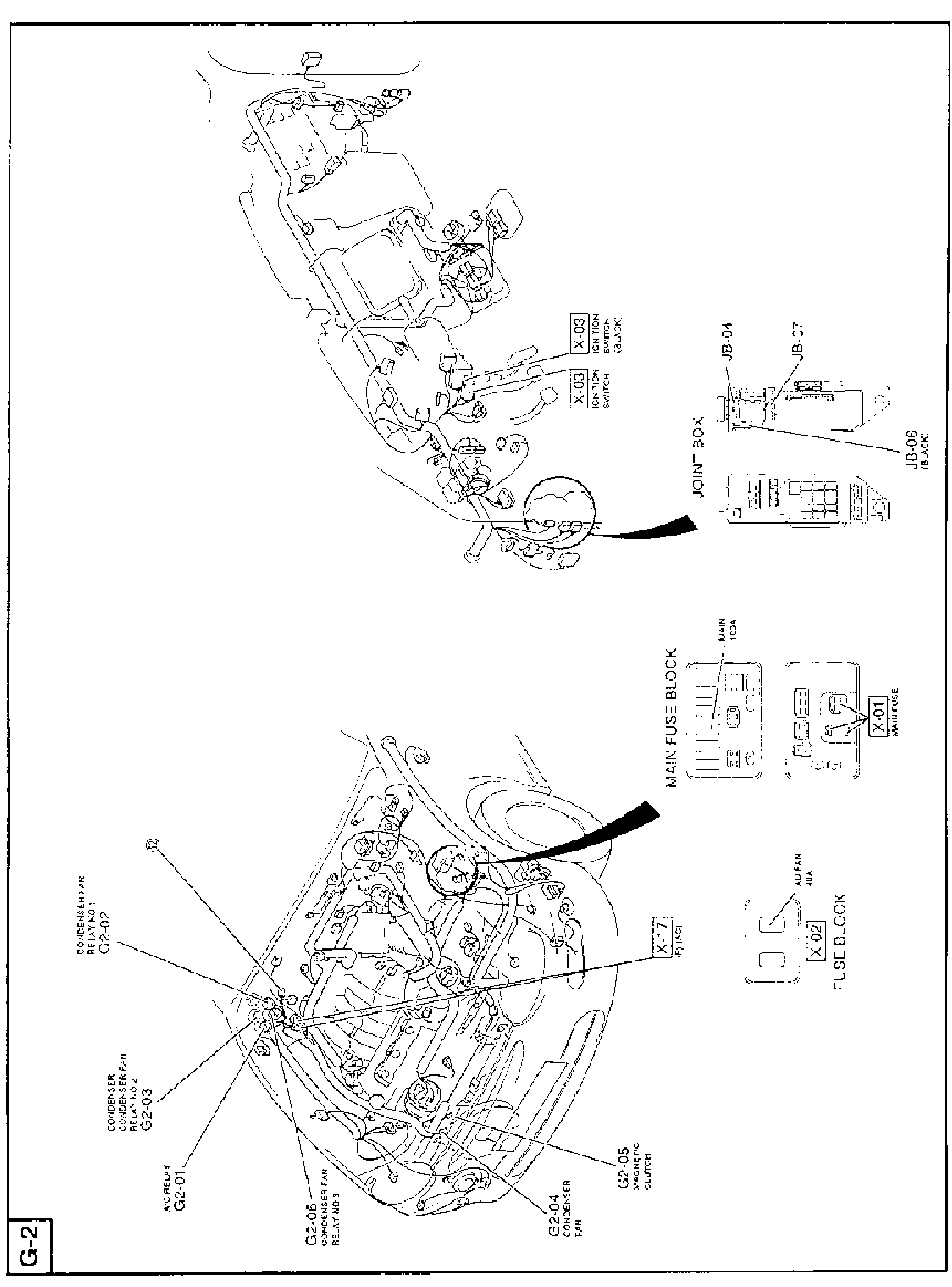

Full-page engine-compartment component-location illustration (rotated landscape) for the A/C system. Top illustration shows the upper engine bay with leader lines to the Ignition Switch connector (X-03), Join Box, and join-box connectors JB-04, JB-07, JB-06 (Black). Lower illustration shows the front of the engine bay with leader lines to A/C and condenser-fan relays G2-01 (A/C relay), G2-02 (condenser-fan relay No.1), G2-03 (condenser-fan relay No.2), G2-04 (condenser fan), G2-05 (condenser-fan relay No.3 / magnetic clutch), connector X-17 (flasher), Main Fuse Block (MAIN 100A, X-01 main fuse), and Fuse Block (A/D FAN 40A, X-02).

G-2

1G2-01(A/C relay)

2G2-02(Condenser-fan relay No.1)

3G2-03(Condenser-fan relay No.2)

4G2-04(Condenser fan)

5G2-05(Condenser-fan relay No.3 / magnetic clutch)

6X-01(Main fuse (MAIN 100A))

7X-02(A/D FAN 40A fuse)

8X-03(Ignition switch connector)

9X-17(Flasher connector)

10JB-04(Join box connector)

11JB-07(Join box connector)

12JB-06(Join box connector (Black))
