ENGINE TUNE-UP
F2-69prose procedurePREPARATION — SST
SST (Special Service Tools)
49 B019 9A0
NameSystem Selector
UsageFor Inspection of ignition timing and idle speed
BASIC INSPECTION
Engine Oil
- 1Remove the dipstick and check the engine oil level and condition.
- 2Add or change oil as necessary.
Coolant (engine cold)
WARNING
Removing the radiator cap or the coolant filler cap while the engine is running, or when the engine and radiator are hot is dangerous. Scalding coolant and steam may shoot out and cause serious injury. It may also damage the engine and cooling system. Turn off the engine and wait until it is cool. Even then, be very careful when removing the cap. Wrap a thick cloth around it and slowly turn it counterclockwise to the first stop. Step back while the pressure escapes. When you're sure all the pressure is gone, press down on the cap—still using a cloth—turn it, and remove it.

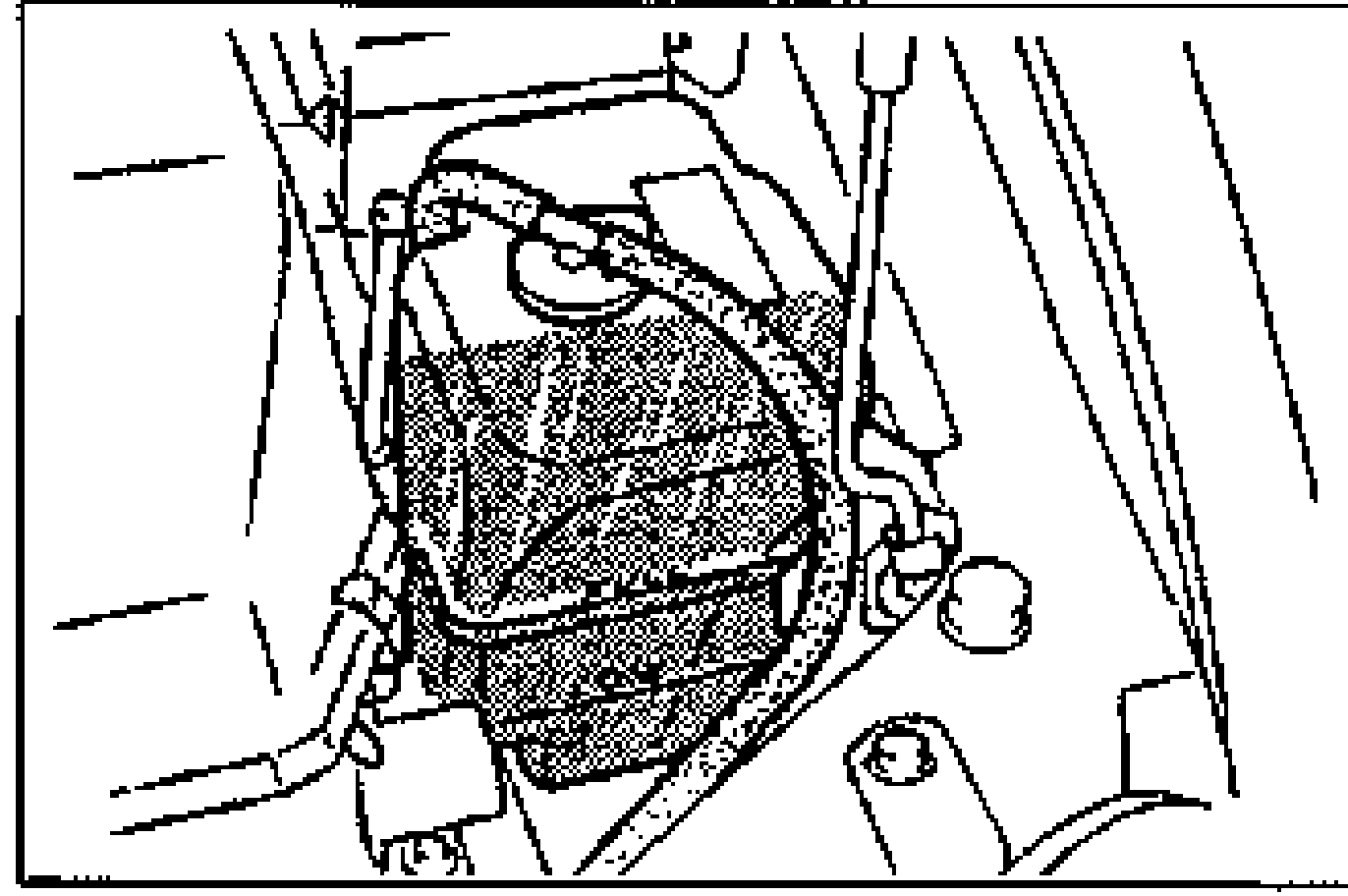

Coolant (engine cold)
- 1Verify that the coolant level is near the radiator filler neck.
- 2Verify that the coolant level in the coolant reservoir is between the FULL and LOW marks.
- 3Add coolant if necessary.
Battery
CAUTION
Removing the label on the top of the battery or removing the vent caps will void the battery's warranty.

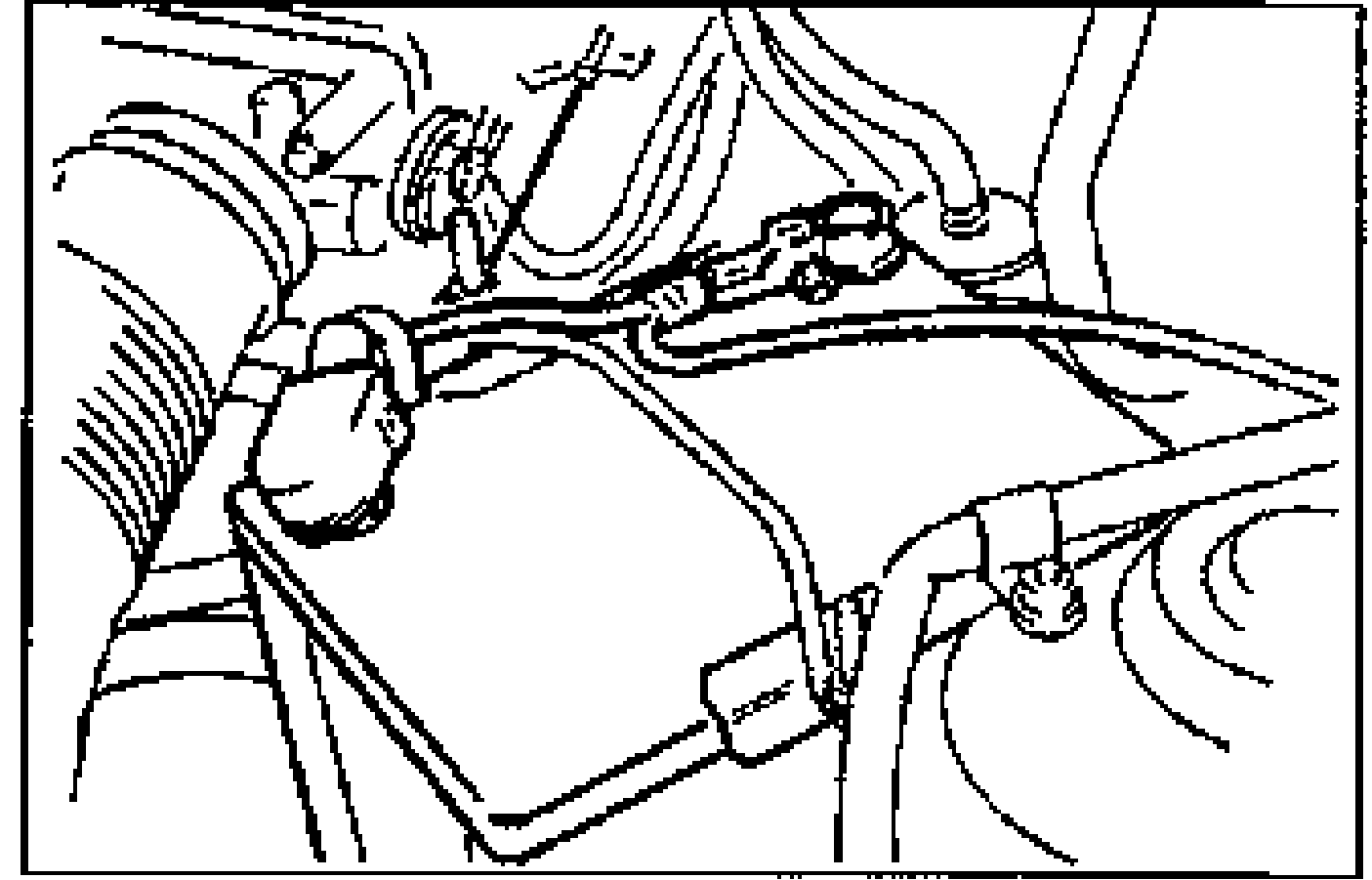

Battery
- 1Remove any corrosion on the clamps or battery posts.
- 2Verify that the battery top is clean. If necessary, clean with baking soda and water.
- 3Verify that cables are in good condition and not frayed or corroded. Repair or replace if necessary.
- 4Verify that cable clamps are tight.
