FUEL INJECTOR - Volume Test
F2-118prose procedureInjector checker dial positions #1-#6 correspond to the V6 (K8-ZE) six injectors.
Volume Test
- 1Remove the fuel injectors together with the fuel distributor.

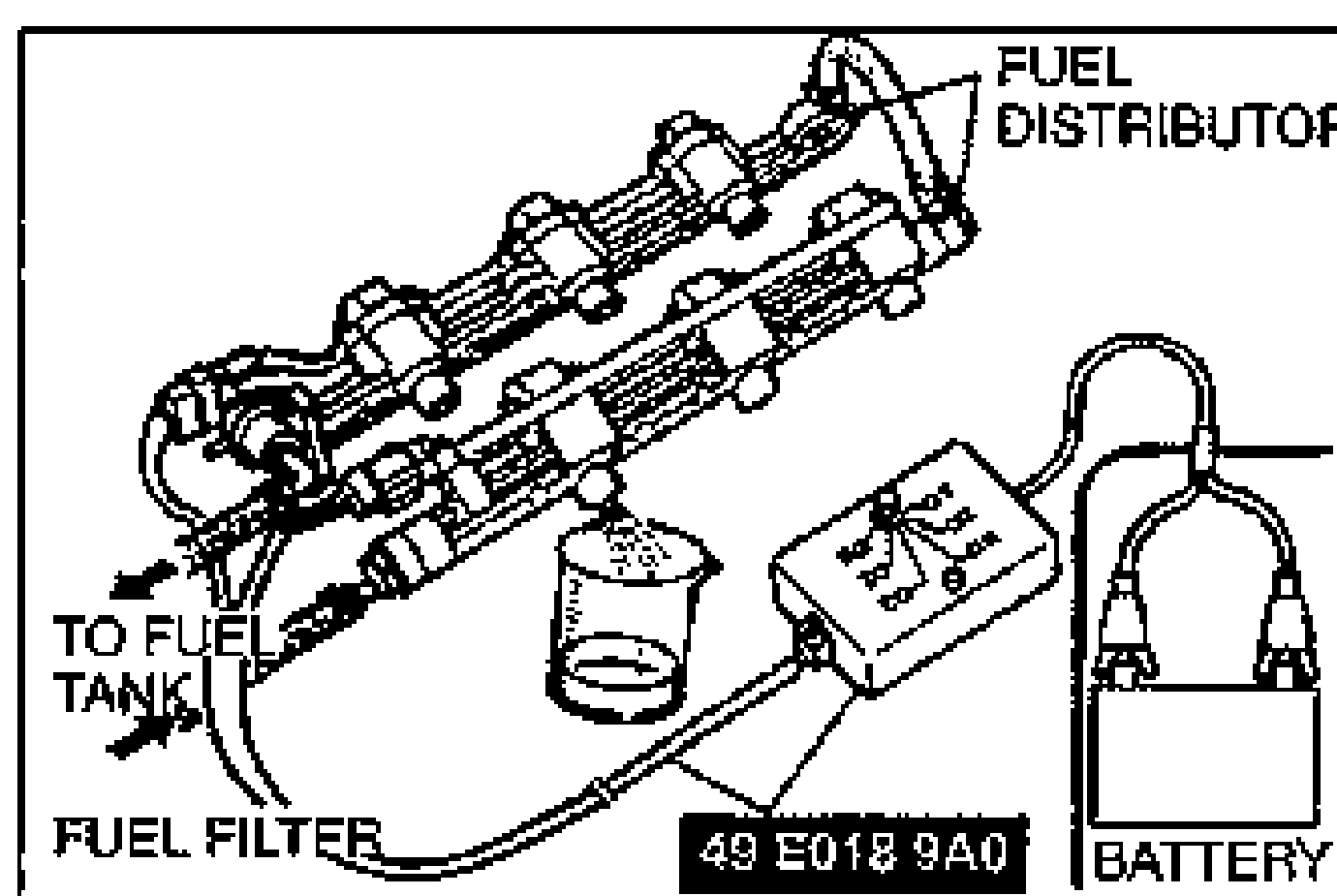

- 2Connect the SST as shown in figure.Fuel vapor is hazardous. It can very easily ignite, causing serious injury and damage. Always keep sparks and flames away from fuel.
- 3Check the injection volume with a graduated container.
- 4If not as specified, replace the fuel injector.
WARNING
Fuel vapor is hazardous. It can very easily ignite, causing serious injury and damage. Always keep sparks and flames away from fuel.
| Specification | Value |
|---|---|
| Injection volume | 32-40 cc {1.95-2.44 cu. in} / 15 sec. |
Injection volume
32-40 cc {1.95-2.44 cu. in} / 15 sec.
