EGR CONTROL SYSTEM, EVAPORATIVE EMISSION CONTROL SYSTEM
F2-127prose procedureReplacement
NOTE
Plug the water hoses after disconnecting them.
Replacement

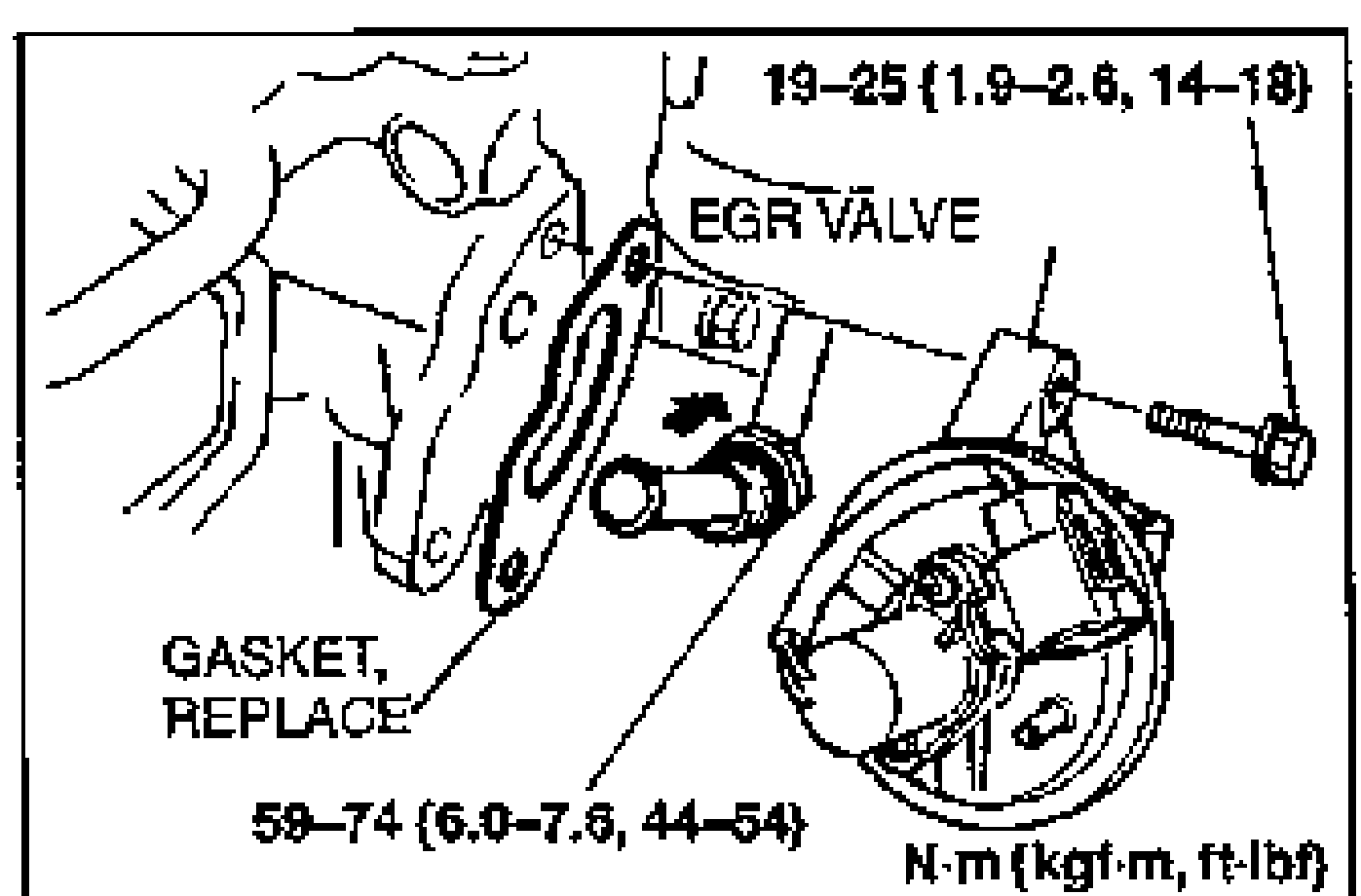

- 1Remove the EGR control valve in the order shown below: (1) Battery and battery tray, (2) EGR hoses, (3) Vacuum hose, (4) EGR valve position sensor connector, (5) EGR valve and gasket.
- 2Install a new gasket, and then install the EGR valve in the revere order of removal.
EVAPORATIVE EMISSION CONTROL SYSTEM
DESCRIPTION
The evaporative emission control system consists of the separator, check-and-cut valve, two-way check valve, charcoal canister, purge solenoid valve, engine control module (ECM), and input devices. The amount of evaporative fumes introduced into the engine and burned is controlled by the solenoid valve to correspond to the engine's operating conditions. To maintain best engine performance, the solenoid valve is controlled by the ECM.
Operation
The purge solenoid valve is controlled by duty signals from the ECM to perform purging of the charcoal canister. Purging is done when these conditions are met: (1) After warm-up, (2) Driving in gear, (3) Accelerator pedal depressed (closed throttle position switch OFF), (4) Heated oxygen sensor functioning normally.
| Specification | Value |
|---|---|
| EGR valve upper bolt | ≈186 - 245N·m |
| EGR valve lower mounting | ≈579 - 726N·m |
EGR valve upper bolt
186 - 245N·m
EGR valve lower mounting
579 - 726N·m
