HEADLINER

S-72prose procedure

Separate procedures for models with and without sliding sunroof.

Continued from S-71

Removal note

Headliner

Without sliding sunroof

Headliner removal — Without sliding sunroof

  1. 1
    Remove the fasteners on the front side of the headliner. Remove the clips on the rear and sides of the headliner.

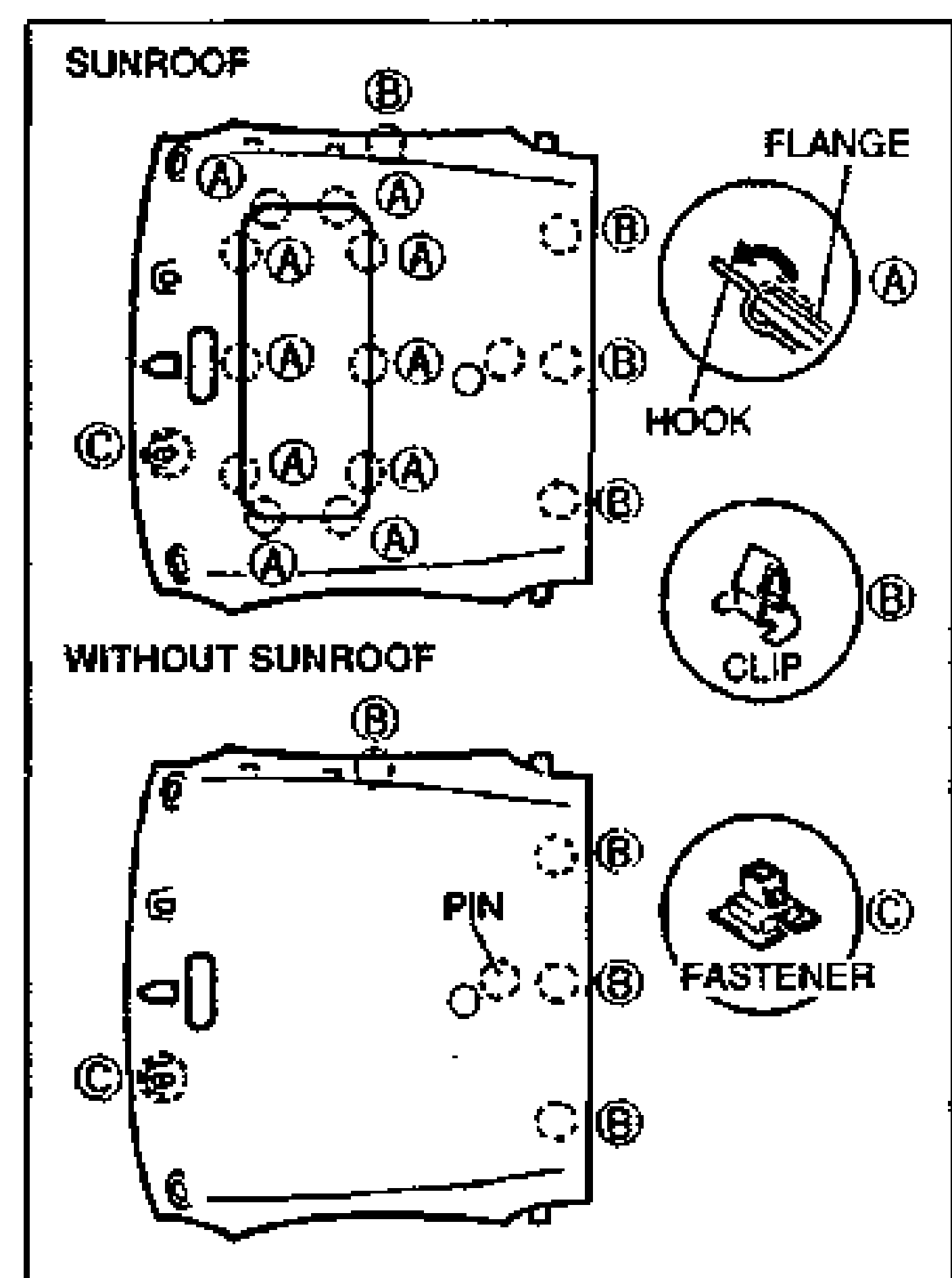

    Top diagram pair showing headliner fastener/clip layouts. Upper outline labeled SUNROOF and lower outline labeled WITHOUT SUNROOF show the headliner perimeter with fastening points marked A, B, C. Detail callouts to the right magnify a HOOK on a FLANGE (A), a CLIP (B), and a FASTENER with PIN (C).
  2. 2
    Remove the headliner.

With sliding sunroof

Headliner removal — With sliding sunroof

  1. 1
    Remove the fasteners on the front side of the headliner. Remove the clips on the rear and sides of the headliner.
  2. 2
    Remove the seaming welt and unfold the hooks at the sunroof frame flange.
  3. 3
    Remove the headliner.

Installation note

Headliner

With sliding sunroof model

Headliner installation — With sliding sunroof model

  1. 1
    Fold the headliner hooks on the sunroof frame flange.
    Lower diagram labeled SUNROOF showing the headliner perimeter with hook fastening points marked A, and a magnified detail of a HOOK folded onto the sunroof frame FLANGE (A). Illustrates the installation note for the with-sliding-sunroof model.
  2. 2
    Install the seaming welt, and then install the headliner.
