TRIM — Components Removal / Installation

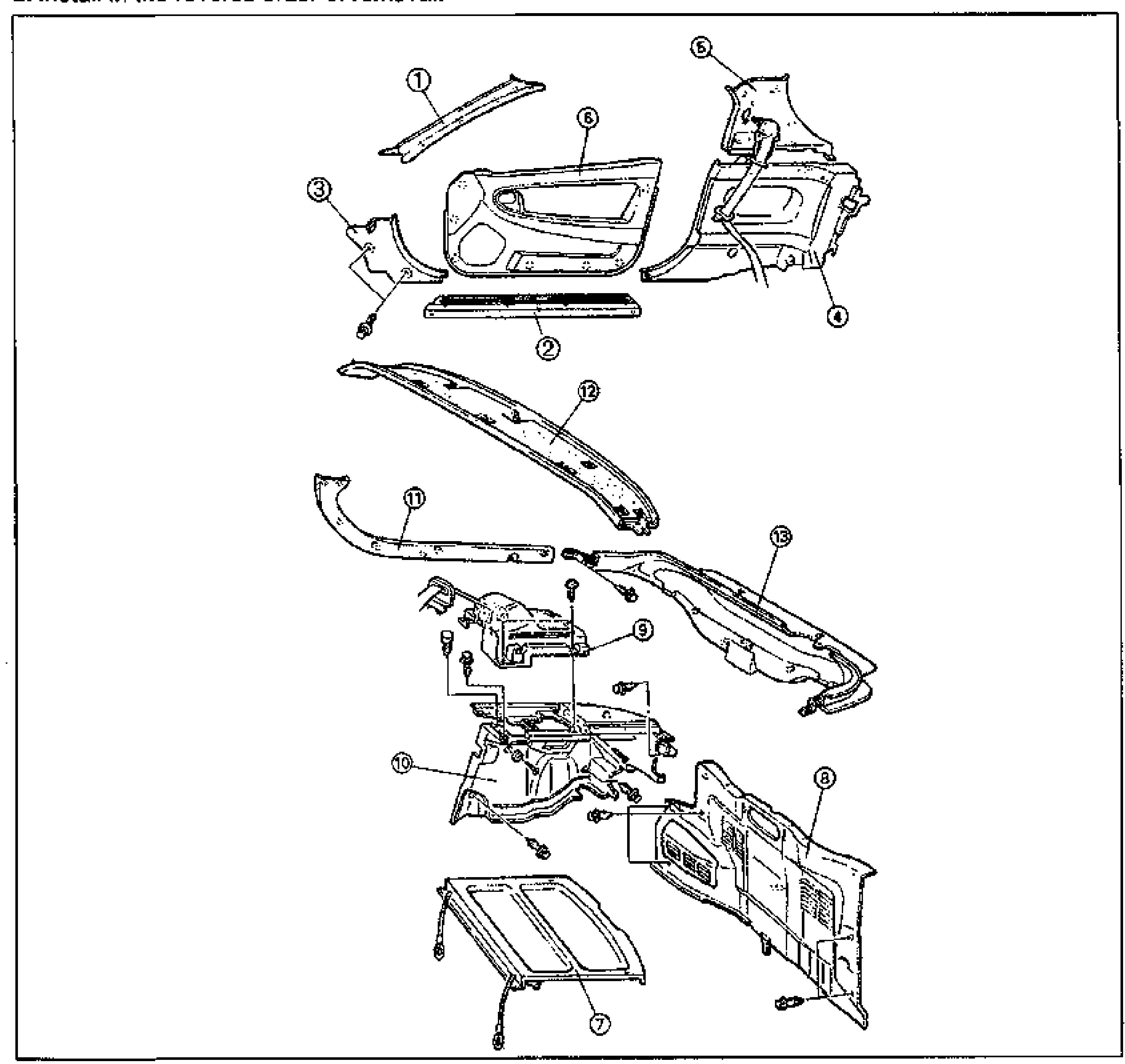

S-65parts diagramCOMPONENTS
Removal / Installation
- 1Remove in the order shown in the figure, referring to Removal note.
- 2Install in the reverse order of removal.
Component legend (Trim)
1
ComponentA-pillar trim
Removal note referenceRemoval note ... page S-66
2
ComponentScuff plate
Removal note referenceRemoval note ... page S-66
3
ComponentFront side trim
Removal note reference—
4
ComponentQuarter trim
Removal note referenceRemoval note ... page S-66
5
ComponentB-pillar trim
Removal note referenceRemoval note ... page S-66
6
ComponentDoor trim
Removal note referenceRemoval note (driver side) ... page S-66; Removal note (passenger side) ... page S-67
7
ComponentRear package trim
Removal note reference—
8
ComponentTrunk end trim
Removal note referenceRemoval note ... page S-67
9
ComponentRear speaker cover
Removal note reference—
10
ComponentTrunk side trim
Removal note reference—
11
ComponentLiftgate side trim
Removal note referenceRemoval note ... page S-67
12
ComponentLiftgate upper trim
Removal note referenceRemoval note ... page S-68
13
ComponentLiftgate lower trim
Removal note referenceRemoval note ... page S-68
