TRIM — Removal notes (continued)
S-68prose procedureLiftgate upper trim
- 1Remove the liftgate side trim. (Refer to page S-67.)
- 2Pull the liftgate upper trim to remove the clips from the body.

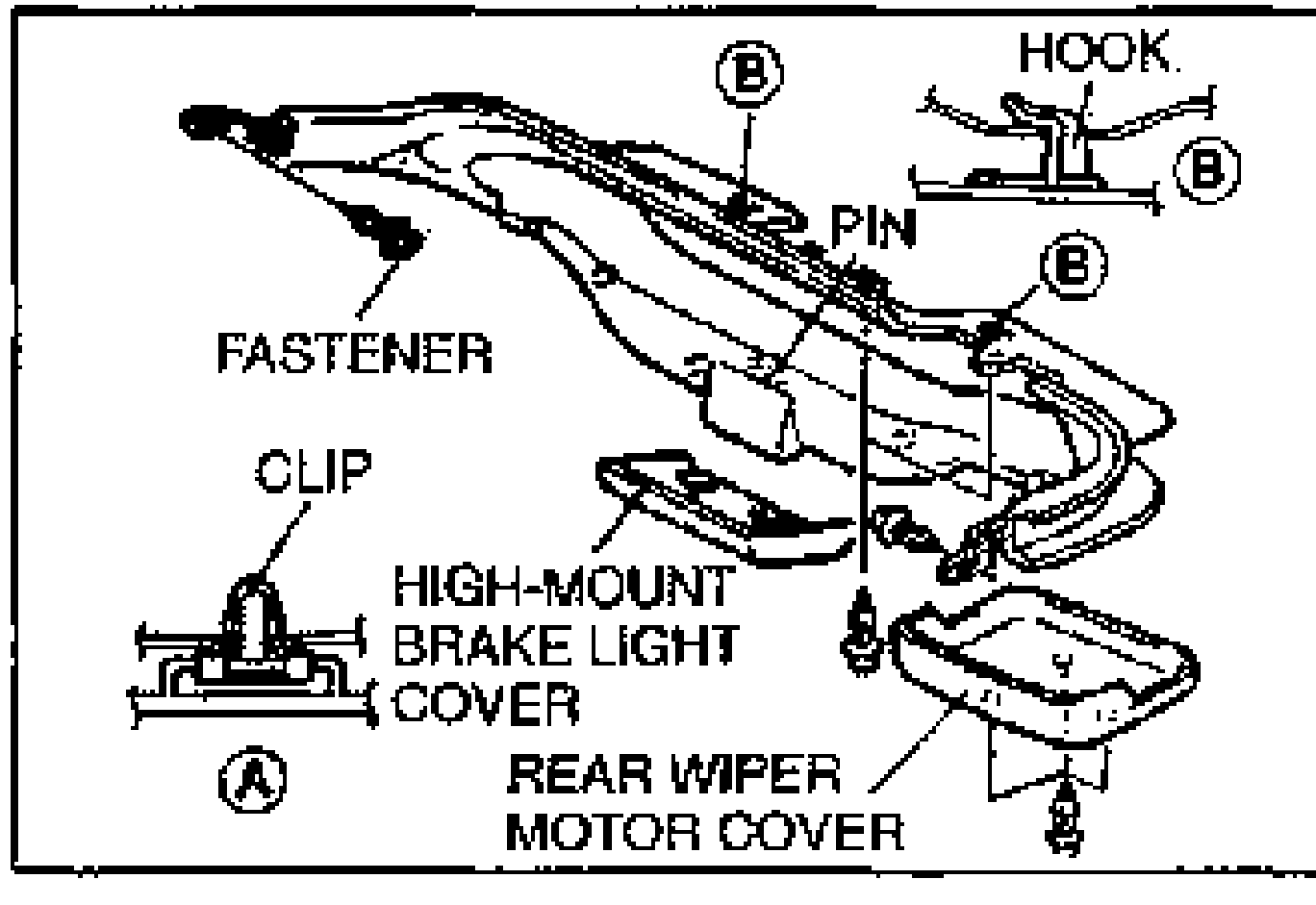

Liftgate lower trim
- 1Remove the liftgate side trim. (Refer to page S-67.)
- 2Remove the rear wiper motor or high-mount brake light cover from the body.
- 3Remove the fastener.
- 4Pull the liftgate lower trim to remove the clips from the body.
- 5Pull the liftgate lower trim upward to remove the hook from the body.
