Mazda MX-3 silhouetteMX-3

SLIDING SUNROOF

S-59prose procedure
Continued from S-58

Assembly note

Guide rail

  1. 1
    Clean and degrease the sunroof contact area between the sunroof frame and the guide rail.

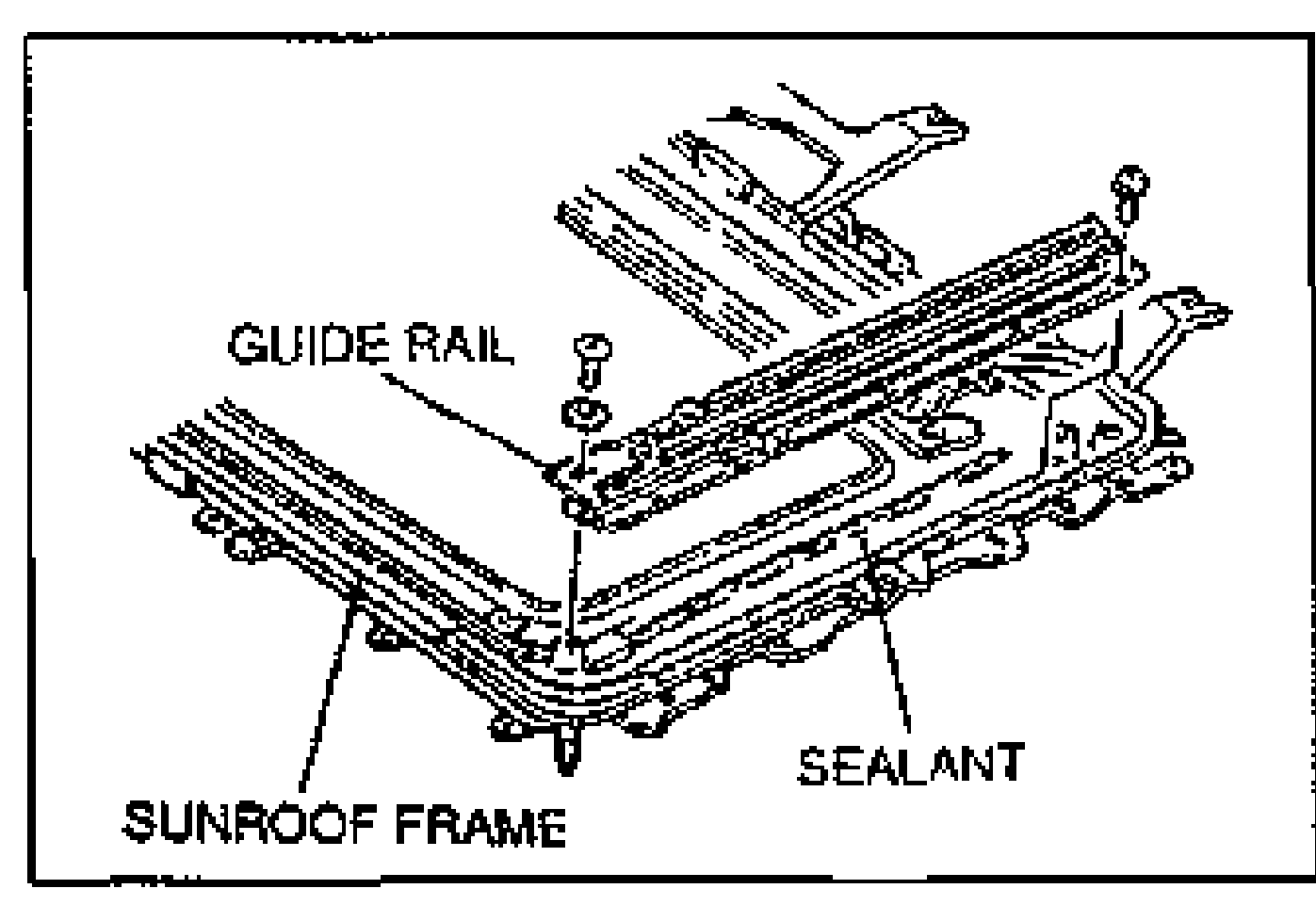

    Detail of the guide rail installed to the sunroof frame with sealant and attaching screw. Labels: GUIDE RAIL, SUNROOF FRAME, SEALANT.
  2. 2
    Apply approximately 2 mm {0.08 in} of sealant to the sunroof frame.
  3. 3
    Install the guide rail to the sunroof frame with the screws.
  4. 4
    Clean any excessive sealant by using white gasoline.

Front guide

Install the front guide to the lower panel with the E-ring.

Rear guide

  1. 1
    Install the lower panel to the guide rail.
    Detail of the lower panel and rear guide being installed to the guide rail, with an arrow indicating the install direction. Labels: LOWER PANEL, REAR GUIDE, GUIDE RAIL.
  2. 2
    Install the rear guide to the guide rail.
  3. 3
    Install the shutting to the guide rail.
    Detail of the shutting being installed to the guide rail and the cable holder to the sunroof frame, with section markers 'A' and an install-direction arrow. Labels: CABLE HOLDER, SHUTTING, GUIDE RAIL.
  4. 4
    Install the cable holder to the sunroof frame.

Sunroof motor assembly

Remove the motor cover. Position the mark on the timing gear as shown in the figure by using an allen wrench.
