OIL SEAL (DIFFERENTIAL)

J2-8prose procedure

PREPARATION

1

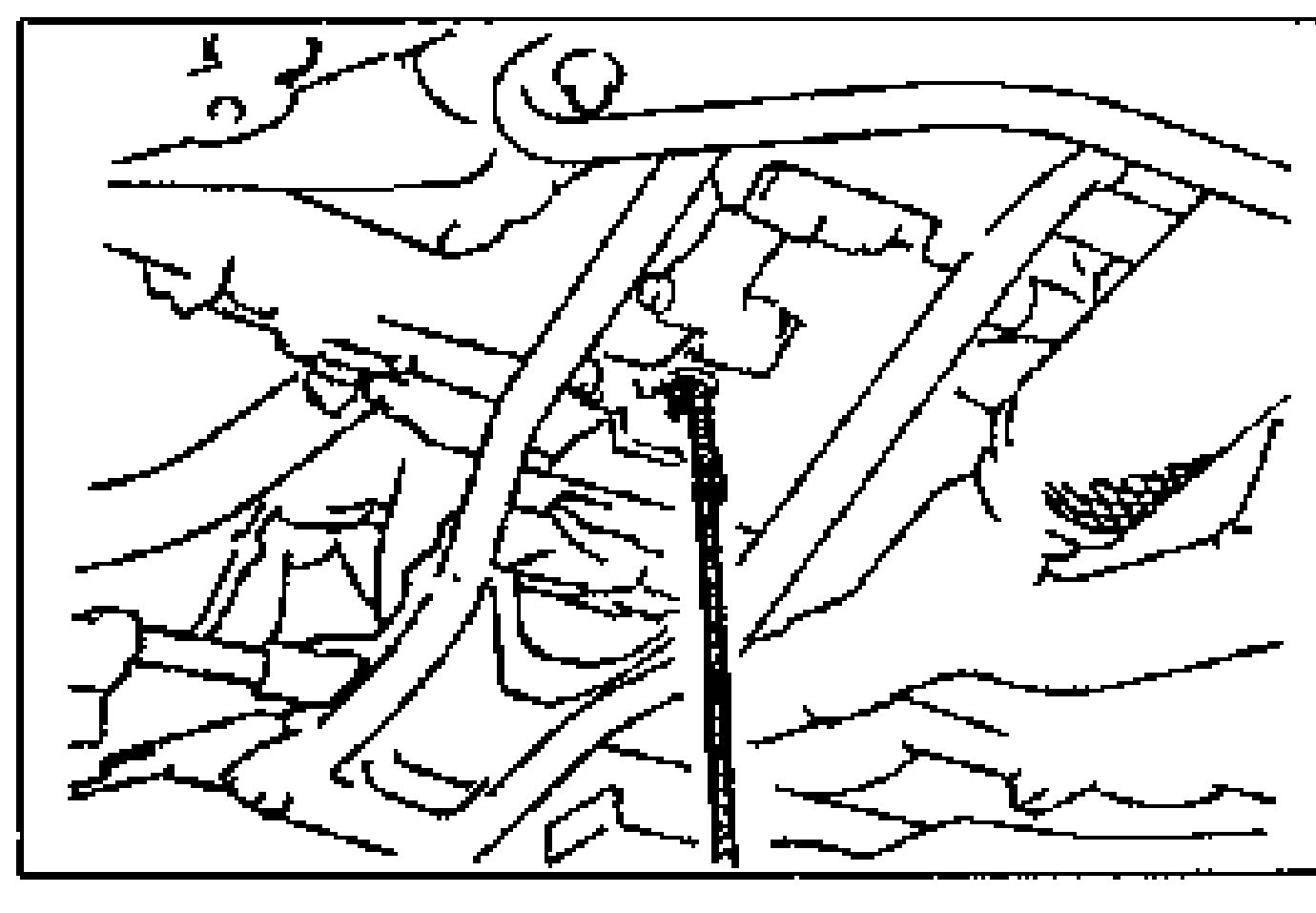

Remove the drain plug and washer. (Refer to Replacement, page J2-7.)
2
Drain the oil into a suitable container.
3
Separate the drive shaft and joint shaft from the transaxle. (Refer to page J2-12.)
4
Remove the oil seal by using a screwdriver.
5
Using the SST and a hammer, tap the new oil seal in evenly until the SST contacts the transaxle case.
6
Coat the lip of the oil seal with transaxle oil.
7

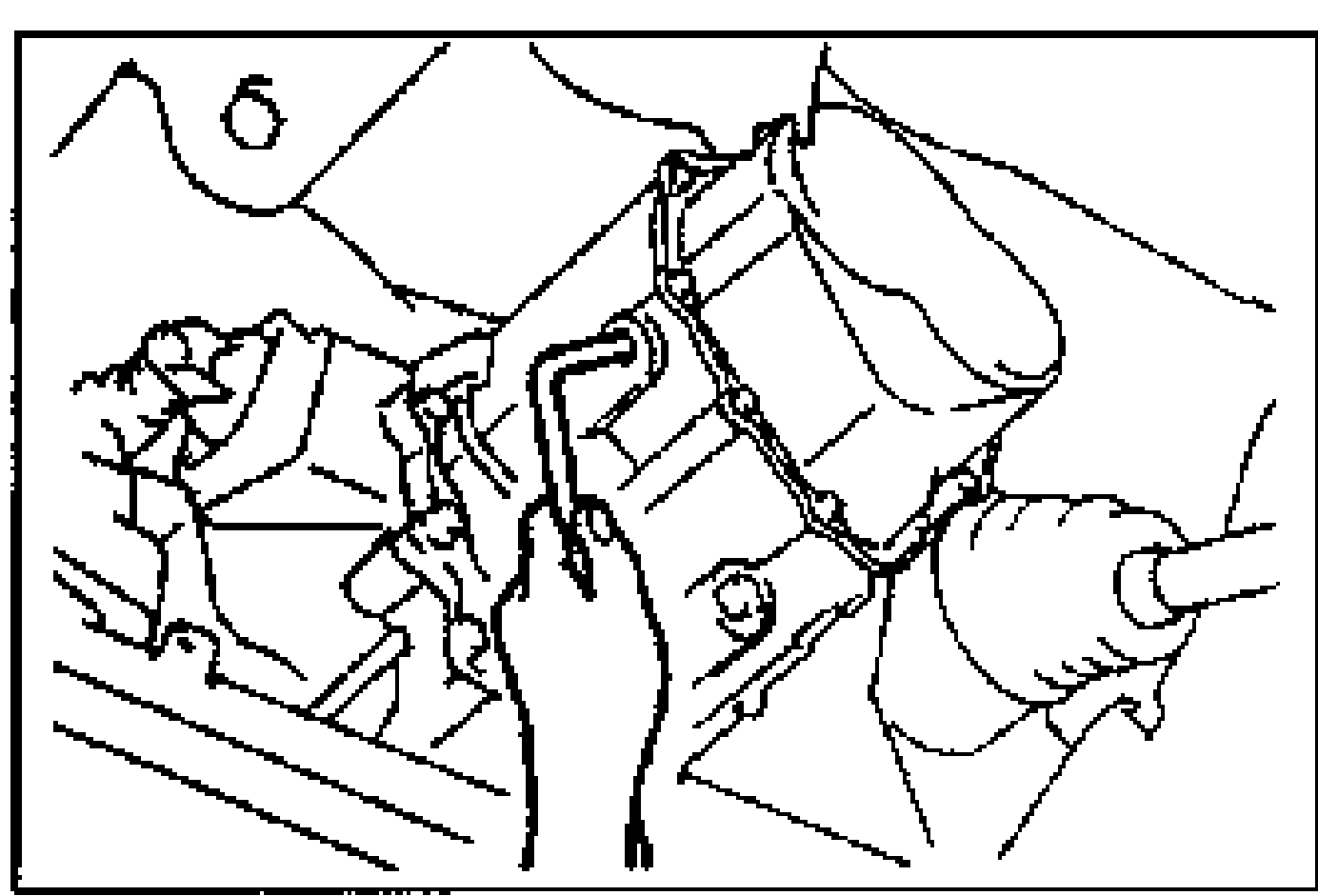

Insert the drive shaft and joint shaft to the transaxle. (Refer to page J2-46.)
8
Add the specified amount and type of oil. (Refer to page J2-7.)
