5th/Reverse Gear and Housing Parts (legend) and Assembly Notes

J2-43parts diagram

Manual transaxle (M/T) gear and housing parts.

5th/Reverse Gear and Housing Parts legend

No.	Part name	Assembly Note
1	Control rod
2	Control end
3	1st/2nd shift fork
4	Control lever
5	Interlock sleeve
6	3rd/4th shift fork
7	Clutch hub
8	Synchronizer key
9	Clutch hub sleeve
10	Synchronizer key spring
11	Clutch housing
12	Differential assembly
13	Secondary shaft gear assembly	below
14	Primary shaft gear assembly	below
15	Spring
16	Steel ball
17	Shift fork and control rod assembly	below
18	Crank lever assembly	page J2-44
19	Crank lever shaft	page J2-44
20	Pin
21	5th/reverse shift rod end	page J2-44
22	5th/reverse shift rod	page J2-44
23	Reverse idler gear	page J2-44
24	Reverse idler shaft	page J2-44
25	Magnet
26	Transaxle case assembly	page J2-45
27	Neutral switch
28	Back-up light switch
29	Lock bolt, ball and spring
30	Guide bolt and washer
31	Lock bolt
32	Secondary 5th gear	page J2-45
33	Gear sleeve
34	5th gear
35	5th synchronizer ring
36	5th/reverse clutch hub assembly	page J2-45
37	5th/reverse shift fork	page J2-45
38	Secondary reverse synchronizer gear
39	Reverse synchronizer ring
40	Primary reverse synchronizer gear
41	Locknut (secondary shaft)	page J2-45
42	Locknut (primary shaft)	page J2-45
43	Rear cover

Part nameControl rod

Assembly Note

Part nameControl end

Assembly Note

Part name1st/2nd shift fork

Assembly Note

Part nameControl lever

Assembly Note

Part nameInterlock sleeve

Assembly Note

Part name3rd/4th shift fork

Assembly Note

Part nameClutch hub

Assembly Note

Part nameSynchronizer key

Assembly Note

Part nameClutch hub sleeve

Assembly Note

Part nameSynchronizer key spring

Assembly Note

Part nameClutch housing

Assembly Note

Part nameDifferential assembly

Assembly Note

Part nameSecondary shaft gear assembly

Assembly Notebelow

Part namePrimary shaft gear assembly

Assembly Notebelow

Part nameSpring

Assembly Note

Part nameSteel ball

Assembly Note

Part nameShift fork and control rod assembly

Assembly Notebelow

Part nameCrank lever assembly

Assembly Notepage J2-44

Part nameCrank lever shaft

Assembly Notepage J2-44

Part namePin

Assembly Note

Part name5th/reverse shift rod end

Assembly Notepage J2-44

Part name5th/reverse shift rod

Assembly Notepage J2-44

Part nameReverse idler gear

Assembly Notepage J2-44

Part nameReverse idler shaft

Assembly Notepage J2-44

Part nameMagnet

Assembly Note

Part nameTransaxle case assembly

Assembly Notepage J2-45

Part nameNeutral switch

Assembly Note

Part nameBack-up light switch

Assembly Note

Part nameLock bolt, ball and spring

Assembly Note

Part nameGuide bolt and washer

Assembly Note

Part nameLock bolt

Assembly Note

Part nameSecondary 5th gear

Assembly Notepage J2-45

Part nameGear sleeve

Assembly Note

Part name5th gear

Assembly Note

Part name5th synchronizer ring

Assembly Note

Part name5th/reverse clutch hub assembly

Assembly Notepage J2-45

Part name5th/reverse shift fork

Assembly Notepage J2-45

Part nameSecondary reverse synchronizer gear

Assembly Note

Part nameReverse synchronizer ring

Assembly Note

Part namePrimary reverse synchronizer gear

Assembly Note

Part nameLocknut (secondary shaft)

Assembly Notepage J2-45

Part nameLocknut (primary shaft)

Assembly Notepage J2-45

Part nameRear cover

Assembly Note

Primary shaft gear assembly and secondary shaft gear assembly

Install the primary shaft gear assembly and the secondary shaft gear assembly together.

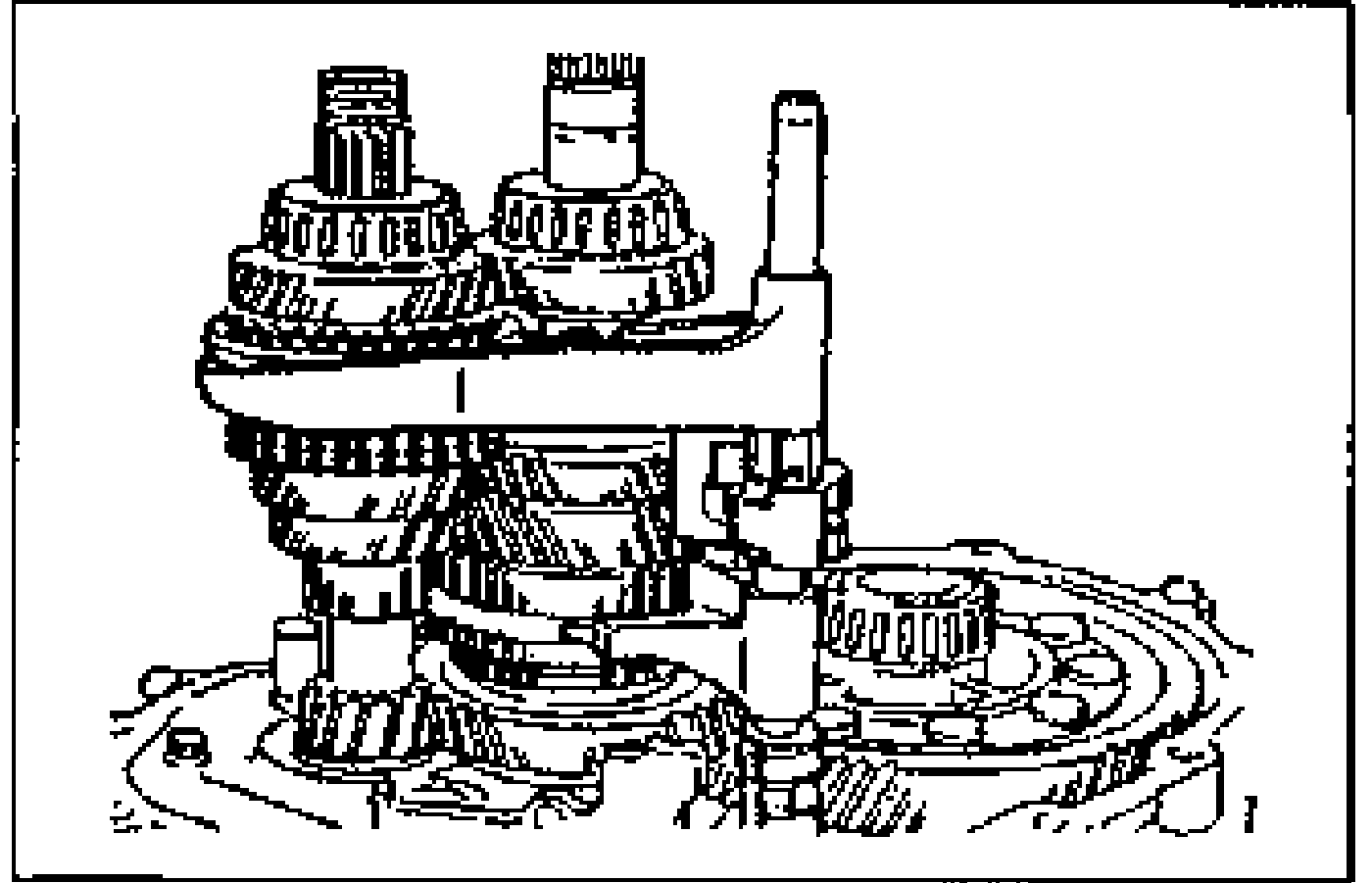

Shift fork and shift rod assembly

1
Shift to 2nd gear and position the shift fork and shift rod assembly as shown.
