TRANSAXLE OIL
J2-7prose procedureINSPECTION
- 1Park the vehicle on level ground.
- 2Remove the oil level plug and washer.
- 3Verify that the oil level is near the bottom of the plug port.
- 4If the oil level is low, add the specified amount and type of oil through oil level plug hole.
- 5Install a new washer and the oil level plug.Tightening torque: 40-58 N·m {4.0-6.0 kgf·m, 29-43 ft·lbf}
REPLACEMENT

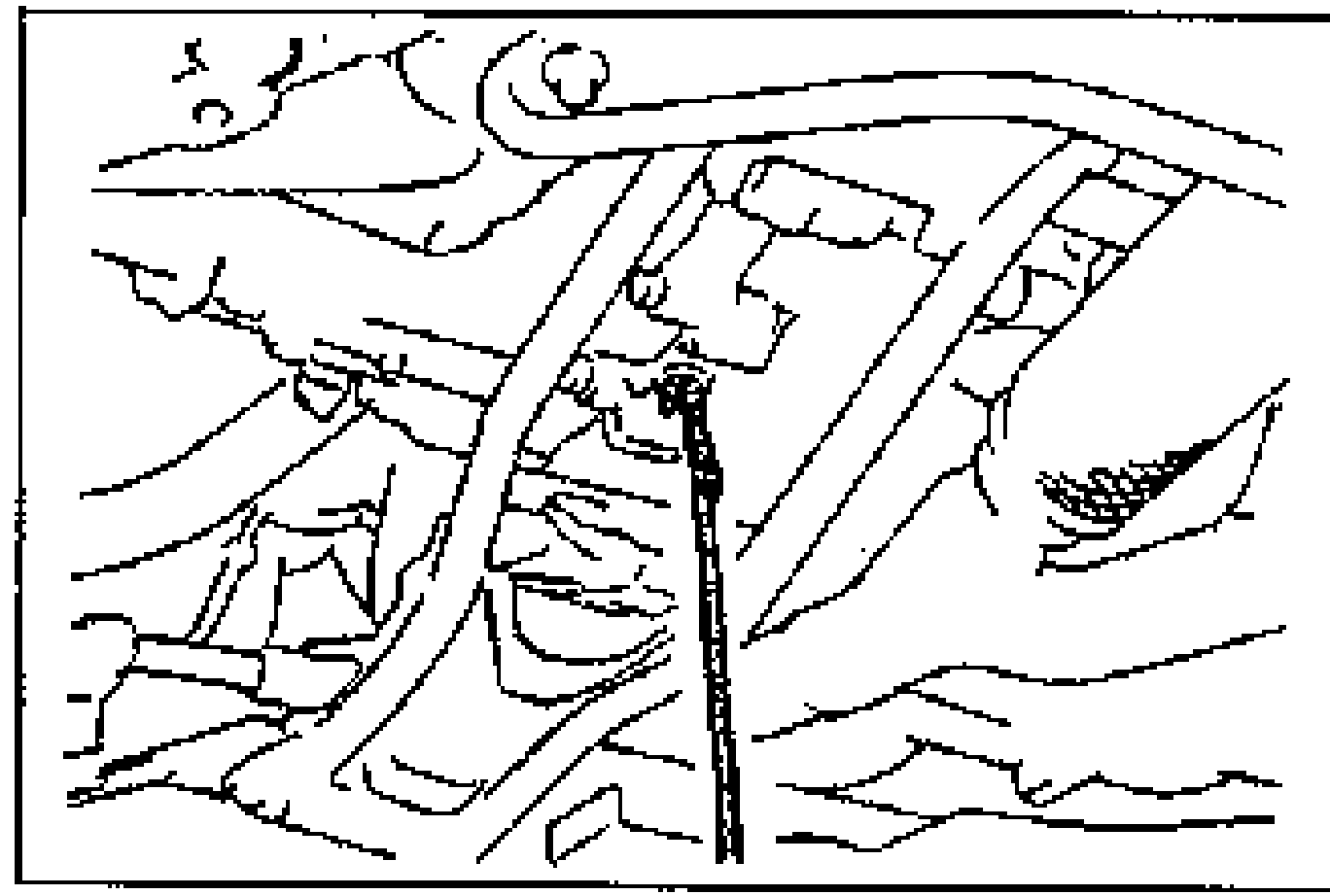

- 1Remove the drain plug and the washer.
- 2Drain the oil into a suitable container.
- 3Install a new washer and the drain plug.Tightening torque: 40-58 N·m {4.0-6.0 kgf·m, 29-43 ft·lbf}
- 4Remove the oil level plug and the washer. Add the specified amount and type of oil through the oil level plug hole until the level reaches the bottom of the oil level plug hole.Specified oil — Grade: API Service GL-4 or GL-5; Viscosity: All-season SAE 75W-90, Above 10°C {50°F} SAE 80W-90; Capacity: 2.70 L {2.85 US qt, 2.38 Imp qt}
- 5Install a new washer and the oil level plug.Tightening torque: 40-58 N·m {4.0-6.0 kgf·m, 29-43 ft·lbf}
| Specification | Value |
|---|---|
| Tightening torque (oil level plug){4.0-6.0 kgf·m, 29-43 ft·lbf} | 40-58N·m |
| Specified oil grade | API Service GL-4 or GL-5 |
| ViscosityAll-season | SAE 75W-90 |
| ViscosityAbove 10°C {50°F} | SAE 80W-90 |
| Capacity | 2.70 L {2.85 US qt, 2.38 Imp qt} |
Tightening torque (oil level plug){4.0-6.0 kgf·m, 29-43 ft·lbf}
40-58N·m
Specified oil grade
API Service GL-4 or GL-5
ViscosityAll-season
SAE 75W-90
ViscosityAbove 10°C {50°F}
SAE 80W-90
Capacity
2.70 L {2.85 US qt, 2.38 Imp qt}
