REAR AXLE — Removal/Installation Note (Brake pipe, Locknut) and Disassembly/Assembly
M-13prose procedureBrake pipe

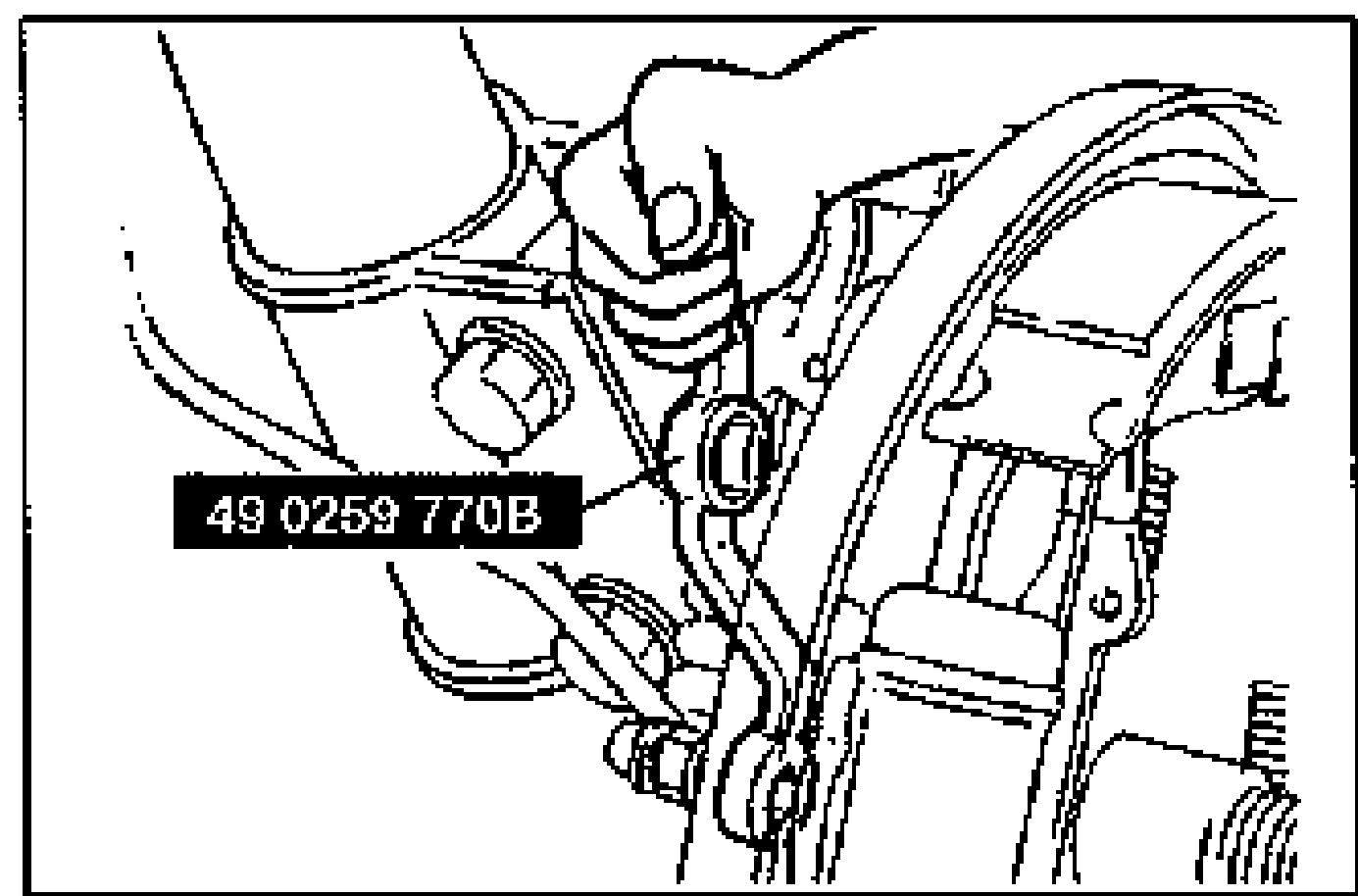

- 1Using the SST, disconnect the brake pipe.
- 2Plug the brake pipe to avoid fluid leakage.
Installation Note
Brake pipe
Using the SST, tighten the brake pipe.
| Specification | Value |
|---|---|
| Tightening torque (brake pipe) | 12.8 - 21.5N·m |
Tightening torque (brake pipe)
12.8 - 21.5N·m
Locknut
Install a new locknut and stake it, as shown.
| Specification | Value |
|---|---|
| Tightening torque (locknut) | 177 - 235N·m |
Tightening torque (locknut)
177 - 235N·m
Disassembly / Assembly
- 1Disassemble in the order shown in the figure, referring to Disassembly Note.
- 2Assemble in the reverse order of disassembly, referring to Assembly Note.
CAUTION
The wheel hub and bearing are one assembly and do not need to be disassembled.
Parts DiagramFig. fig4
