Condenser Fan System (K8 DOHC) — Harness Routing / Connector Locations (Circuit G-2)

Z-83wiring diagram

K8 DOHC condenser fan system harness routing (three-relay configuration).

Continued from Z-82

Condenser Fan System (K8 DOHC) — Harness Routing (G-2)

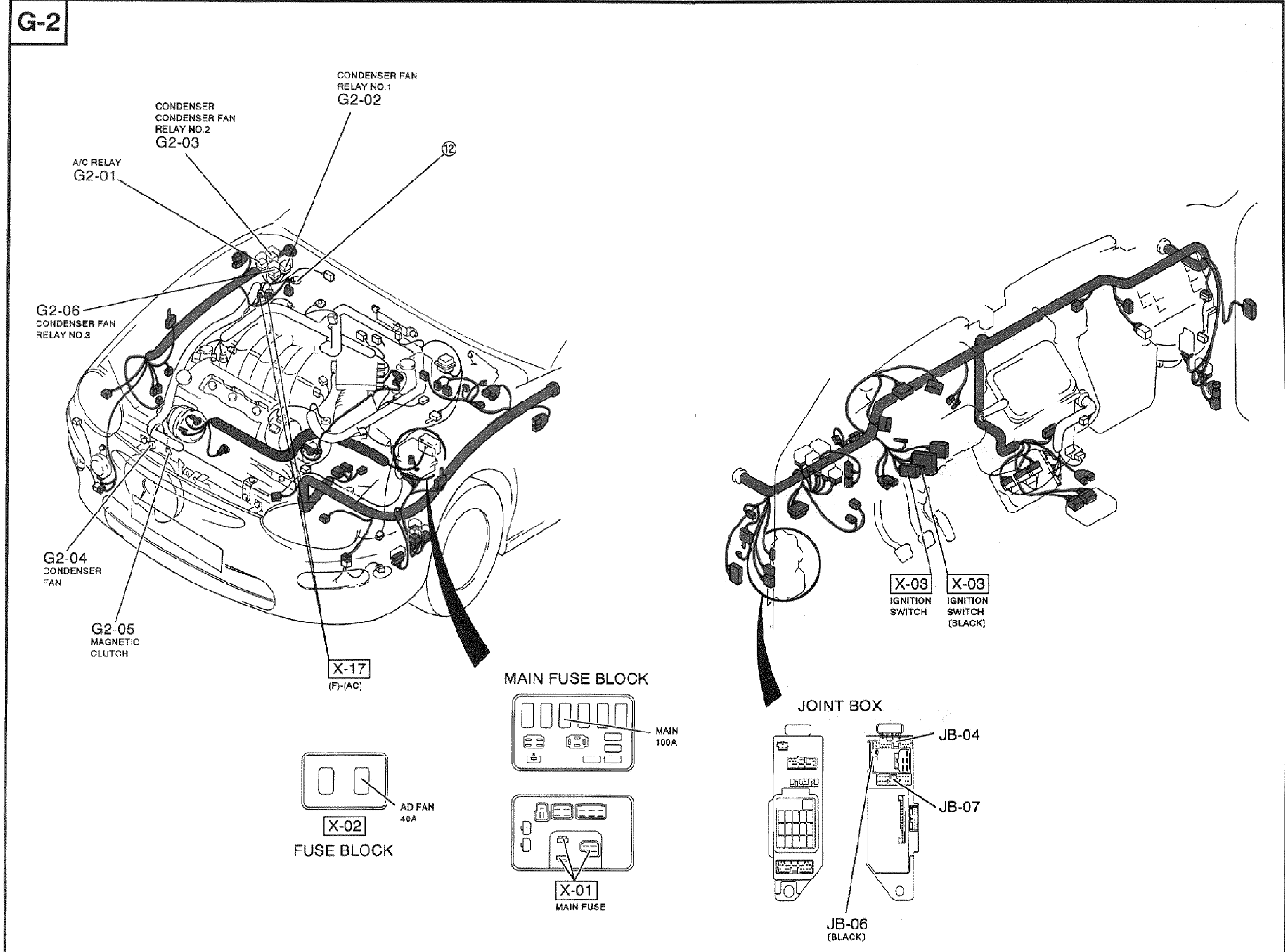

Component LocationFig. fig1

Connector and component locations for the K8 DOHC condenser fan system overlaid on the vehicle body.

Full-page harness-routing and connector-location diagram for the K8 DOHC Condenser Fan System (circuit G-2). Harness color legend at top: FRONT, ENGINE. Ghosted body outlines show the engine compartment (left) and instrument panel (right). Labeled connector/component locations: G2-01 A/C Relay, G2-02 Condenser Fan Relay No.1, G2-03 Condenser Fan Relay No.2, G2-06 Condenser Fan Relay No.3, G2-04 Condenser Fan, G2-05 Magnetic Clutch, X-17 (F-AC), Fuse Block with X-02 (AD FAN 40A), Main Fuse Block with X-01 Main Fuse (MAIN 100A), X-03 Ignition Switch and X-03 Ignition Switch (black), Joint Box with JB-04, JB-07, JB-06 (black). A balloon callout (12) marks an engine-bay junction.
G-2
1G2-01(Engine compartment — A/C Relay)
2G2-02(Engine compartment — Condenser Fan Relay No.1)
3G2-03(Engine compartment — Condenser Fan Relay No.2)
4G2-06(Engine compartment — Condenser Fan Relay No.3)
5G2-04(Condenser Fan (front))
6G2-05(Magnetic Clutch (front))
7X-17((F-AC) connector)
8X-02(Fuse Block (AD FAN 40A))
9X-01(Main Fuse Block — Main Fuse (MAIN 100A))
10X-03(Ignition Switch (one standard, one black))
11JB-04 / JB-06 / JB-07(Joint Box (lower right); JB-06 black)
